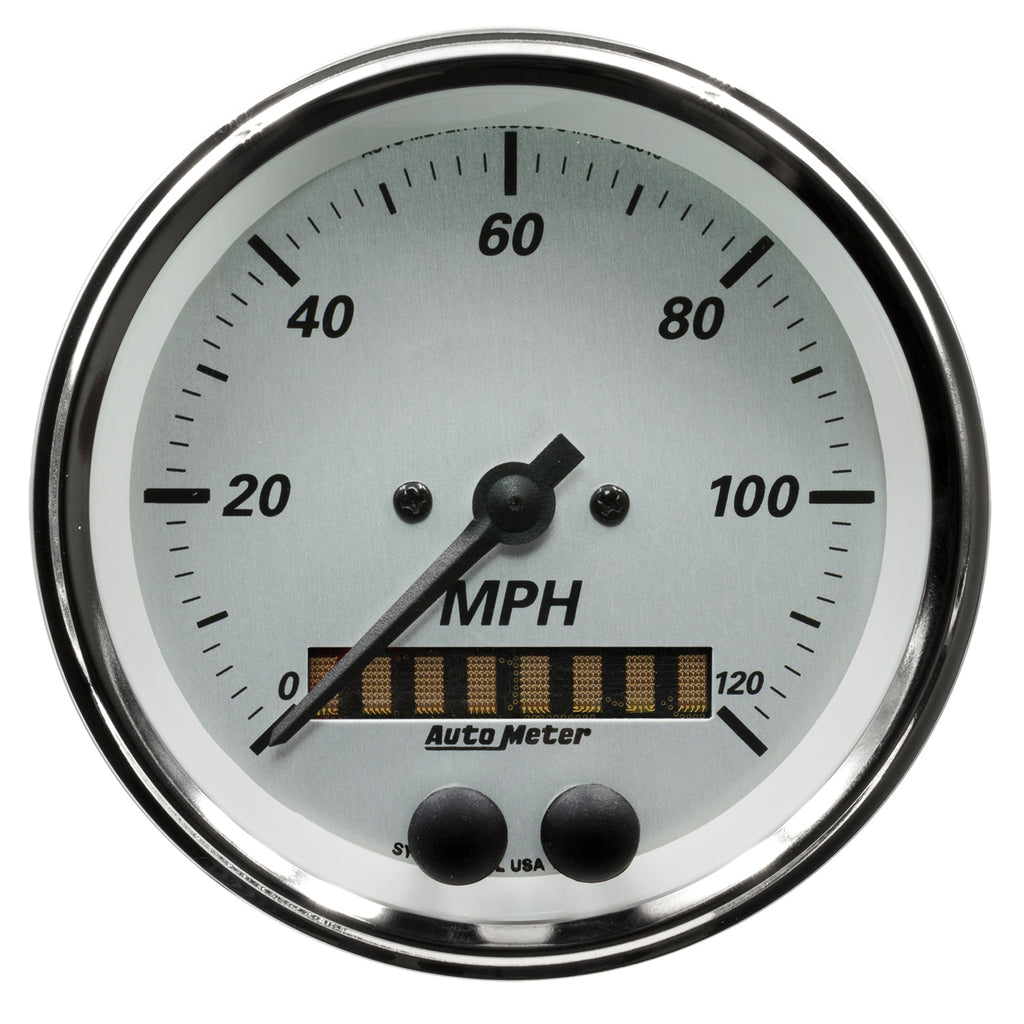

The latest in technology and the easiest possible way to add a highly accurate speedometer to your vehicle. AutoMeter’s advanced GPS Speedometers require no interface with your vehicle aside from power and ground. Their ultra fast, omnidirectional micro antenna is included for true plug and play functionality and never requires calibration. Configurable Rally Nav display shows odometer, trip odometer, time/date, GPS coordinates, heading info, compass, and peak speed recall. Quite simply, the easiest, most accurate speedometer available.
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Gauge kit includes GPS antenna, spade connectors for wiring, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Display features: Time/Date, Cumulative Distance (odometer), Trip Distance (tripmeter), GPS Coordinates with Heading Info, Compass, and Peak Speed Recall
- These highly accurate GPS Speedometers include an omnidirectional 10 Hz antenna (10 samples per second) with a 16ft. cable, which is required for operation
- The dimensions for the antenna are quite small (1.472 in. x 1.339 in. x 0.508 in.) allowing it to be easily hidden. The GPS antenna utilizes up to 3 GPS satellites simultaneously and samples 10 times per second
- Utilizes up to 3 GPS satellites simultaneously and samples 10 times per second
- Plug and Play, no calibration required!
- Features Vintage-Style Domed Lens.
- Features a digital odometer with two user selectable tripmeters
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074019494
- Bezel Color: Nickel
- Bezel Style: Street Rod
- Cross Sell: 5203, 5204
- Cup/Hole Size - Metric - MM: 85.7mm
- Cup/Hole Size - Standard - IN: 3-3/8"
- Dial Color: Silver
- Gauge Type: GPS Speedometer
- Includes Bulb & Socket: 3212
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: Bracket Included
- Lens Style: Domed, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Electric, Air-Core
- Outer Bezel Diameter: 3-3/4"
- Outer Bezel Diameter - Standard: 3-3/8"
- Pointer Color: Black
- Range: 0-120 MPH
- Related Item: 2160, BEX-1500, EP-800, 0423XL
- Series: AMERICAN PLATINUM
- Size - Metric - MM: 85.7mm
- Size - Standard - IN: 3-3/8"
- Upsell: 5203, 5204
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 6.25 x 6 x 6.25 inches
- Weight: 1.25 POUNDS
