The latest in technology and the easiest possible way to add a highly accurate speedometer to your vehicle. AutoMeter’s advanced GPS Speedometers require no interface with your vehicle aside from power and ground. Their ultra fast, omnidirectional micro antenna is included for true plug and play functionality and never requires calibration. Configurable Rally Nav display shows odometer, trip odometer, time/date, GPS coordinates, heading info, compass, and peak speed recall. Quite simply, the easiest, most accurate speedometer available.
- Highly polished chrome bezel
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Gauge kit includes GPS antenna, spade connectors for wiring, mounting hardware, and detailed instructions for installation
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Display features: Time/Date, Cumulative Distance (odometer), Trip Distance (tripmeter), GPS Coordinates with Heading Info, Compass, and Peak Speed Recall

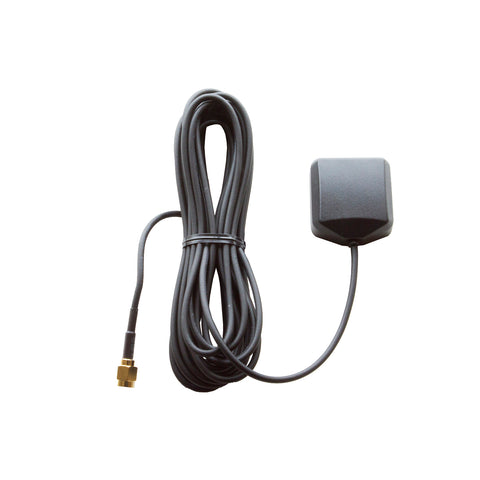

- These highly accurate GPS Speedometers include an omnidirectional 10 Hz antenna (10 samples per second) with a 16ft. cable, which is required for operation
- The dimensions for the antenna are quite small (1.472 in. x 1.339 in. x 0.508 in.) allowing it to be easily hidden. The GPS antenna utilizes up to 3 GPS satellites simultaneously and samples 10 times per second
- Utilizes up to 3 GPS satellites simultaneously and samples 10 times per second
- Plug and Play, no calibration required!
- Features Vintage-Style Domed Lens.
- Features a digital odometer with two user selectable tripmeters
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074012815
- Bezel Color: Chrome
- Bezel Style: Super Bezel
- Cross Sell: 1299, 1236, 1226, 1294, 1217, 9114
- Cup/Hole Size - Metric - MM: 127mm
- Cup/Hole Size - Standard - IN: 4-5/8"
- Dial Color: Silver
- Gauge Type: GPS Speedometer
- Includes Sensor Unit: 5283
- Lens Style: Flat, Clear
- Lighting Color: White
- Lighting Type: LED
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 4-15/16"
- Outer Bezel Diameter - Standard: 4-5/8"
- Pointer Color: Fluorescent Red
- Range: 0-140 MPH
- Related Item: 2160, BEX-3000, EP-800, 0423XL
- Series: AMERICAN MUSCLE
- Size - Metric - MM: 127mm
- Size - Standard - IN: 5"
- Upsell: 1299, 1236, 1226, 1294, 1217, 9114
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 6.25 x 6 x 6.25 inches
- Weight: 1.35 POUNDS
