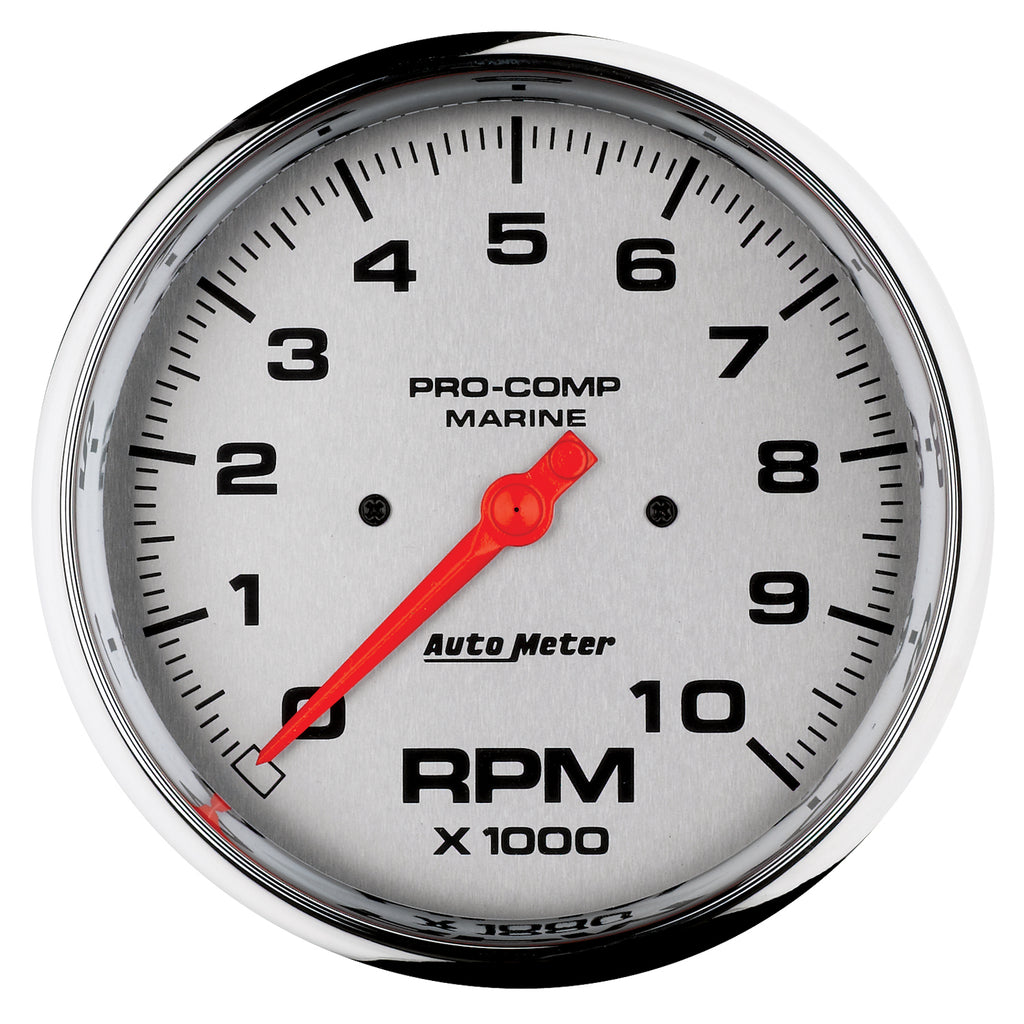

Since 1957, AutoMeter has set the standard in performance, accuracy and durability with their legendary Tachometers. The absolute pinnacle of engineering and technology, it’s no wonder AutoMeter can lay claim to more motorsports victories than every other gauge manufacturer combined. The patented air core meter movement, wound in house to exacting standards, can move the needle from 0 - 10,000 rpm in 333 milliseconds. An inaugural inductee to the Hot Rod Speed Parts Hall of Fame, no other tachometer on the market has had anything approaching its impact on professional racing. Built for a lifetime of service under the harshest conditions, this is the no compromise tach for no compromise builds. When you’re ready for the best, there isn’t another choice.
- Highly polished chrome bezel
- Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
- 12 and 16 volt compatible, well-suited with nearly every marine electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven air-core electric tachometers provide quick and accurate readings with a needle so responsive it can go from 0 - full scale in 333 milliseconds
- Compatible with 2, 3, 4, 6 pulse ignition signals (4, 6, 8 cylinder and V6 outboard engines) with points, electronic, and most 12V high-performance racing ignitions.
- 12 month limited warranty
- Traditional incandescent lighting illuminates around the perimeter of the dial
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074162015
- Bezel Color: Chrome
- Bezel Style: Super Bezel
- Cross Sell: 9117, 3288, 3284, 3285, 3286
- Cup/Hole Size - Metric - MM: 117.5mm
- Cup/Hole Size - Standard - IN: 4-5/8"
- Dial Color: Silver
- Gauge Type: In-Dash Tachometer
- Includes Bulb & Socket: 3220
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: YES
- Lens Style: Flat, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Electric, Air Core
- Outer Bezel Diameter: 4-15/16"
- Outer Bezel Diameter - Standard: 4-5/8"
- Pointer Color: Fluorescent Red
- Range: 0-10,000 RPM
- Related Item: BEX-5000, EP-800, 0447LXL, 0423XL
- Series: MARINE CHROME ULTRA-LITE
- Size - Metric - MM: 127mm
- Size - Standard - IN: 5"
- Upsell: 9117, 3288, 3284, 3285, 3286
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 6.25 x 6.25 x 5.25 inches
- Weight: 1.27 POUNDS
