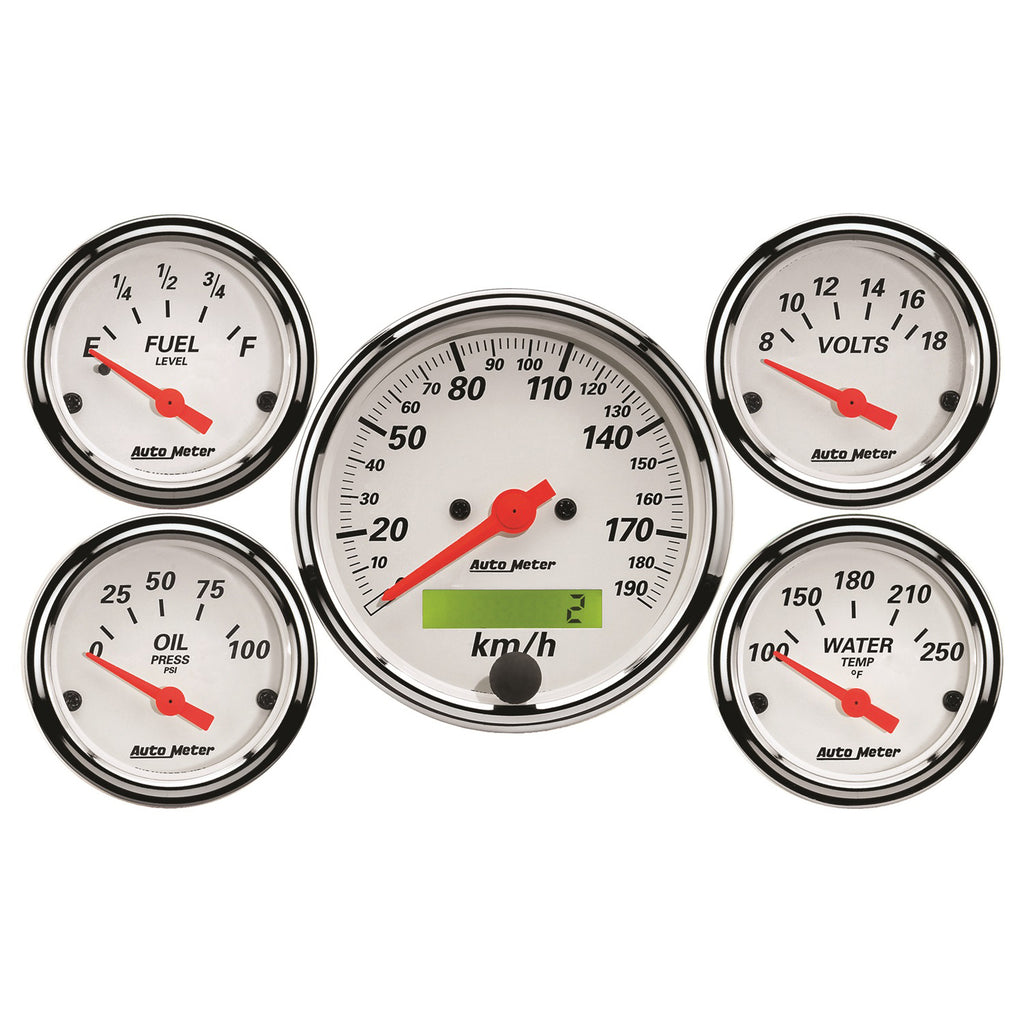

AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
- Highly polished chrome bezel
- Traditional incandescent lighting illuminates around the perimeter of the dial

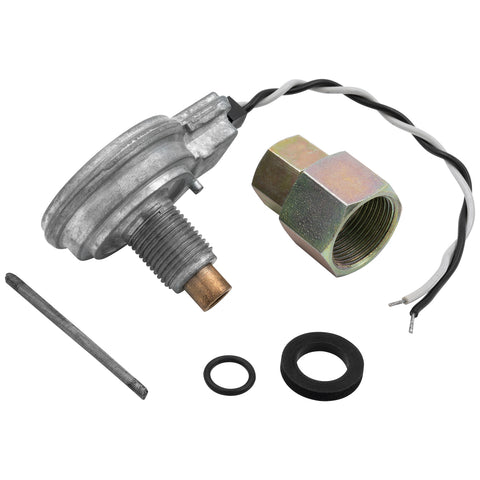

- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD)
- Sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074141645
- Bezel Color: Chrome
- Bezel Style: Street Rod
- Cross Sell: 1398-00408, 2198, 5289, 5284, 3298, 3288
- Dial Color: White
- Gauge Type: 5 Piece Kit
- Includes Bulb & Socket: 3212 & 3220
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: Brackets Included
- Includes Sensor Unit: Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - VSS Sensor
- Lens Style: Domed, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Pointer Color: Fluorescent Red
- Range: 190 KPH/100 PSI/100-250 °F/8-18V/240OE-33OF
- Related Item: 0423XL, EP-800
- Series: ARCTIC WHITE
- Upsell: 1398-00408, 2198, 5289, 5284, 3298, 3288
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 8.75 x 17.75 x 4.5 inches
- Weight: 4.85 POUNDS
