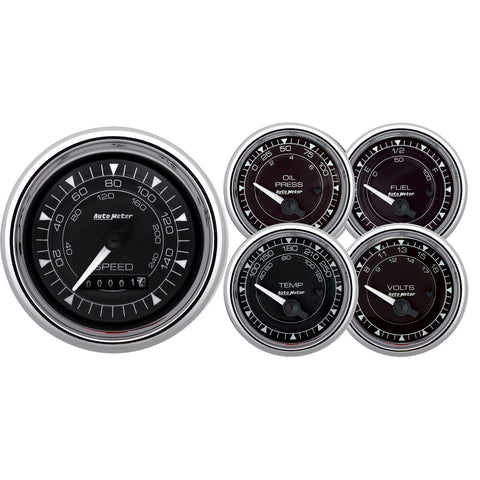

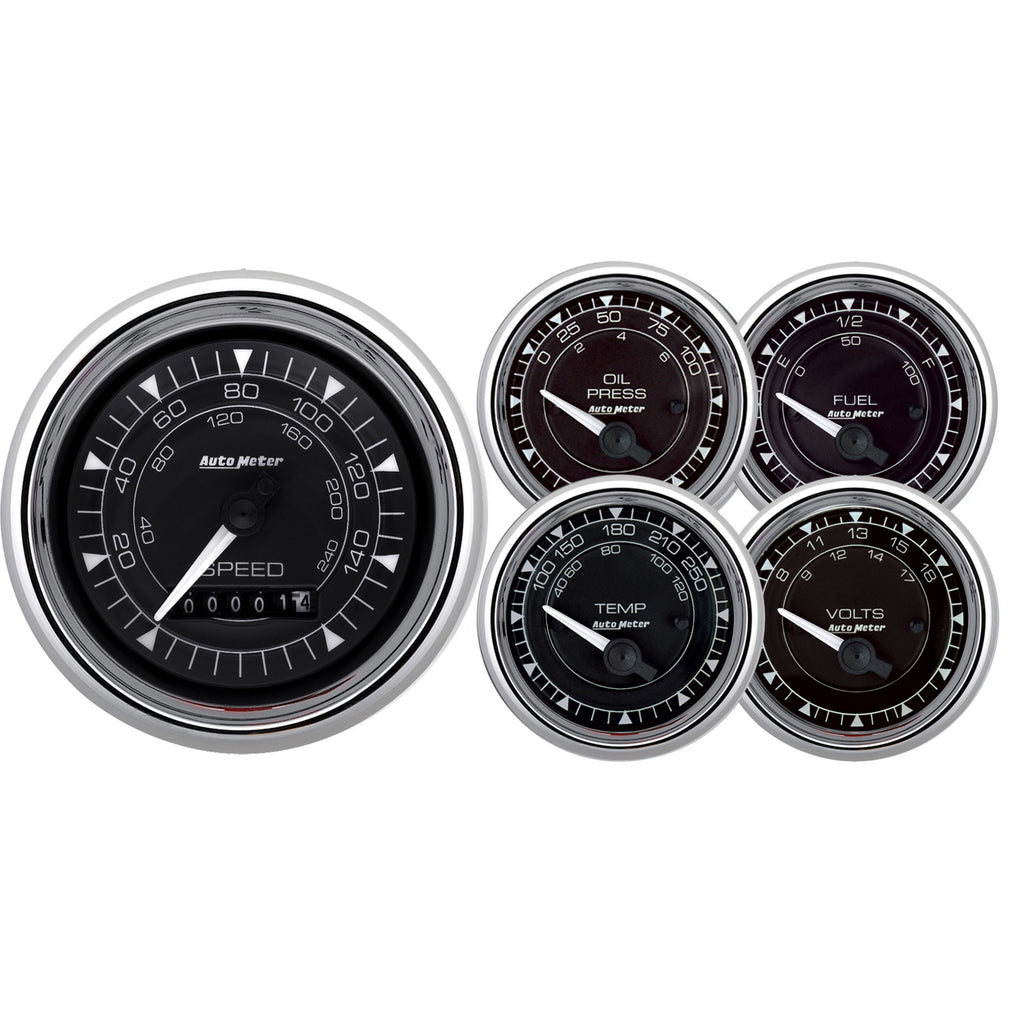

This five gauge kit is a convenient, all-in-one solution that includes an electric speedometer, fuel, oil, water, and volt gauges with a unique three-dimensional dial design that gives added depth and style to your custom dash.
- Highly polished chrome bezel
- Convenient and cost-effective kit includes short sweep electric fuel level, oil pressure, water temperature, and volt gauges with full sweep electric speedometer
- Unique three-dimensional beveled dials with modern white LED illumination and flush mounted windows
- Kit includes 2-wire GM style VSS, as well as sending units for fuel level (240E/33F), oil pressure, water temperature, and sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters)
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074097089
- Bezel Color: Chrome
- Bezel Style: Super Bezel
- Cross Sell: 2198, 9797, 9114, 5284, 5289
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Black
- Gauge Type: 5 Piece Kit
- Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
- Includes Mounting Hardware: Brackets Included
- Includes Sensor Unit: Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - VSS Sensor
- Lens Style: Flat, Clear
- Lighting Color: White
- Lighting Type: LED
- Movement: Electric, Air-Core
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: White
- Range: 160 MPH/100 PSI/100-250 °F/8-18V/240OE-33OF
- Related Item: 2160, BEX-3000, EP-800, 0423XL
- Series: CHRONO
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 2198, 9797, 9114, 5284, 5289
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 8.75 x 17.75 x 4.5 inches
- Weight: 4.85 POUNDS
