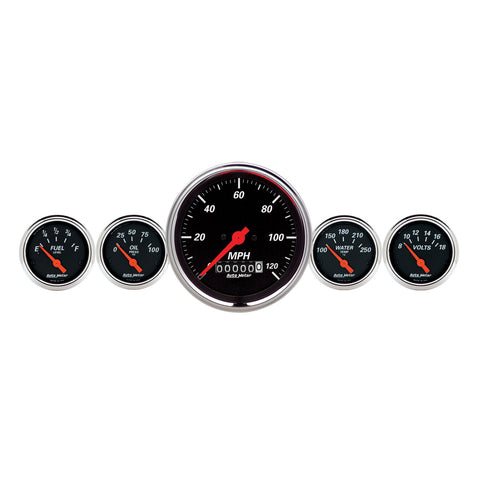

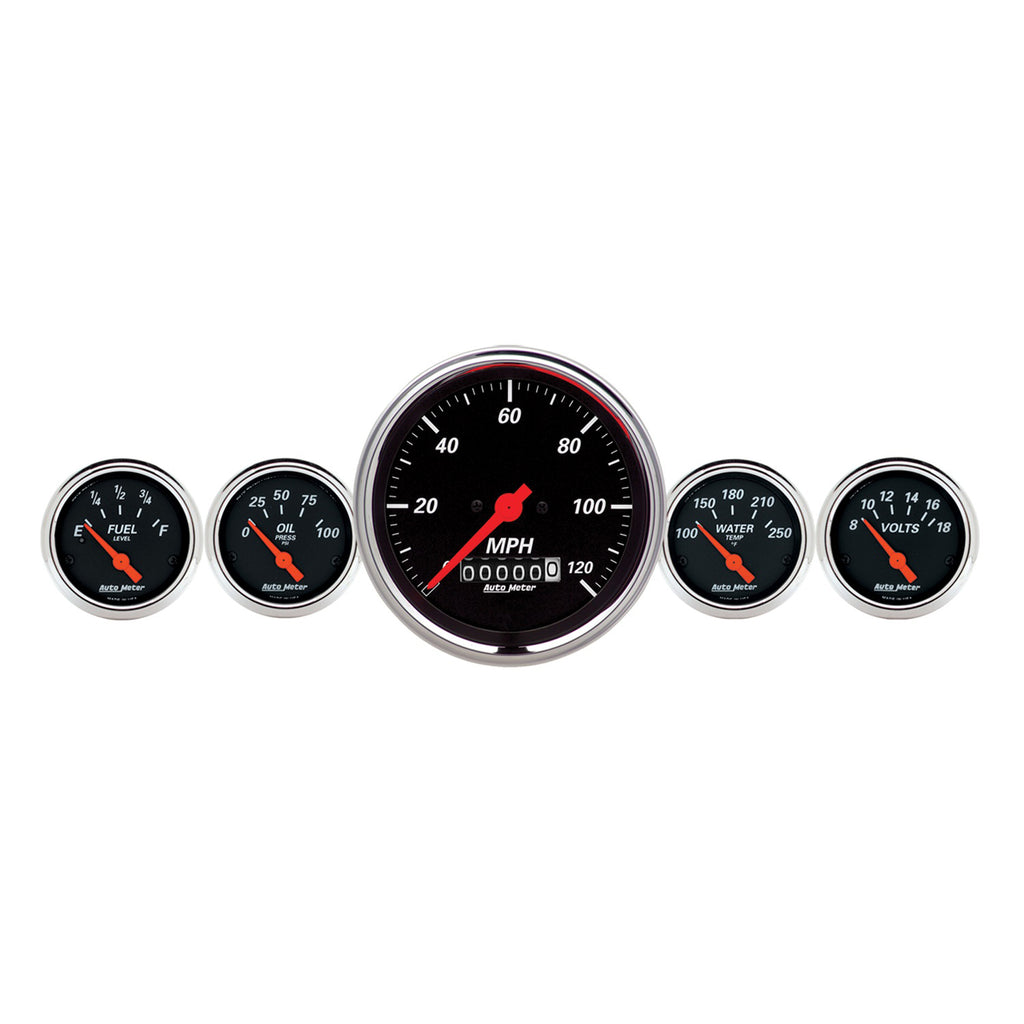

AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
- Highly polished chrome bezel
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD)
- Sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), bulb and socket assemblies, mounting hardware, and detailed instructions for installation.
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Traditional rolling drum odometer which can register up to 100,000 miles.
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074014406
- Bezel Color: Chrome
- Bezel Style: Street Rod
- Cross Sell: 3263, 2282, 2277, 2268, 2259, 3288
- Dial Color: Black
- Gauge Type: 5 Piece Kit
- Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, 3/8" NPT and 1/2" NPT adapter fittings.
- Includes Bulb & Socket: 3219 & 3220
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: Brackets Included
- Includes Sensor Unit: Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - VSS Sensor
- Lens Style: Domed, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Electric, Air-Core
- Pointer Color: Fluorescent Red
- Range: 120 MPH/100 PSI/100-250 °F/8-18V/240OE-33OF
- Related Item: 2160, BEX-1500, EP-800, 0423XL
- Series: DESIGNER BLACK
- Upsell: 3263, 2282, 2277, 2268, 2259, 3288
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 8.75 x 17.75 x 4.5 inches
- Weight: 4.85 POUNDS
