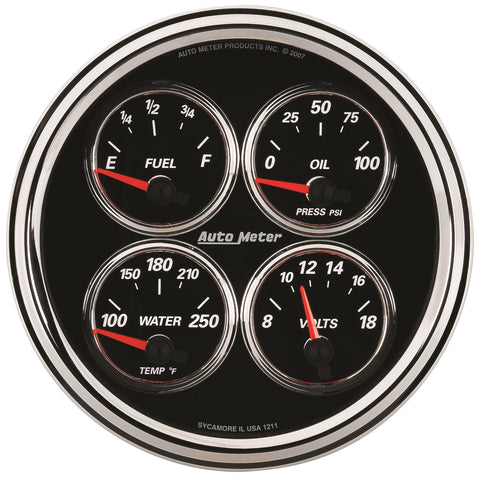

5" QUAD GAUGE 100 PSI/100-250 °F/8-18V/240-33 O DESIGNER BLACK II
5" QUAD GAUGE 100 PSI/100-250 °F/8-18V/240-33 O DESIGNER BLACK II
5" QUAD GAUGE 100 PSI/100-250 °F/8-18V/240-33 O DESIGNER BLACK II
5" QUAD GAUGE 100 PSI/100-250 °F/8-18V/240-33 O DESIGNER BLACK II

5" QUAD GAUGE 100 PSI/100-250 °F/8-18V/240-33 O DESIGNER BLACK II

  • Sale
  • $349.21

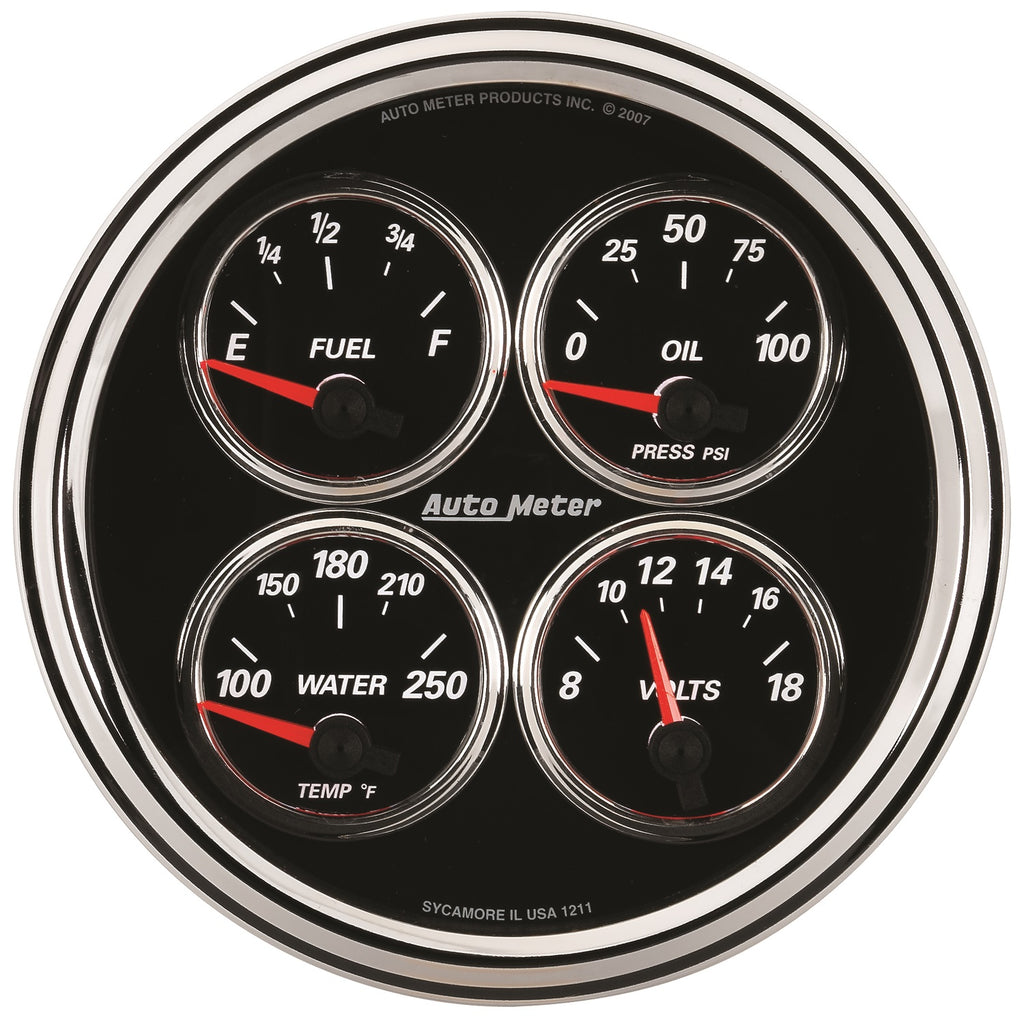

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).
  • Highly polished chrome bezel
  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation

Attributes:

  • Brand Name: AutoMeter
  • GTIN: 00046074012112
  • Bezel Color: Chrome
  • Bezel Style: Street Rod
  • Cross Sell: 9114, 3262, 3299, 5284, 9114, 3263
  • Cup/Hole Size - Metric - MM: 117.5mm
  • Cup/Hole Size - Standard - IN: 4-5/8"
  • Dial Color: Black
  • Gauge Type: Quad Gauge
  • Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
  • Includes Mounting Hardware: Bracket Included
  • Includes Sensor Unit: Oil Sender 2242 - Water Sender 2258
  • Lens Style: Domed, Clear
  • Lighting Color: White
  • Lighting Type: LED
  • Movement: Electric, Air-Core
  • Outer Bezel Diameter: 4-15/16"
  • Outer Bezel Diameter - Standard: 4-5/8"
  • Pointer Color: Fluorescent Red
  • Range: 100 PSI/100-250 °F/8-18V/240OE-33OF
  • Related Item: 2160, BEX-3000, EP-800, 0423XL
  • Series: DESIGNER BLACK II
  • Size - Metric - MM: 127mm
  • Size - Standard - IN: 5"
  • Upsell: 9114, 3262, 3299, 5284, 9114, 3263

Extended Information:

  • Country of Origin: US
  • Emissions : CARB Eligible

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 6 x 6 x 5 inches
  • Weight: 1.75 POUNDS
