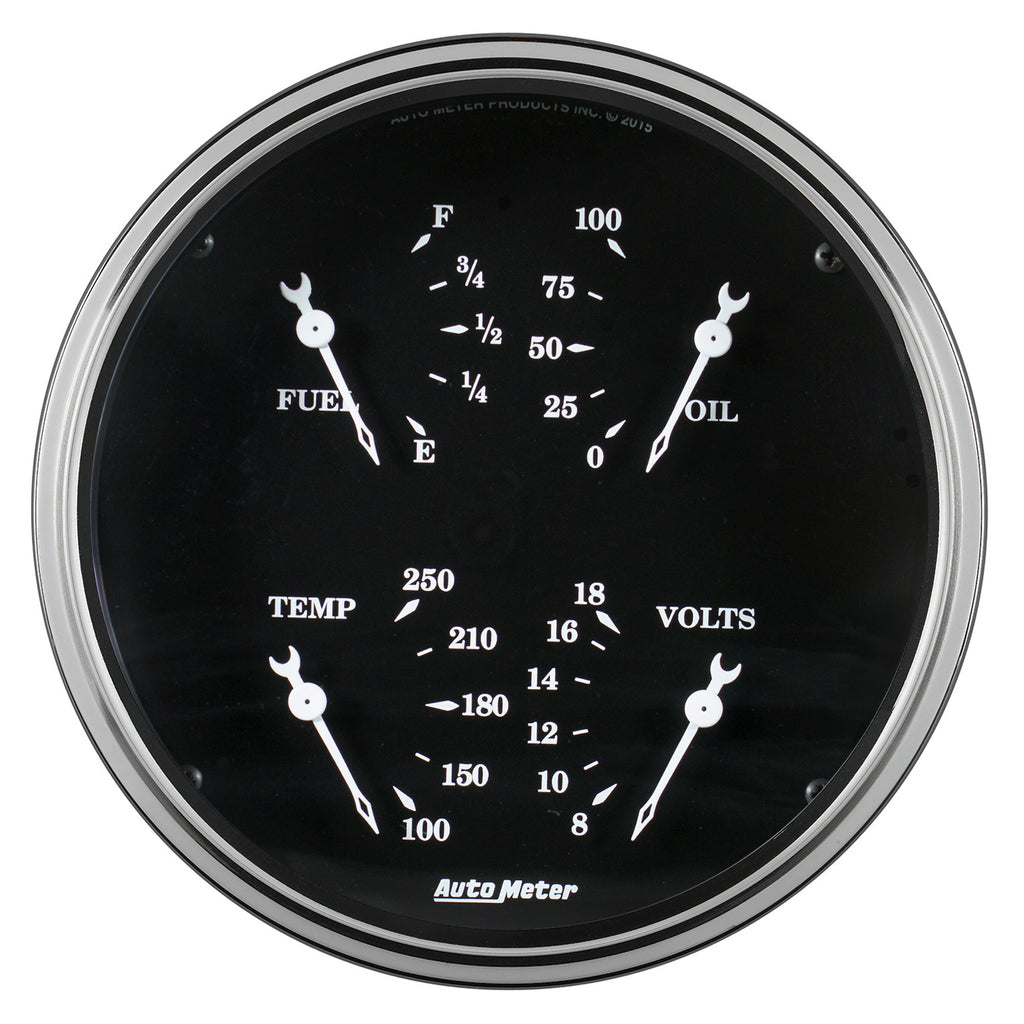

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).
- Highly polished chrome bezel
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- Gauge kit includes 1/8 NPT pressure sender, 1/4 NPT adapter, 1/8 NPT temperature sender, 3/8 and 1/2 NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074017100
- Bezel Color: Chrome
- Bezel Style: Street Rod
- Cross Sell: 3262, 3263, 2282, 2268, 2277, 3288
- Cup/Hole Size - Metric - MM: 117.5mm
- Cup/Hole Size - Standard - IN: 4-5/8"
- Dial Color: Black
- Gauge Type: Quad Gauge
- Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
- Includes Bulb & Socket: 3212
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: Brackets Included
- Includes Sensor Unit: Oil Sender 2242 - Water Sender 2258
- Lens Style: Domed, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Movement: Electric, Air-Core
- Outer Bezel Diameter: 4-15/16"
- Outer Bezel Diameter - Standard: 4-5/8"
- Pointer Color: White
- Range: 100 PSI/100-250 °F/8-18V/240OE-33OF
- Related Item: 2160, BEX-1500, EP-800, 0423XL
- Series: OLD TYME BLACK
- Size - Metric - MM: 127mm
- Size - Standard - IN: 5"
- Upsell: 3262, 3263, 2282, 2268, 2277, 3288
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 6 x 6 x 5.25 inches
- Weight: 1.85 POUNDS
