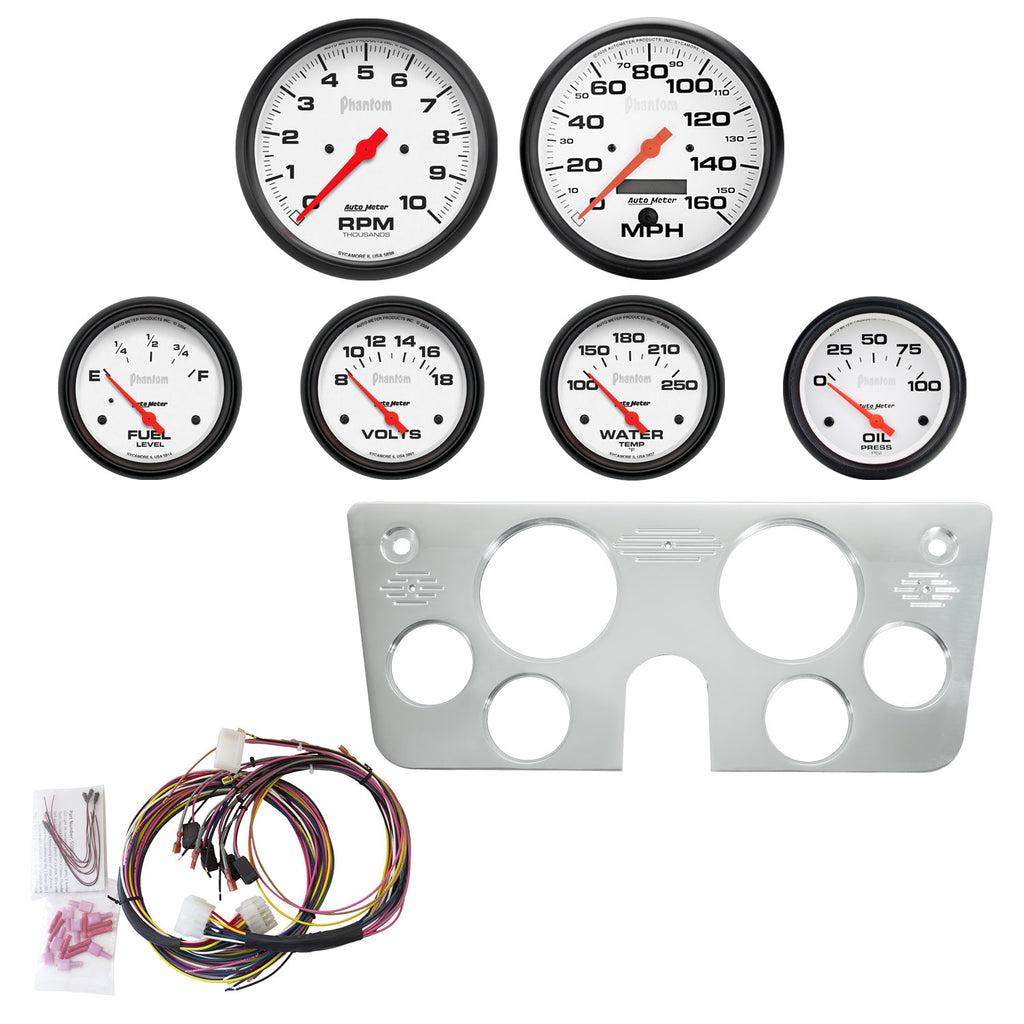

Outfit your 1967-1972 Chevrolet Truck with an AutoMeter direct-fit gauge kit that provides a custom performance instrumentation solution without the custom fab price! These easy-to-install kits include a set of iconic AutoMeter gauges, precision engineered direct-fit dash panel, wiring harness, senders, and all the essentials needed to complete the installation. These AutoMeter complete package solutions simplify the process of gauge installation while providing a clean, timeless look. It has never been easier to add the precision and quality of AutoMeter gauges to your project.
- Direct Fit gauge dash panel replaces original instruments in 1967-1972 Chevrolet Trucks and accomodates 6 AutoMeter Phantom gauges.
- Kit contains universal 6 gauge wire harness, electric speed sender, 1/8" NPT water temp & oil pressure senders with 1/4", 3/8" & 1/2" NPT adapter fittings, 3 optional LED indicators (2 green, 1 amber), and installation instructions
- Machined from billet aluminum in polished finish with ball milled details. Gauges mount from front of plate.
- Pre-drilled to accept 3 LED lights (optional part #3283) for turn signals and high beam indicator.
- Includes 5" tachometer & speedometer and four 2 5/8" gauges - water temperature, oil pressure, fuel level, and volts.
- Direct fit replacement dash - no cutting or modification of original dash required
- Fuel level gauge is paired to factory / OEM fuel level sensor
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074178344
- Bezel Color: Black
- Bezel Style: Super Bezel
- Cross Sell: 5289, 5284, 9123, 5291
- Dial Color: White
- Gauge Type: Complete Instrument Kit
- Includes Adapter/Fitting: 2279, 2284, 2285
- Includes Bulb & Socket: 3220, 3212
- Includes Light Covers: Red 3214 & Green 3215
- Includes Mounting Hardware: Brackets Included
- Includes Sensor Unit: 2258, 2242, 5293
- Includes Wire Harness: 2198
- Lens Style: Flat, Clear
- Lighting Color: White Incandescent
- Lighting Type: Incandescent
- Mounting- Direct or Universal: Direct Fit
- Movement: Electric, Air-Core
- Pointer Color: Fluorescent Red
- Range: 10K RPM/160 MPH/100 PSI/100-250 °F/8-18V/0OE-90OF
- Related Item: 2160, BEX-1500, EP-800, 3283, 2198, 5289
- Series: PHANTOM
- Upsell: 5289, 5284, 9123, 5291
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 10.5 x 23 x 15.5 inches
- Weight: 13.25 POUNDS
