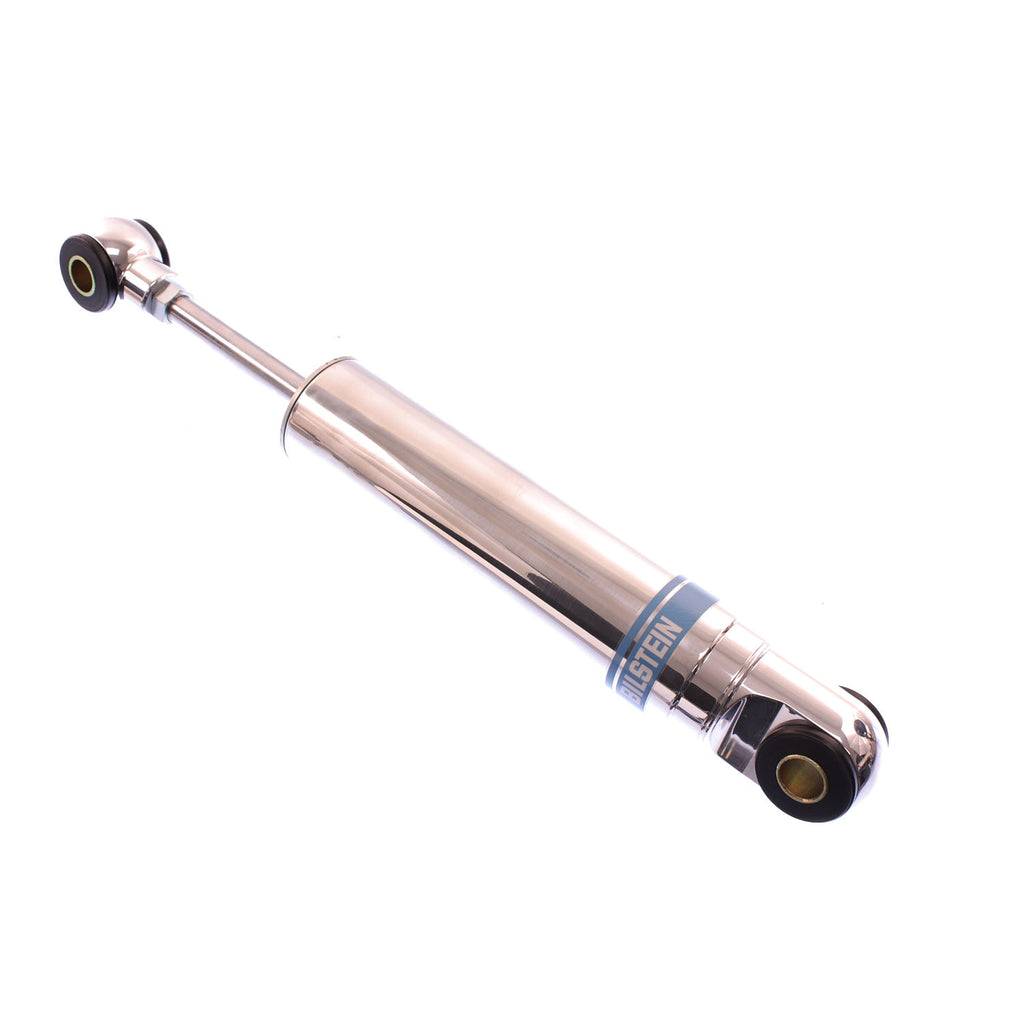

Bilstein SA4 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. SA4 Series shock absorbers feature a 46mm piston, smooth body, 5/8 inch polyurethane bushing mounts and various lengths and valve settings to choose from. Bilstein SA4 Series shock absorbers provide a wide range of options to support any custom street rod application need.
- Monotube design ensures consistent, fade-free performance in all conditions
- 46mm working piston
- One piece smooth design, show polished billet body
Attributes:
- Brand Name: Bilstein
- GTIN: 00790832515451
- Boot Included: No
- Collapsed Length (IN): 11.67
- Collapsed Length (MM): 296.5
- Compression @0.52m/s: 430
- Extended Length (IN): 15.16
- Extended Length (MM): 385.0
- Finish: Polished Aluminum
- Internal Design: Monotube
- Lower Mount Type: Eye 15.9mm
- PartType: Shocks / Struts
- Position: Rear
- Rebound @0.52m/s: 2200
- Recommended Mounting Length (IN): 13.50
- Segment: Tuning
- Series: SA4 Series
- Spring Seat Included: No
- Upper Mount Type: Eye 15.9mm
Extended Information:
- Country of Origin: US
- Emissions : 4
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 19.7500 x 5.2500 x 2.7500 inches
- Weight: 4.9100 POUNDS
