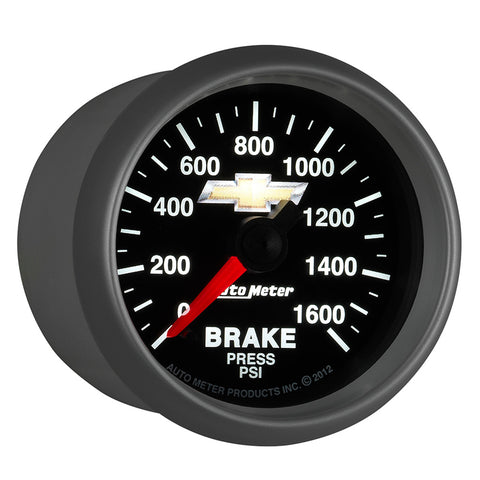

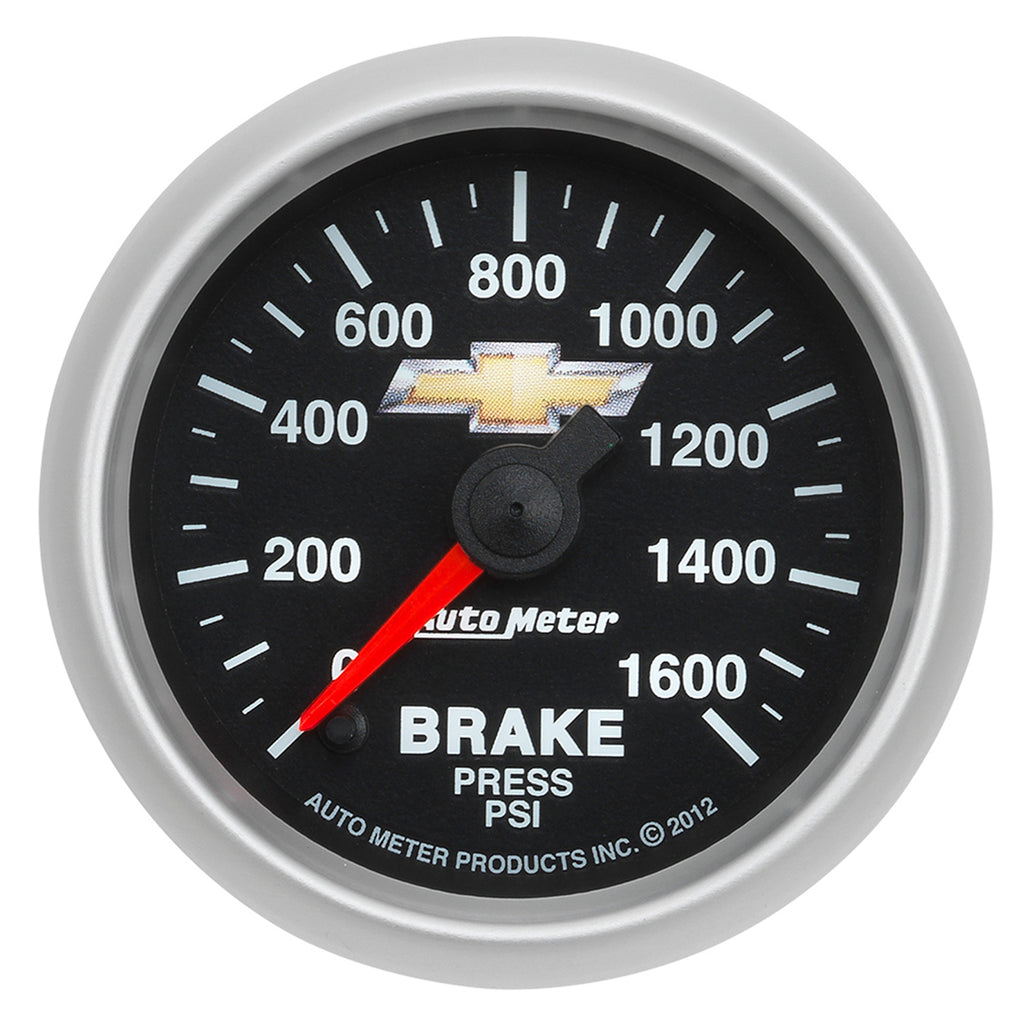

High brake system pressures make this an environment that few gauges are up to the task of handling. AutoMeter’s Digital Stepper Motor Brake Pressure Gauge provides not only the accuracy you expect from a top of the line instrument, but the durability you need under even the most demanding conditions. Includes a highly advanced 1/8” NPT Pressure Transducer and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output.
- Features Hi-Def™ through-the-dial white LED lighting
- Includes 8ft. Wiring Harness
- Includes 1/8" NPT Sender.
- Includes gauge mounting hardware and installation instructions
- Full sweep precision digital stepper motor meter movement
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074148453
- Bezel Color: Brushed Aluminum
- Bezel Style: Super Bezel
- Cross Sell: 880445, 880446, 880447, 880444, 880448, 880449
- Cup/Hole Size - Metric - MM: 52.4mm
- Cup/Hole Size - Standard - IN: 2-1/16"
- Dial Color: Black
- Gauge Type: Brake Pressure
- Includes Mounting Hardware: 2230
- Includes Sensor Unit: 2246
- Includes Wire Harness: 5227
- Lens Style: Flat, Clear
- Lighting Color: White
- Lighting Type: LED
- Movement: Electric, Digital Stepper Motor
- Outer Bezel Diameter: 2-1/4"
- Outer Bezel Diameter - Standard: 2-1/16"
- Pointer Color: Fluorescent Red
- Range: 0-1600 PSI
- Related Item: 2160, BEX-3000, EP-800, 0423XL
- Series: CHEVY GOLD BOWTIE
- Size - Metric - MM: 52.4mm
- Size - Standard - IN: 2-1/16"
- Upsell: 880445, 880446, 880447, 880444, 880448, 880449
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.75 x 4.5 x 4.5 inches
- Weight: 1 POUNDS
