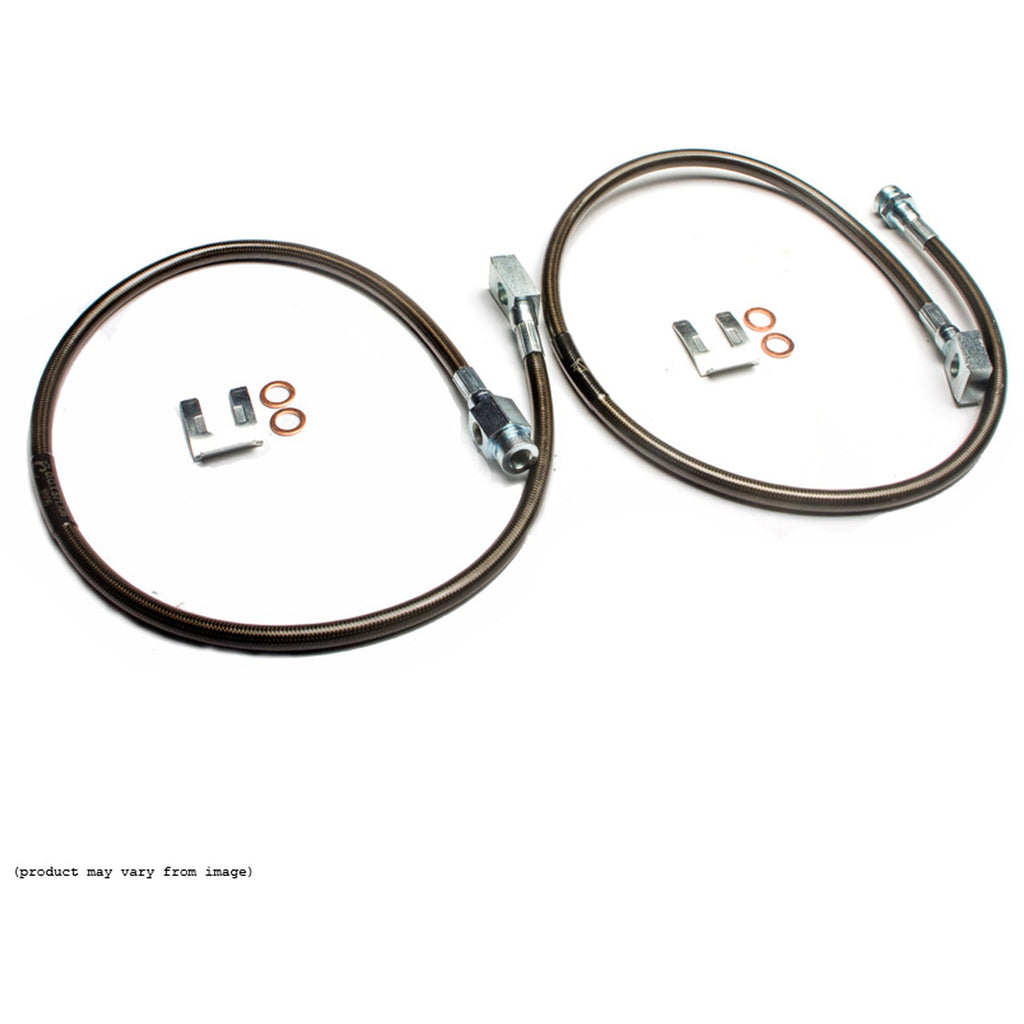

These are the same brake lines we use in our performance and long-travel kits. They are extended in length, Teflon-lined, stainless steel braided and Kevlar reinforced with an additional protective covering. Our brake lines are made up of 5 layers for optimum strength and every single one is pressure tested. We know our brake lines are used in extreme conditions and are getting hit, pulled on, etc. off-road so we cut no corners. They come with everything you need to mount to the factory calipers. Some '96-97 Rangers require the older '89-96 versions if they do not have 4 wheel ABS. You can tell if the truck doesn't have 4-Wheel ABS if the driver side brake line at the frame has a bulkhead with two hard lines coming into it. If there is no bulkhead and just a single line, then the truck has 4 wheel ABS. These are 29" in length. These are pressure tested to 4,500 psi and meet Federal D.O.T. MVSS-106 standards. '89-96 dual port driver side line 96-97 single port driver side line (4 wheel ABS).
- Teflon-lined
- 5-Layer Stainless Steel Braid
- Installs to OEM mounts and fittings
Attributes:
- Brand Name: Camburg
- GTIN: 00888563192666
- 754: 29
- 755: Teflon-Lined
- 922: Yes
- 7612: Disc
- 7874: 4500
- Outer Sheathing Material: Braided Stainless Steel
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Weight: 0 POUNDS
