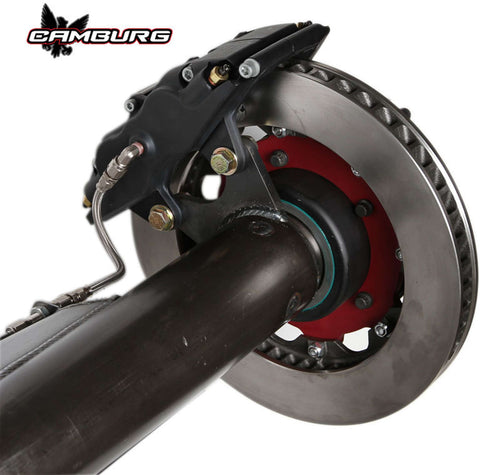

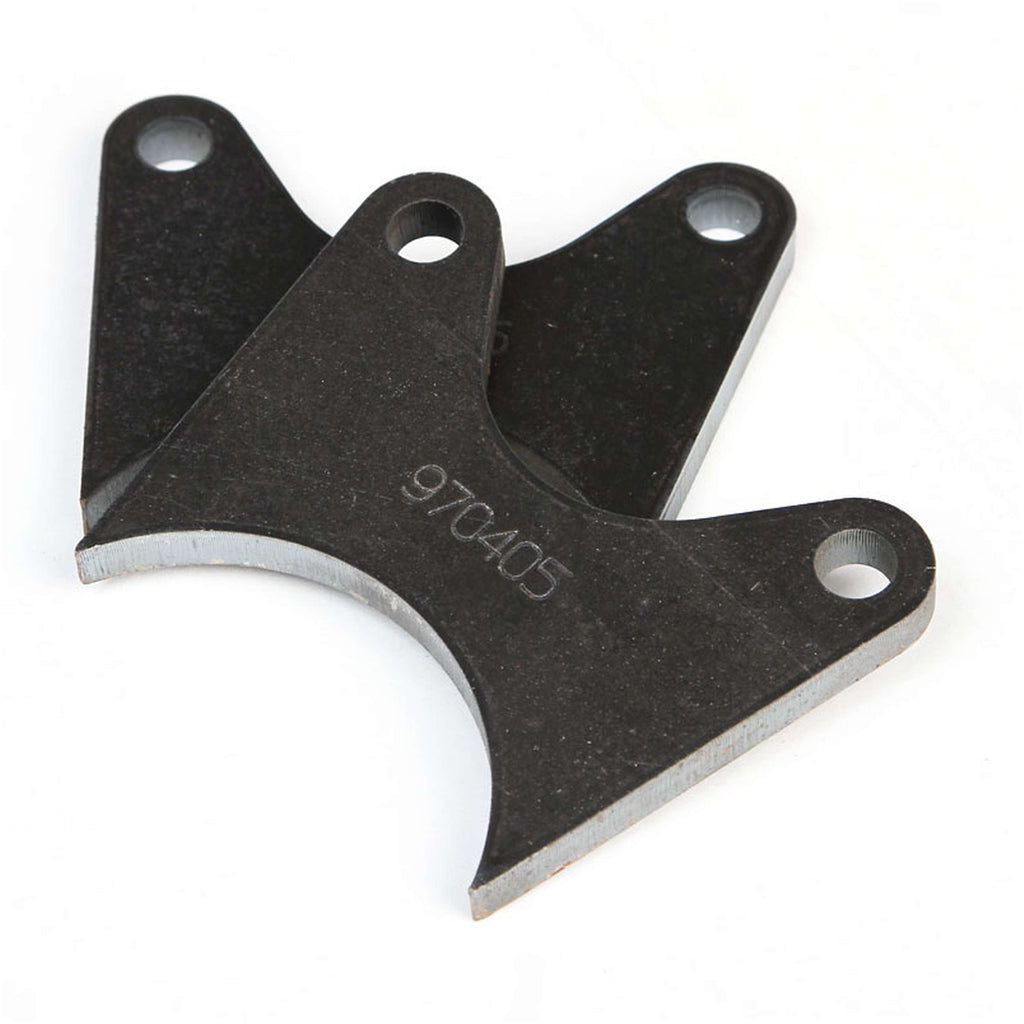

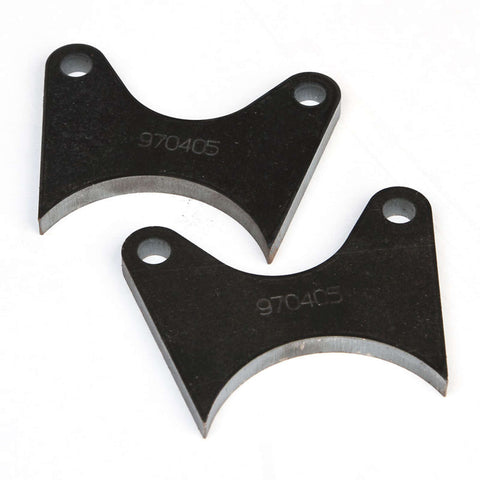

These are the brake caliper tabs we use when building a Camburg rear end. These are designed for Wilwood's 3.5" lug spacing. They also work with radial mount calipers with the proper machined adapters. These are CNC laser cut from thick 3/8" steel and are setup to be through bolted with a 7/16" bolt. These can be MIG or TIG welded. Select your axle housing tube size and the brake rotor diameter. These tabs work with the following calipers. Wilwood 4 Piston Superlite Wilwood 6 Piston Superlite with adapter #250-6309 Wilwood Aero6 with adapter #250-14046 Wilwood Aero6-ST with adapter #250-14046.
- 3/8" Steel
- CNC Laser cut
- Can be MIG or TIG welded
Attributes:
- Brand Name: Camburg
- GTIN: 00888563188461
- 30: No
- Bolt size: 0.4375
- Lug Spacing: 3.5
- Material: Steel
- Rotor Size: 13
- Thickness: 3/8
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Weight: 0 POUNDS
