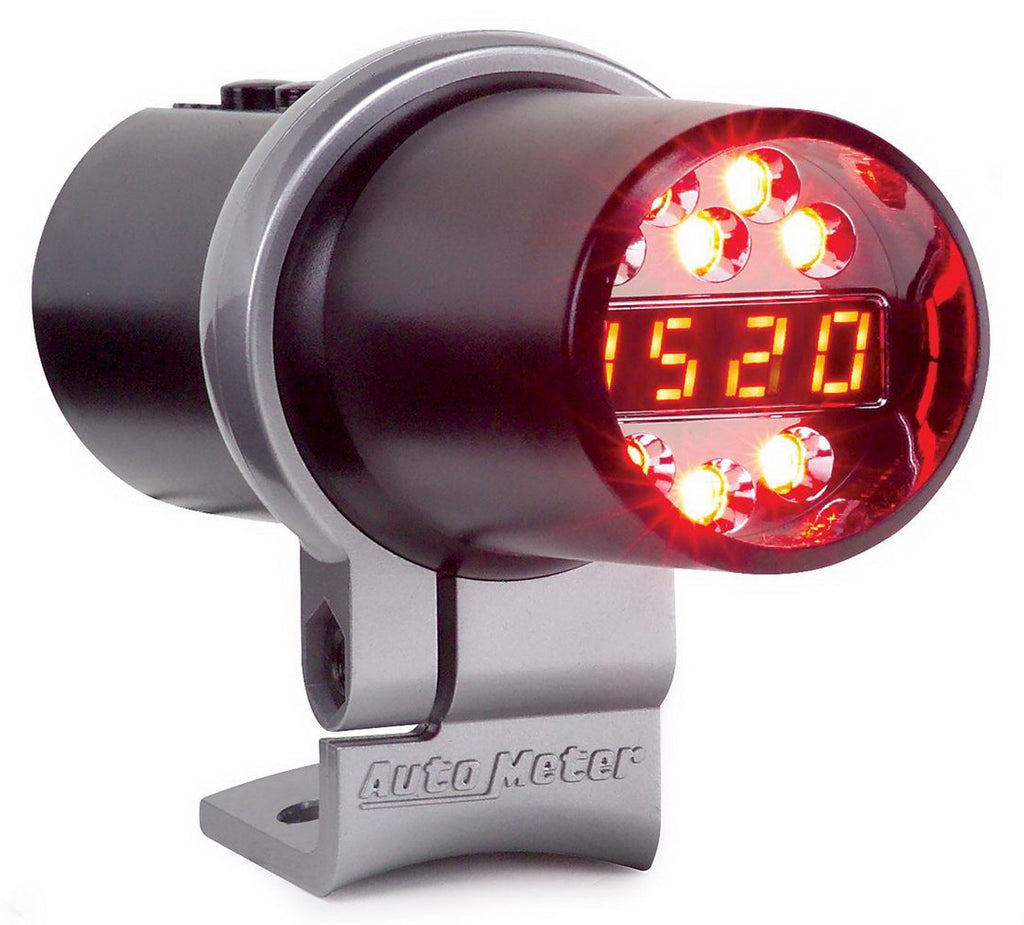

Tube-style shift light, w/ innovative AIM swivel mount. Features 5 programmable shift points including Launch Lite, progressive shift, playback, digital RPM display, compatible with .5-6 pulse ignition signals (1-12 cyl engines), and 7 color shift light. This product features 90 seconds of engine RPM playback memory. Replay using the digital display or connect to a standard AutoMeter tachometer to playback engine RPM on the tachometer dial.
- Features 4 programmable shift points, adjustable by 10 RPM increments - including Launch Lite, progressive shift, and digital RPM display
- Compatible with 0.5 - 6 pulse ignition signals (1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions.
- Seven user selectable colors (white, red, yellow, green, teal, blue, and magenta) to match visual preferences of driver as well as brightness adjustments for changes in visibility conditions
- Features AutoMeter's E-Z View Digital LED Display System which maximizes readability and minimizes distracting high speed digit changes
- Record up to 80 seconds of engine RPM data and playback at slow motion speeds to analyze vehicle and driver performance following a run.
- Identify key performance data such as burnout, launch RPM, tire spin, gear changes and engine speed through the traps to fine tune your setup and trip the win lights.
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Measures 5.1" x 2.1" x 3.1"
- a.i.m system™ allows 30º of angle adjustment and 360º rotation of bracket assembly for incredible mounting versatility.
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074053504
- Cross Sell: 9117, 9123
- Gauge Type: DPSS Shift-Light
- Includes Mounting Hardware: Bracket Included
- Lighting Color: Red LCD/7 User Selectable Shift Light Colors
- Lighting Type: Digital LED
- Movement: Digital
- Range: 0-16,000 RPM
- Related Item: BEX-5000, 2163, EP-800
- Series: ACCESSORIES
- Upsell: 9117, 9123
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4 x 7.75 x 9 inches
- Weight: 0.8 POUNDS
