Fabtech 3" BUDGET SYS W/ DL 2.5 & 2. 14-18 GM C/K1500 P/U W/ OE ALM OR STMP STL UCA

  • Sale
  • Regular price $2,987.89

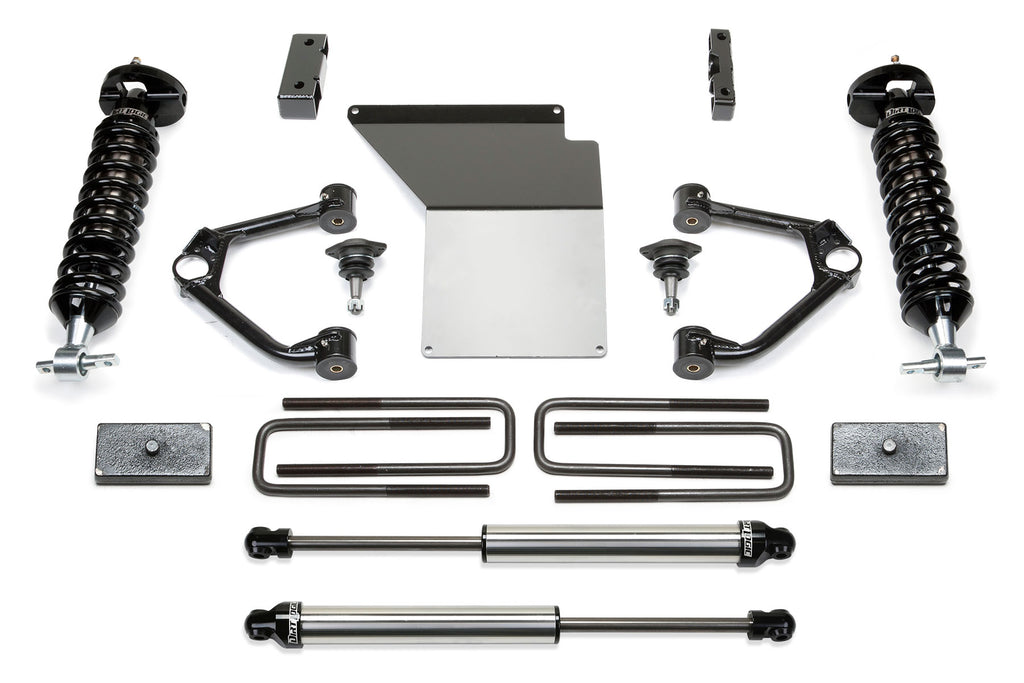

This system offers a mild lift height with easy installation for clearance of 33in tall tires on K1500's. Lift is accomplished with Dirt Logic 2.5 Coilovers that provide superior damping for aggressive offroad use and a good highway ride. The stock upper control arms are replaced with thick wall DOM tubular arms that feature heavy duty extended range ball joints. These ball joints provide additional strength to the vehicles suspension compared to the factory. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4in thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2in rear lift block and u-bolts to help level the stance of the vehicles. Dirt Logic 2.25 rear shock absorbers replace the stock units for increased damping for both on and offroad use. - Value priced system with Fabtech quality Increased ground clearance Includes Dirt Logic 2.5 Coilovers for superior damping Extended range upper ball joints provide a smooth quiet ride Increased fender clearance compared to a Leveling Kit for 33in tall tires Suspension can be restored to stock.


  • GTIN: 00674866095816
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: US
  • Emissions : CARB Eligible
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 13 x 14.5 inches
  • Weight: 124.2 lb
