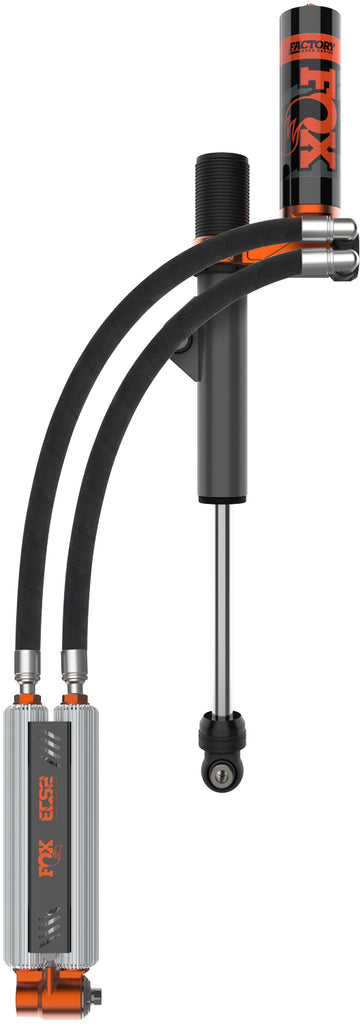

FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
- NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
- External Cooling System 2 (ECS2)
- Owner serviceable and rebuildable
- JM92 MIL-SPEC oil developed specifically for off-road racing
- Orange and Black Anodized CNC Machined Aluminum Components
Attributes:
- GTIN: 00692878899130
- Brand Name: FOX Offroad Shocks
- Adjuster Type: DSC - Dual Speed Compression
- Body Diameter (in): 2.0
- Body Material: Aluminum
- Bottom Mount: Eyelet
- Compressed Length (in): 15.96
- Extended Length (in): 25.40
- Eyelet Length (in): 1.68
- Fox Catalog: OFFROAD
- Hose: -10 x 24.00
- Label Name: Class 11, Rear (Side Mount), 2.0 FRS, SB, P/B, ECS2, DSC, 9.4", Left
- Mounting: 1/2 x 1-1/2
- Reservoir Dimensions: 2.55 x 8.00
- Reservoir Type: Rotating Piggyback
- Series: Factory Race
- Shaft Size (in): 7/8
- Top Mount: Welded Side Mount
- Travel (in): 9.44
- Type: Smooth Body
- Valving: 807-24-058
Extended Information:
- Country of Origin: US
- Emissions : 1
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 47.0000 x 11.0000 x 6.0000 inches
- Weight: 10.0000 lb
