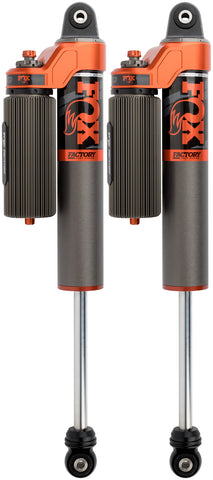

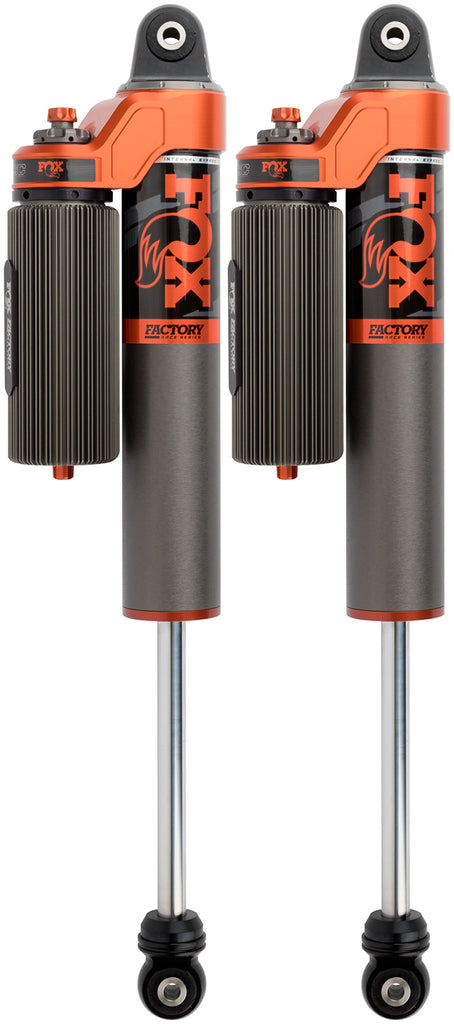

Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your Jeep.
- Performance Tuned For Vehicle Specific Application
- Aluminum Body Dissipates Heat Faster Than Steel
- Multiple Internal Damping Zones
- External Reservoir System Dissipates Heat Fast
- Black Anodized CNC Machined Aluminum Components
Attributes:
- Brand Name: FOX Offroad Shocks
- GTIN: 00711745590519
- Adjuster Type: DSC - Dual Speed Compression
- Body Diameter (in): 3
- Body Material: Aluminum
- Bottom Mount: ES6
- Bottom Mount (p/n): 213-28-000-B
- Compressed Length (in): 17.93
- Extended Length (in): 27.65
- Fox Catalog: TRUCK
- Label Name: Kit: 20-ON Jeep Gladiator, Rear, Internal Bypass, 3.0 Series, R/R, 2-3" Lift, DSC
- Reservoir Type: Piggyback
- Series: Factory Race
- Top Mount: ES6
- Top Mount (p/n): 213-28-000-B
- Travel (in): 9.72
- Type: Smooth Body Internal Bypass
Extended Information:
- Country of Origin: US
- Emissions : 1
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 39.0000 x 20.0000 x 12.0000 inches
- Weight: 45.0000 lb
