Operate your air springs from the comfort of your cab with wireless air spring controls from Pacbrake! Pacbrake Wireless Controls are a universal fit. They fit the frame of any vehicle work with any air spring on the market. They can also be easily installed with common mechanic tools – no lines or wires to the cab and no drilling required!

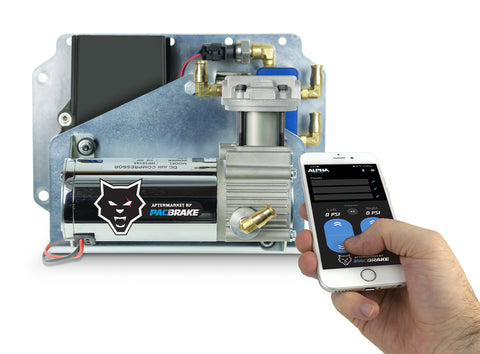

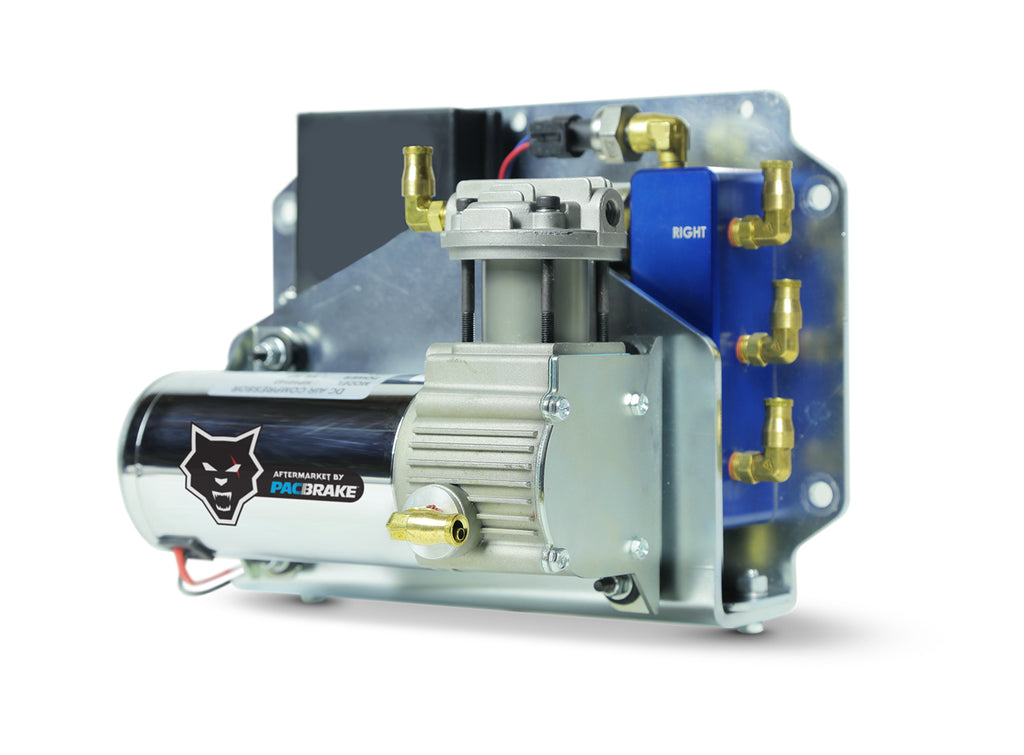

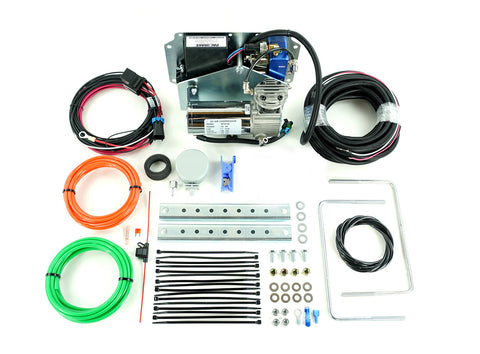

The kit comes with everything required for install: Pacbrake Wireless Controls air board assembly (controller, solenoid block, air compressor, pressure sensors and harnesses), Phone app (Compatible with Apple iOS 10.3+ or Android 4.3+ mobile devices), Air lines, pressure connectors and mounting hardware.
Compressor features:
Copper wire wound permanent magnet motor
Oil-less design
Sealed bearings
PTFE piston ring
Cast aluminum cylinder head
Hard anodized aluminum cylinder and aluminum sleeve
Compressor Specifications:
Part Number HP10143-12 VDC:
12 VDC
33% (20 min @ 100 PSI) Duty Cycle
1/4 HP
8.7 inch x 4 inch x 6.2 inch (LxWxH) / 221mm x 102mm x 158mm
5.5 lbs
Features and Benefits:
Dual Path Control – adjust your air springs independently to adjust for uneven loads.
3x Signal Strength – gone are any frustrations associated with connecting phone and controller!
Waterproof and debris resistant – Demand a Pacbrake IP67 rated controller.
Quick Mount Kit – comes with Quick Mount bracket for effortless bolt-on installation.
Military grade solenoids – designed to withstand extreme cold, heat, moisture, and salt spray. does not require cellular service to operate.
- A breakthrough in air suspension control! Welcome to the Second Generation of Pacbrake Wireless. Now with 3x the signal strength for quick and reliable connection even in the back country!
Attributes:
- Brand Name: Pacbrake
- GTIN: 00628480004044
- Fill Type: Dual Channel
- Mounting Hardware Included?: Yes
- Prop_65_Warning: CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Weight: 5.5
Extended Information:
- Country of Origin: China
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: KT
- Dimension: 10 x 10 x 22 inches
- Weight: 24 lb
