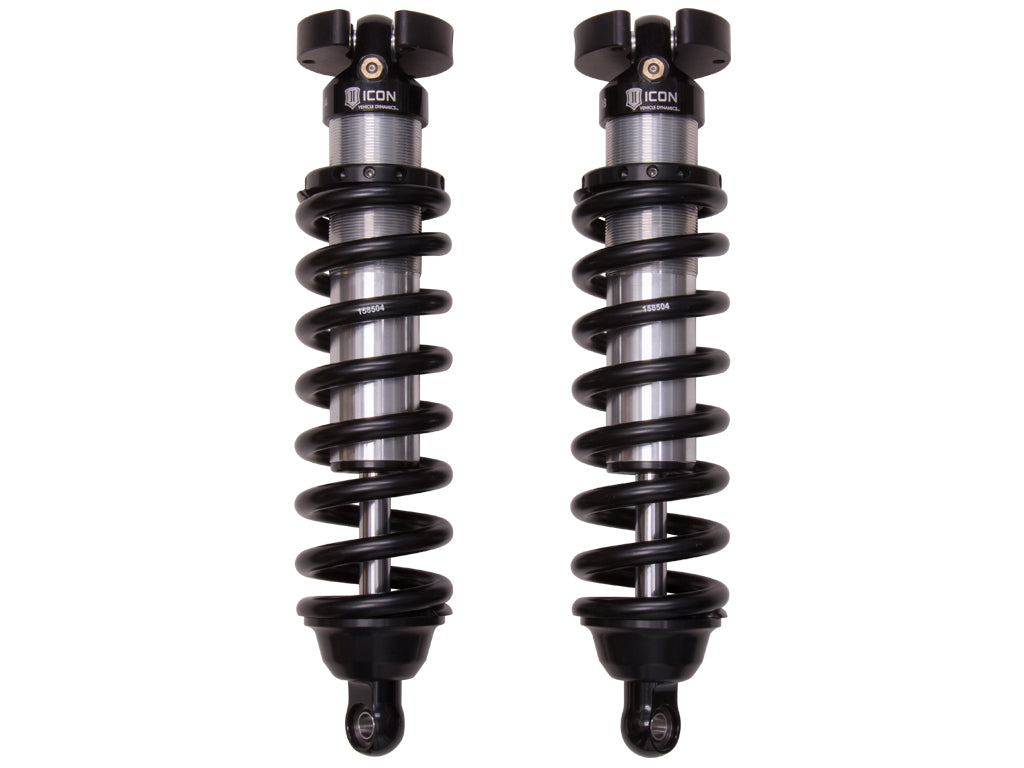

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These adjustable coilovers allow up to 0-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma or Toyota 4Runner.
- Increased wheel travel and improved ride quality over stock
- Extended Travel length requires installation of aftermarket front upper control arms
- Vehicle specific tuned for superior shock damping and control
- Height-adjustable coilovers offer 0-3" of front lift height adjustment
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103403793
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 158508 - COIL SPRING 1400.0300.0700 BLACK
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Cylinder Finish: Cadmium Plated
- Damping Type: Oil
- Dust Shield: No
- Material: Aluminum
- Maximum Lift: 3
- Minimum Lift: 0
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Remote Reservoir: NO
- Reservoir Style: Internal
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Shaft Diameter: 0.875
- Spring Color: Black
- Spring Rate Type: Linear
- 48: Eyelet
- 49: Mounting Plate
- 50: No
- 51: yes
- 52: 2.5
- 408: Center of Eylet
- 409: Top of Upper Mount Plate
- 1078: 650
- 2064: Steel
- 2329: Steel
- 2917: Yes
- 3085: Single Tube
- 3390: Performance
- 5126: Silver
- 7233: No
- 8703: No
- 10526: Digressive
- 10527: No
- 10529: No
- 10530: Passive
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.0000 x 13.0000 x 7.0000 inches
- Weight: 42.0000 lb
