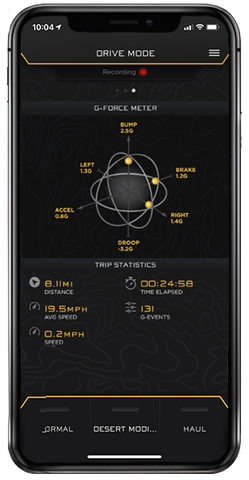

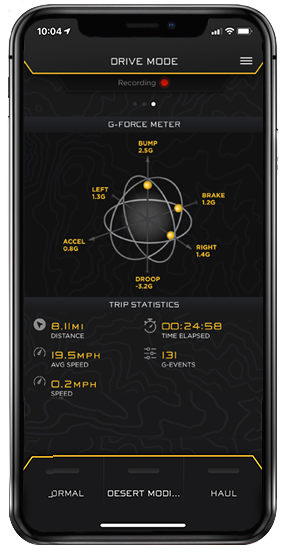

The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
- Vehicle specific design and tuning for superior shock damping and control
- Offset upper eyelet allows fitment into factory shock mounts
- 6061 aircraft grade aluminum CNC machined components
- Cerakoted steel cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- 100% Revalveable
- 3.0” Body diameter for increased oil volume and larger piston area
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- Nitrogen charged monotube design with piggyback reservoir
- Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece linear compression/digressive rebound piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- ICON 20-26 GM 2500/3500 HD 0-2" REAR VS 3.0 RR CDEV PAIR
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103436340
- 30: Yes
- 37: 29.27
- 40: Yes
- 48: EYELET
- 49: EYELET
- 50: NO
- 51: Yes
- 107: 17.95
- 359: 3
- 408: Center of Eyelet
- 409: CENTER OF EYELET
- 905: 2.75
- 3390: Performance
- 7585: 11.33
- 9783: No
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Active
- Add-On Part: 71704EP - 20-26 GM 2500/3500 HD 0-3.5" FRONT VS 3.0 RR CDEV PAIR
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Cylinder Color: Gray
- Cylinder Diameter: 3
- Cylinder Material: Steel
- Damping Adjustment Type: Electronic
- Damping Type: Oil
- External Reservoir: Yes
- Reservoir Type: Piggyback
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Valving Type: Linear/Digressive
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 41.0000 POUNDS
