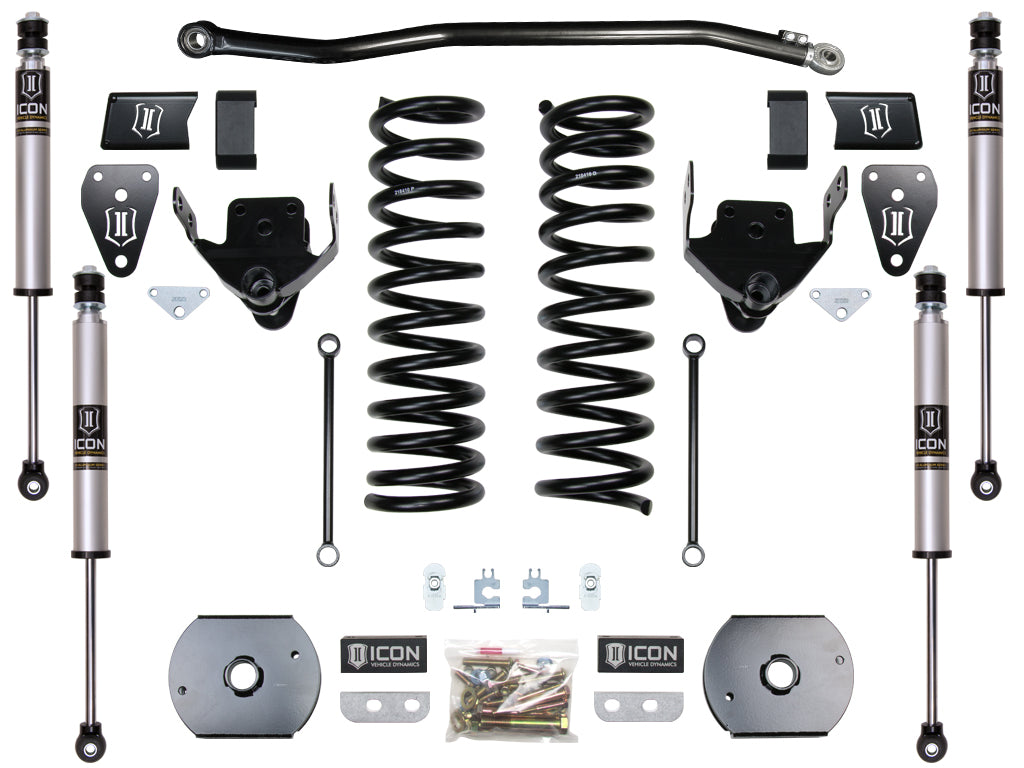

ICON Vehicle Dynamics suspension systems for the 2014-2026 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 1 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.0 Aluminum Series shocks help deliver balanced performance front to rear, making it the perfect suspension system for any 2014-2026 Ram 2500 4WD that's tasked with daily driving, towing, and light off-road use. This suspension system has been designed specifically by ICON engineers to retain the functionality of factory rear air ride components and rear ride height adjustability.
- ICON-engineered dual rate front coil springs deliver 4.5" of front lift and exceptional vehicle control over varying terrain
- Allows use of larger, more aggressive wheel tire combinations up to 37" diameter
- Vehicle specific tuned front and rear 2.0 Aluminum Series shocks provide superior damping and ride quality
- Increased wheel travel and suspension performance over stock with no change in towing capacity
- Adjustable front track bar realigns front axle and improves strength
- PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
- Precision CNC laser cut, fabricated radius arm drop brackets correct suspension geometry
- Fabricated rear air bag spacers and sensor linkages allow use of stock rear air springs and provide 3.75" of rear lift over stock

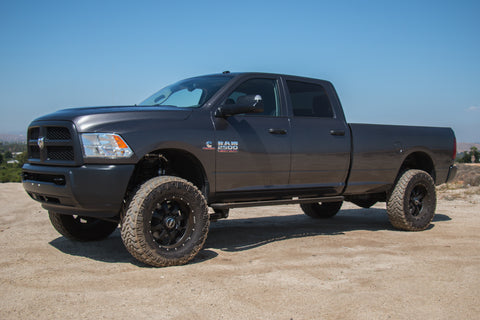

- Level stance from front to rear of vehicle
- ICON 14-26 RAM 2500 4WD 4.5" STAGE 1 SUSPENSION SYSTEM (AIR RIDE)
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103415581
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 4427: Black
- 4428: Steel
- 5520: 4.5
- 5782: Open
- 5783: Open
- 7325: 2
- 10107: 412
- 11410: 4.5
- 11411: 3.75
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Front Reservoir Style: Internal
- Front Shock Body Diameter: 2
- Front Spring Rate Type: Progressive Dual Rate
- OEM Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Internal
- Rear Shock Body Diameter: 2
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.0000 x 19.0000 x 10.0000 inches
- Weight: 168.0000 POUNDS
