ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- 100% Revalveable
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with piggyback reservoir
- Double-sealed Schrader caps reduce risk of damage
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft

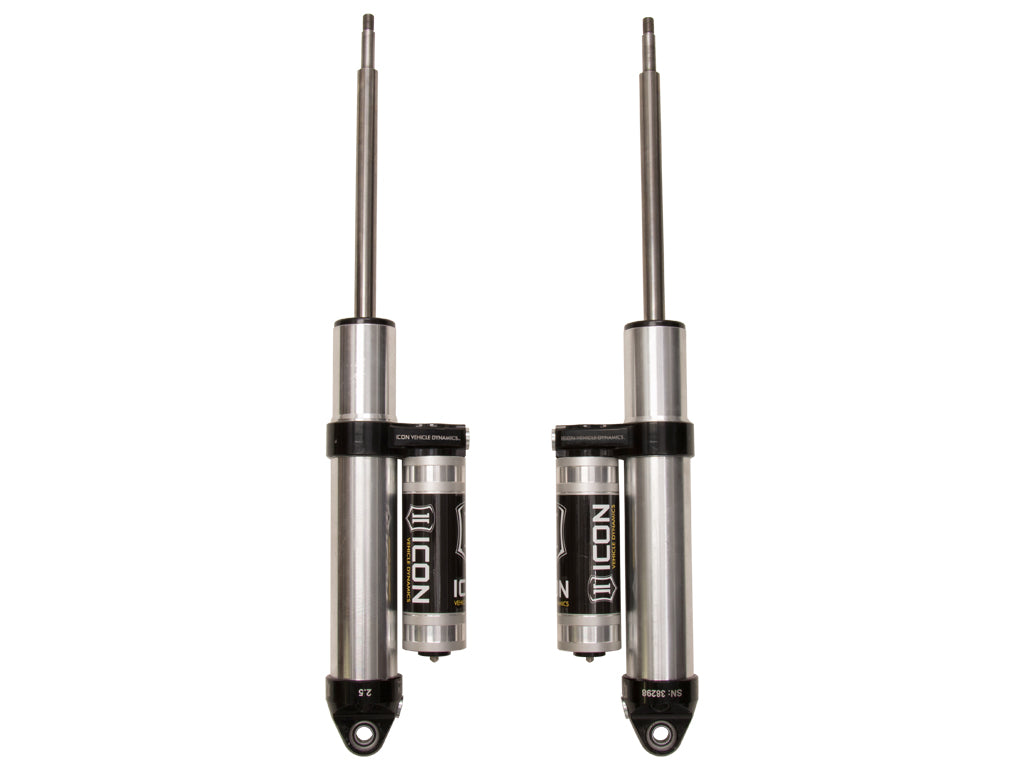

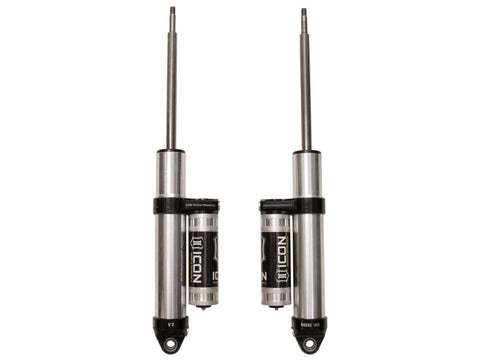

- ICON 14-26 RAM 2500 2" PERFORMANCE REAR 2.5 VS PB PAIR
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103400983
- 30: Yes
- 37: 27.48
- 40: NO
- 48: EYELET
- 49: Stem
- 50: NO
- 51: Yes
- 107: 16.15
- 359: 2.5
- 408: Shoulder of Stem
- 409: CENTER OF EYELET
- 905: 2.25
- 3390: Performance
- 7585: 11.33
- 9783: No
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 214202 - 14-UP RAM 2500 2" REAR PERFORMANCE SPRING KIT
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Cylinder Color: Silver
- Cylinder Diameter: 2.5
- Cylinder Material: Aluminum
- Damping Type: Oil
- External Reservoir: Yes
- Reservoir Type: Piggyback
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Valving Type: Digressive
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 39.0000 x 10.0000 x 9.0000 inches
- Weight: 25.0000 POUNDS
