ICON's V.S. 3.0 Series Remote Reservoir CDEV Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2026 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series shocks offer improved heat dissipation and resistance to shock fade under hard use. Like all ICON shock absorbers, V.S. 3.0 Series shocks are 100% rebuildable and 100% revalveable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
- Bolt-in system fits in OE coil bucket location
- One-piece linear compression/digressive rebound piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- ICON engineered coil springs guaranteed for life against sagging or breakage
- 6061 aircraft grade aluminum CNC machined components
- FK Rod End bearings for extended longevity and minimal deflection
- Cerakoted steel cylinders offer excellent corrosion resistance and consistent finish
- Fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Vehicle specific design and tuning for superior shock damping and control
- 3.0” Body diameter for increased oil volume and larger piston area
- Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift, depending on year model of truck
- Nitrogen charged monotube design with remote reservoir
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use

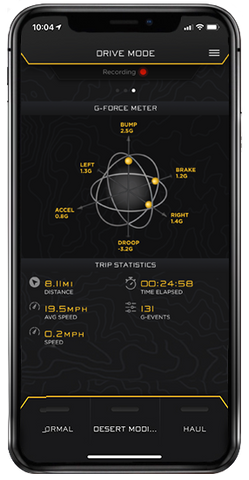

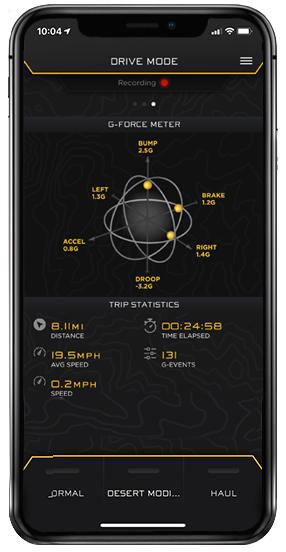

- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 17-26 FSD 4WD 4-5.5" 3.0 VS RR CDEV BOLT IN CO CONVERSION KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103436609
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: Yes
- 9783: Yes
- 10107: 400
- 10527: Yes
- 10528: Yes
- 10530: Passive
- 10531: Ceramic Coated
- 10535: 5.5
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191207 - IIC CONTROLER ALT FUNCTION PLUG KIT
- Adjustable Damping: Yes
- Body Diameter: 3
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Cylinder Color: Gray
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Gas Charged: yes
- Lower Mount Type: Eyelet
- Material: Aluminum
- Maximum Lift: 5.5
- Minimum Lift: 4
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Reservoir Style: Remote
- Self-Leveling: No
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Rate Type: Linear
- Upper Mount Type: Mounting Plate
- Valving Type: Compression: Linear
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 74.0000 POUNDS
