ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2019-2026 Chevrolet Silverado 1500/GMC Sierra 1500 trucks. Their extended length and pairing with ICON front upper control arms offers an increase in total front wheel travel compared to ICON standard travel coilovers, for a total of approximately 10” of front wheel travel. ICON’s vehicle-specific valving provides a sport tuned feel on and off-road while 1.5-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GM pickup.
- Adjustable coilovers yield 1.5-3.5” of front lift height over stock
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Superior low speed control reduces body roll and increases on-road stability
- High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
- Corrosion resistant CAD plated shock body with 7/8" shaft
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location

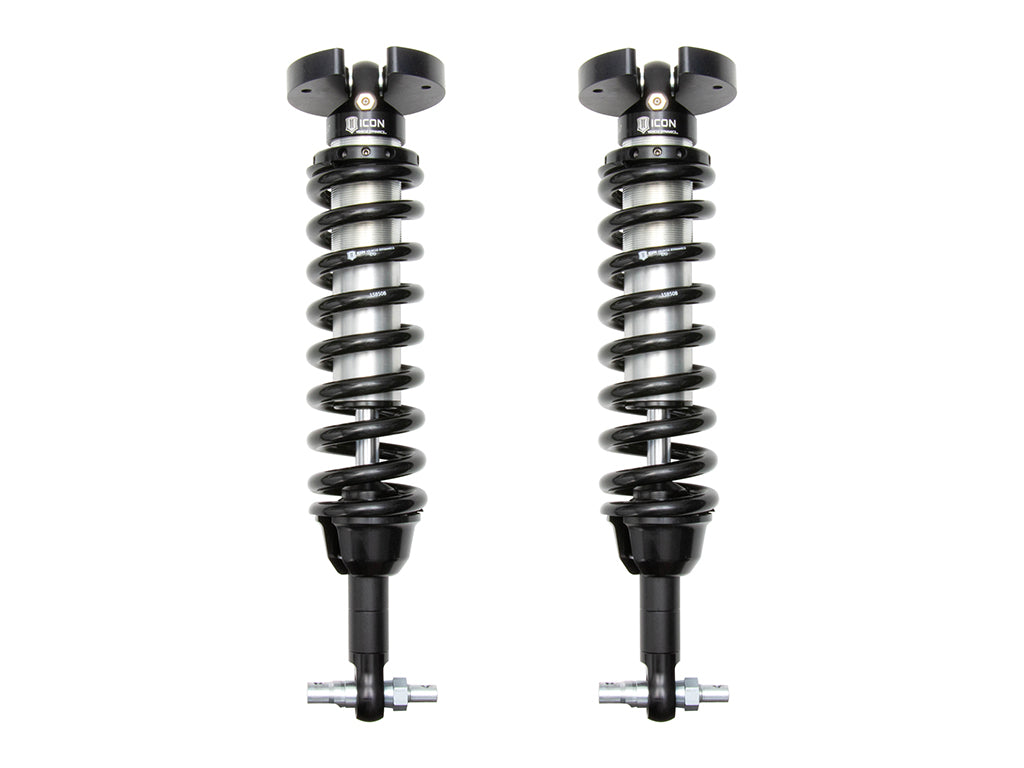

- ICON 19-26 GM 1500 FRONT EXT TRAVEL 2.5 VS IR COILOVER KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103406022
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9783: Yes
- 10107: 700
- 10527: No
- 10528: Yes
- 10530: Passive
- 10535: 3.5
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Adjustable Damping: NO
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 17.97
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Type: Oil
- Extended Length: 23.83
- Gas Charged: Yes
- Lower Mount Type: BAR PIN
- Material: Aluminum
- Maximum Lift: 3.5
- Minimum Lift: 1.5
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: (Sierra) 305/70R17 (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Remote Reservoir: NO
- Reservoir Style: Internal
- Self-Leveling: No
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Flat on Bar Pin
- Spring Rate Type: Linear
- Travel Length: 5.87
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 12.0000 x 6.0000 inches
- Weight: 51.0000 POUNDS
