The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
- Compatible with 0-3.5" of front lift over stock
- One-piece linear compression/digressive rebound piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- Press in, bonded rubber bushing/bar pin assembly damps road vibration and provides OE factory type fitment
- 6061 aircraft grade aluminum CNC machined components
- Cerakoted steel cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- 100% Revalveable

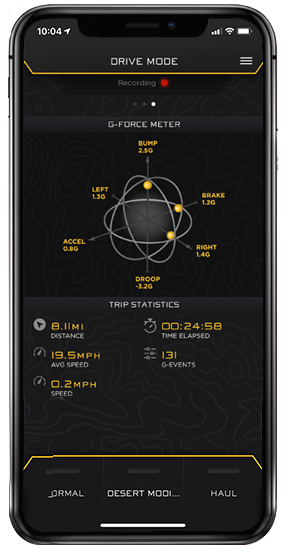

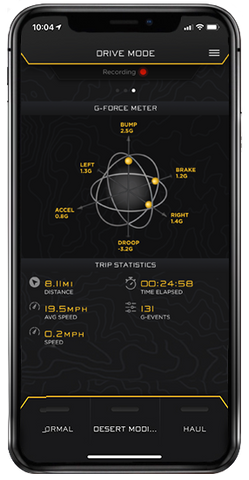

- Vehicle specific design and tuning for superior shock damping and control
- 3.0” Body diameter for increased oil volume and larger piston area
- Extended travel length requires ICON Delta Joint Pro front upper control arms and provides maximum wheel travel
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- Nitrogen charged monotube design with remote reservoir
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- ICON 20-26 GM 2500/3500 HD 0-3.5" FRONT VS 3.0 RR CDEV PAIR
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103436296
- 30: Yes
- 37: 19.55
- 40: Yes
- 48: Clevis
- 49: Bar Pin
- 50: NO
- 51: Yes
- 107: 14.02
- 359: 3
- 408: Center of Clevis Holes
- 409: Flats on Bar Pin
- 905: 2.75
- 3390: Performance
- 7586: 5.53
- 9783: No
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Active
- Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Cylinder Color: Gray
- Cylinder Diameter: 3
- Cylinder Material: Steel
- Damping Adjustment Type: Electronic
- Damping Type: Oil
- External Reservoir: Yes
- Reservoir Type: Remote
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Valving Type: Linear/Digressive
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 41.0000 POUNDS
