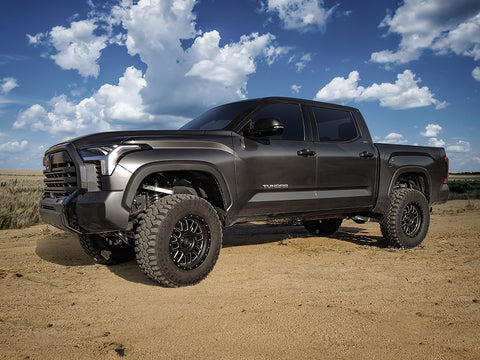

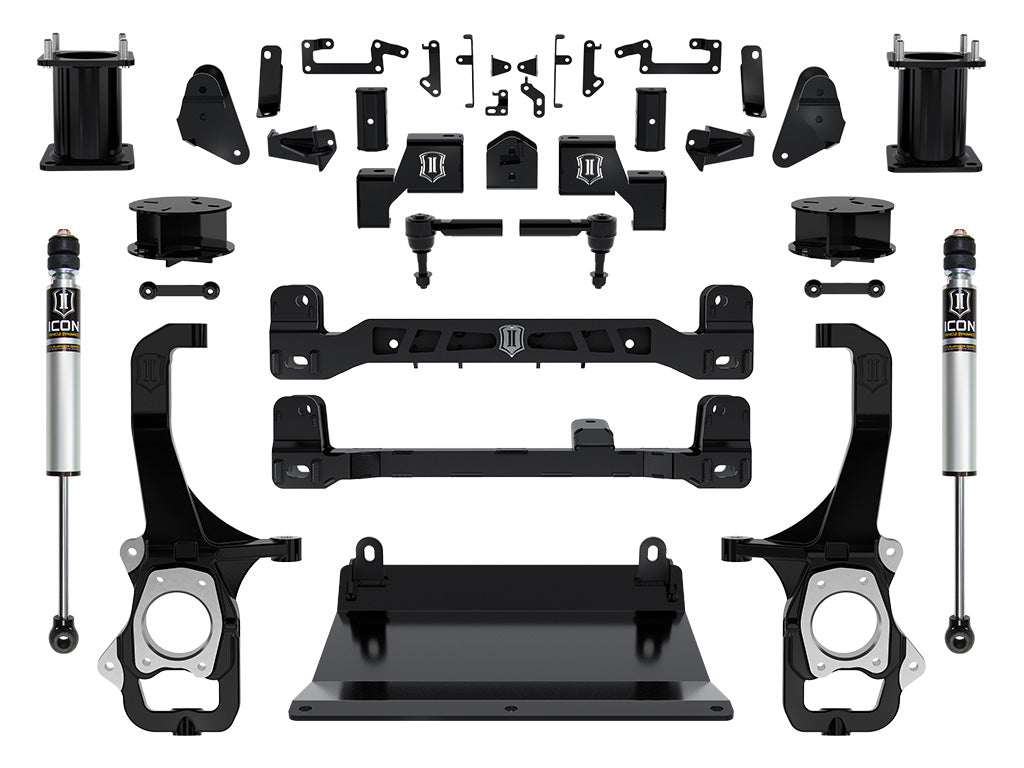

ICON 2022-2026 Toyota Tundra 6" Lift Stage 1 Suspension System

Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
2.0 Aluminum Series rear shocks to improve rear suspension performance
Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
Maintains factory track width
Front coilover spacer kit with heavy duty steel construction
Provides 6" front suspension lift with only 4" of crossmember drop
Single piece high-strength ductile iron steering knuckles with built-in 4" drop
Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
Included sway bar drop brackets reduce bind in OE sway bar links
Front and rear heavy-duty bump stop brackets
High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends

Vehicle Specific

Brand Name: ICON Vehicle Dynamics
GTIN: 00840103425313
30: Yes
2371: No
3097: Yes
3390: Performance
5520: 6
9900: No
11410: 6
11411: 3
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 58461DJ - 22-26 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KIT
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
Maximum Lift Front: 6
Maximum Lift Rear: 3
OEM Wheels & Tires Fitment: No
Rear Reservoir Style: Internal
Rear Shock Body Diameter: 2
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
