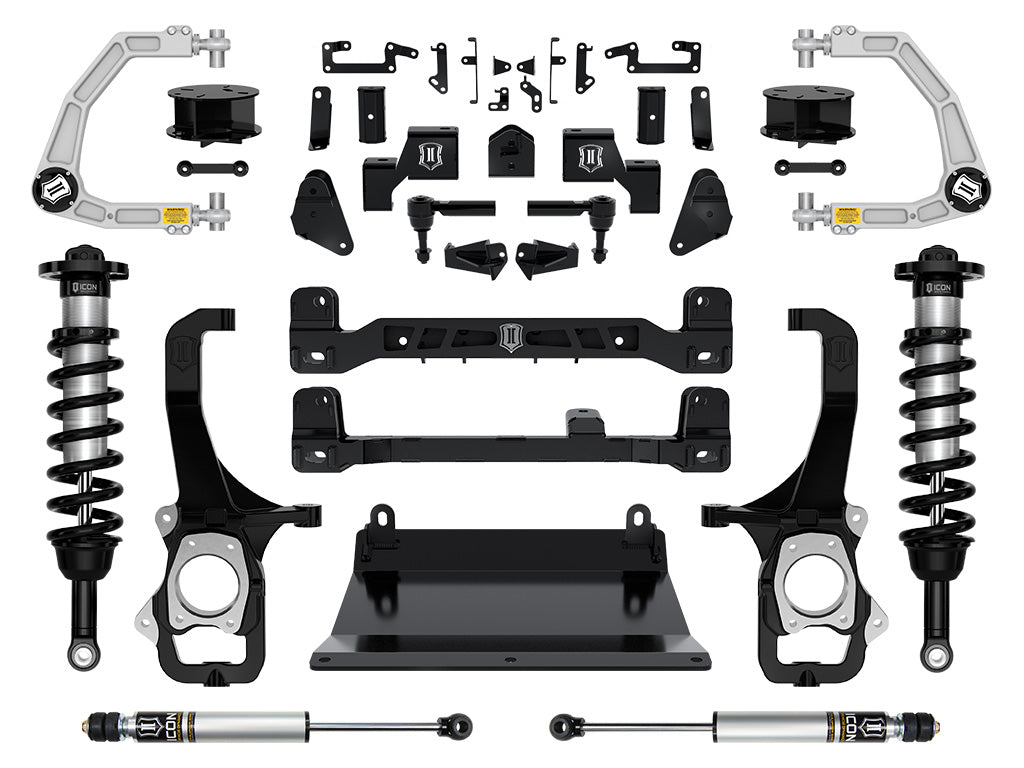

ICON 2022-2026 Toyota Tundra 6" Lift Stage 3 Suspension System Billet

2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
Included sway bar drop brackets reduce bind in OE sway bar links
Front and rear heavy-duty bump stop brackets
High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
2.0 Aluminum Series rear shocks provide balanced tune with the front coilovers
Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
Maintains factory track width
Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
Single piece high-strength ductile iron steering knuckles with built-in 4" drop

Vehicle Specific

Brand Name: ICON Vehicle Dynamics
GTIN: 00840103425320
30: Yes
2064: Steel
2371: No
3096: Black
3097: Yes
3390: Performance
4427: Black
4428: Steel
5520: 6
5778: 3
5782: Closed
5783: Closed
7325: 2
9271: Linear
9900: No
10107: 700
11410: 6
11411: 3
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
Adjustable Compression: No
Adjustable Control Arm: Yes
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
Coil Quantity Front: 2
Front Reservoir Style: Internal
Front Shock Body Diameter: 2.5
Maximum Lift Front: 6
Maximum Lift Rear: 3
Minimum Lift Front: 5
OEM Wheels & Tires Fitment: No
Rear Reservoir Style: Internal
Rear Shock Body Diameter: 2
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
