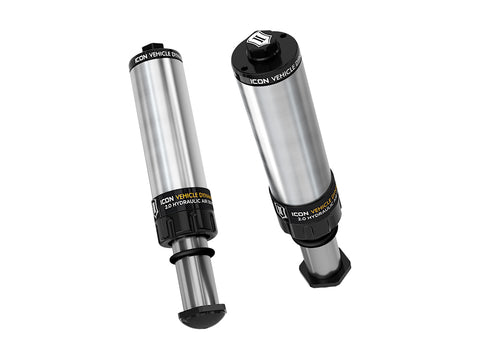

This hydraulic bump stop system was developed as an OEM replacement, making installation a simple and straightforward bolt-on affair. With no major cutting, welding, or fabrication required you have the option to return the vehicle back to its stock form. The factory rubber bump stops have a limited energy absorption capacity and a rapid release of this energy upon rebound – This translates into a harsh ride and poor handling in rough terrain. ICON hydraulic bump stops absorb and release this energy in a much more controlled manner due to the digressive rebound piston valving, resulting in predictable handling and vehicle dynamics.
- Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
- Fully serviceable
- Fully reversible to factory configuration with no cutting required
- 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
- Position and velocity sensitive technology exponentially increases bottom-out resistance
- Vehicle specific bump stop tune to provide smooth engagement and best ride quality
- Heavy duty 1 ¼” CNC machined nitro steel shaft
- Multi stage CAD plated body for maximum corrosion resistance
- Double sealed high pressure Schrader valve
- Replaceable noise reducing striker pad

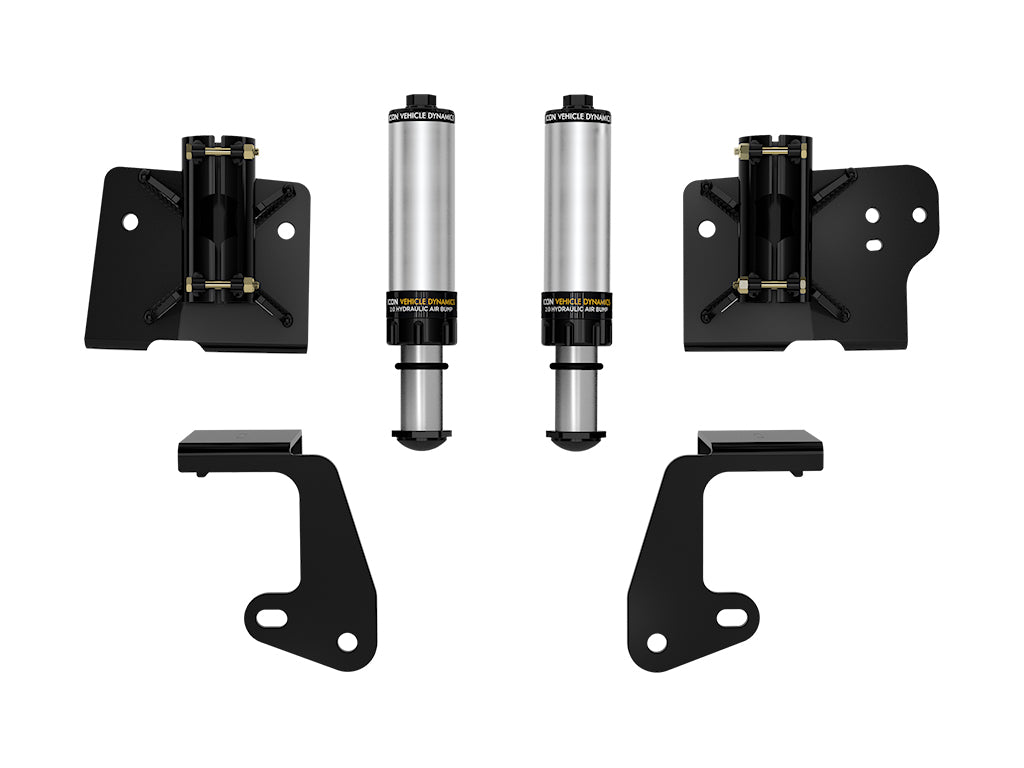

- ICON 23-26 SEQUOIA REAR HYD BUMP KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103430348
- 10: Steel
- 17: Black
- 25: 2
- 705: Performance
- 2168: No
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Attachment Type: Bolt On
- Bumper Material: Hydraulic
- Bumper Type: Hydraulic
- Diameter: 2
- Grade Type: Performance
- Length: 2.5
- Material: Aluminum
- Mounting Hardware Included: yes
- Travel Length: 2.5
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 14.0000 x 12.0000 x 6.0000 inches
- Weight: 20.0000 POUNDS
