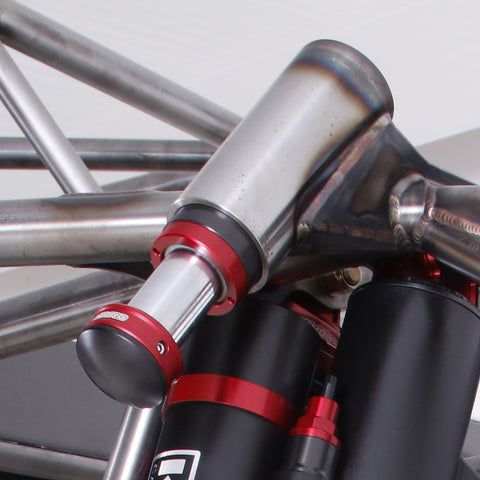

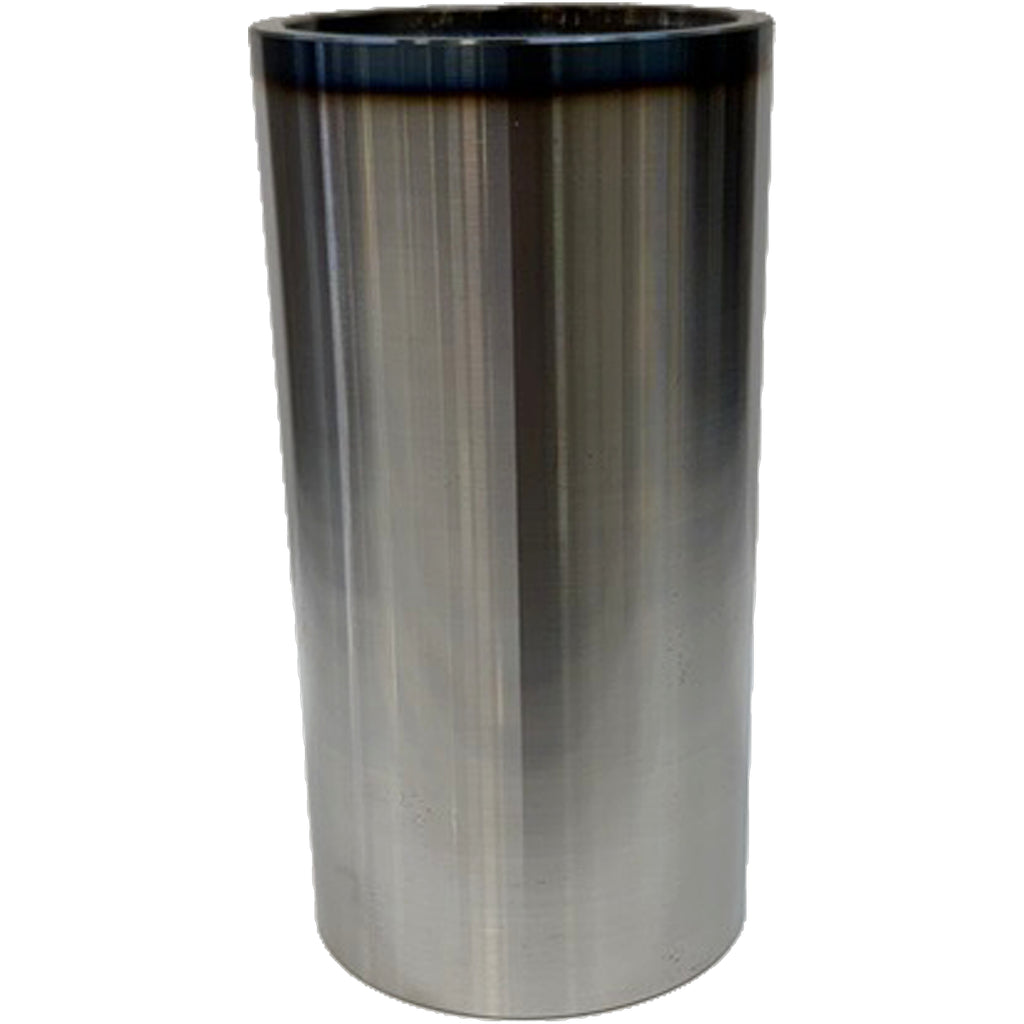

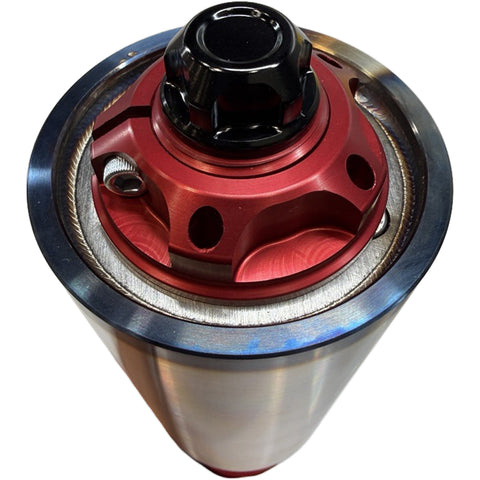

Something as simple as bump stop cans have room for improvement, and we did just that. Our KINETIK 2.5 bump stop cans are the strongest and highest quality on the market. We also designed them to work with both stem top and 4-bolt flat top 2.5 bump stops. Offered in 3 sizes, our 5.7 in. length version is designed for most 2-3 in. stroke bump stops for front or rear applications. Refer to our CAD image for stem top and bolt-on dimensions. We start with a much thicker walled 4130 chromoly sleeve and profile CNC machine the ID to reduce distortion with added support to the bump stop body. We then laser weld the top cap into the sleeve to finish it off. The laser welding process ensures maximum weld penetration with minimal warping or HAZ. We did extensive comparative strength testing compared to standard TIG welding and the laser welding process was significantly stronger withstanding much higher loads. This attention to detail is done so the bump stops slip-in correctly after you’re done welding the cans to your custom mounts or chassis. In the past, how much time did you waste honing or sanding the cans just to get the bump stops to slip-in? Time is money and that time is better spent elsewhere.
- Machined 4130 Chromoly
- Thicker walled for reduced distortion
- Race winning proven design and components
Attributes:
- Brand Name: Camburg
- GTIN: 00888563221038
- 10: 4130 Chromoly
- 200: Natural
- 225: Frame Mount
- 3390: Performance
- 8211: No
- 9397: No
- Diameter: 2.5
- Length: 5.7
- Mounting Type: Slip-in
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Weight: 0 POUNDS
