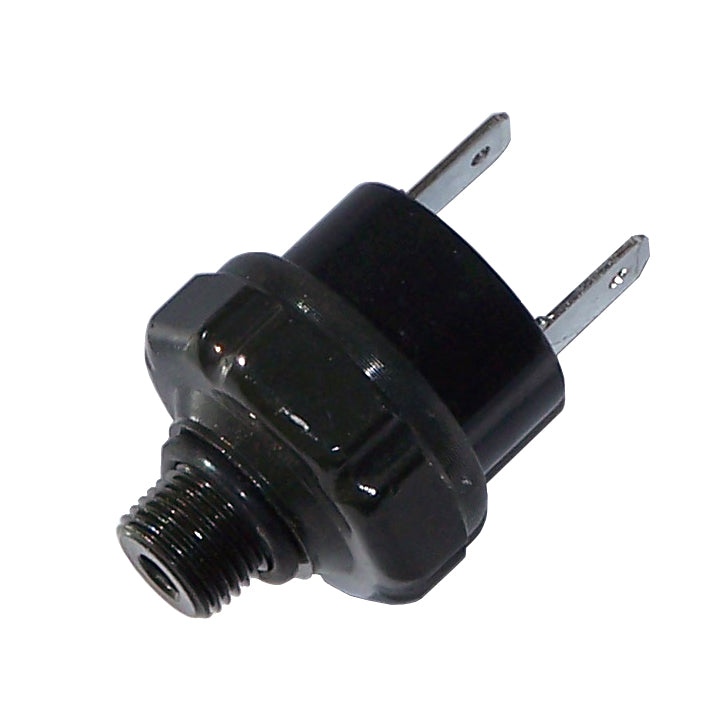

90/120 PSI Pressure Switch. Heavy duty tank-mount pressure switch with 12 gauge lead wires that determines the on and off pressure of your air compressor. The pressure switch is wired by relay to the compressor and turns the air compressor on and off automatically.
Attributes:
- GTIN: 00854508003229
- Brand Name: Kleinn Automotive Air Horns
- Add-On: N/A
- Attribute 1: On: 90 PSI
- Attribute 2: Off: 120 PSI
- Attribute 3: Note: 5% tolerance standard
- Attribute 4: The use of a relay is recommended
- Attribute 5: 20 amp max load
Extended Information:
- Country of Origin: CN
- Emissions : 1
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4 x 4 x 4 inches
- Weight: 0.2 lb
