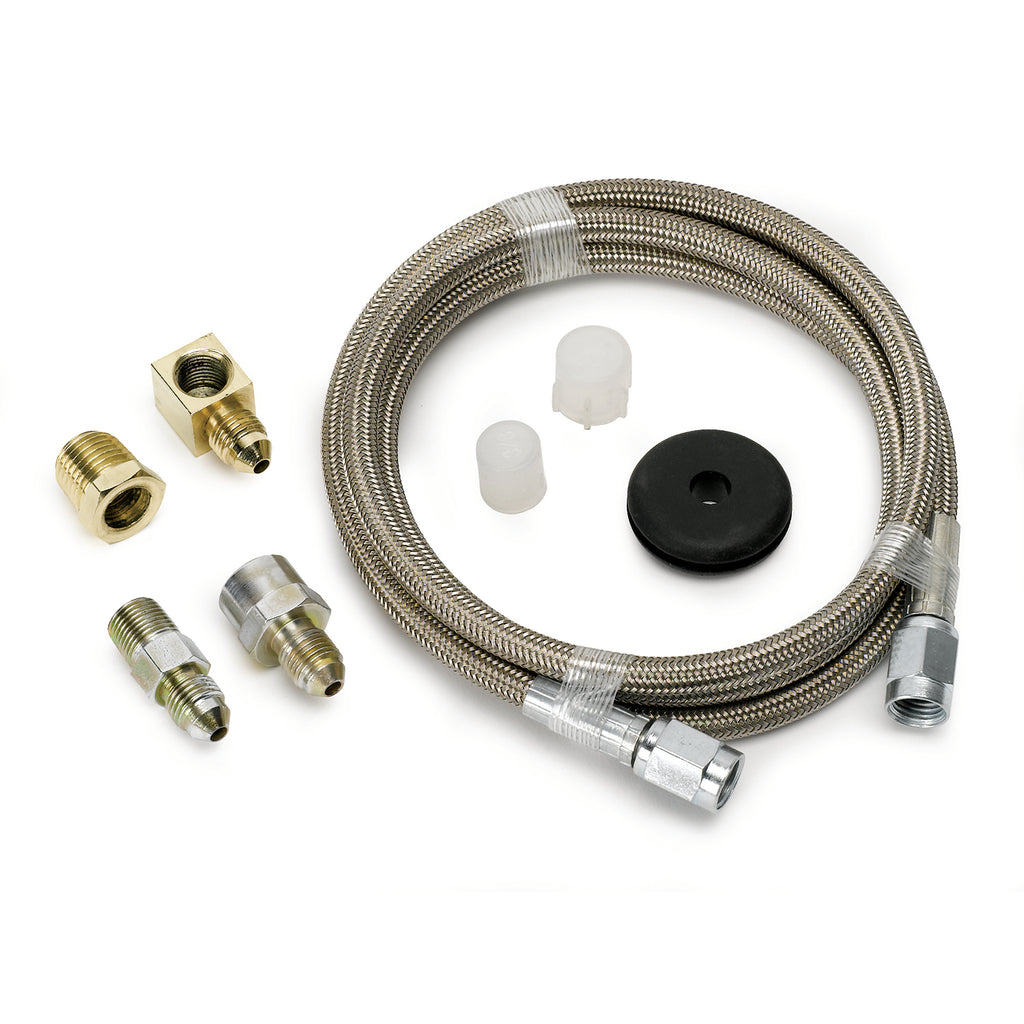

Includes 4ft. of #3 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -3AN male fitting, -3AN male to 1/8" NPT male fitting, -3AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.
- 4ft hose length
- PTFE lined hose, resistant to most fluids
- Type 304 Stainless braid
- Maximum Operating Pressure - 3000 PSI
- Burst Pressure - 12,000 PSI
- `-65 F to 450 F Operating Temperature Range
- Includes 1/8"NPT male to -3AN female straight, 1/8" FPT Female to -3AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -3AN to 1/8" NPT female 90 degree fittings
Attributes:
- Brand Name: AutoMeter
- GTIN: 00046074032356
- Cross Sell: 2268
- Includes Adapter/Fitting: 1/8" NPT female right angle to -3AN male fitting, -3AN male to 1/8" NPT male fitting, -3AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing.
- Related Item: BEX-3000, EP-800
- Series: ACCESSORIES
- Upsell: 2268
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 1.25 x 5.75 x 11.5 inches
- Weight: 0.45 POUNDS
