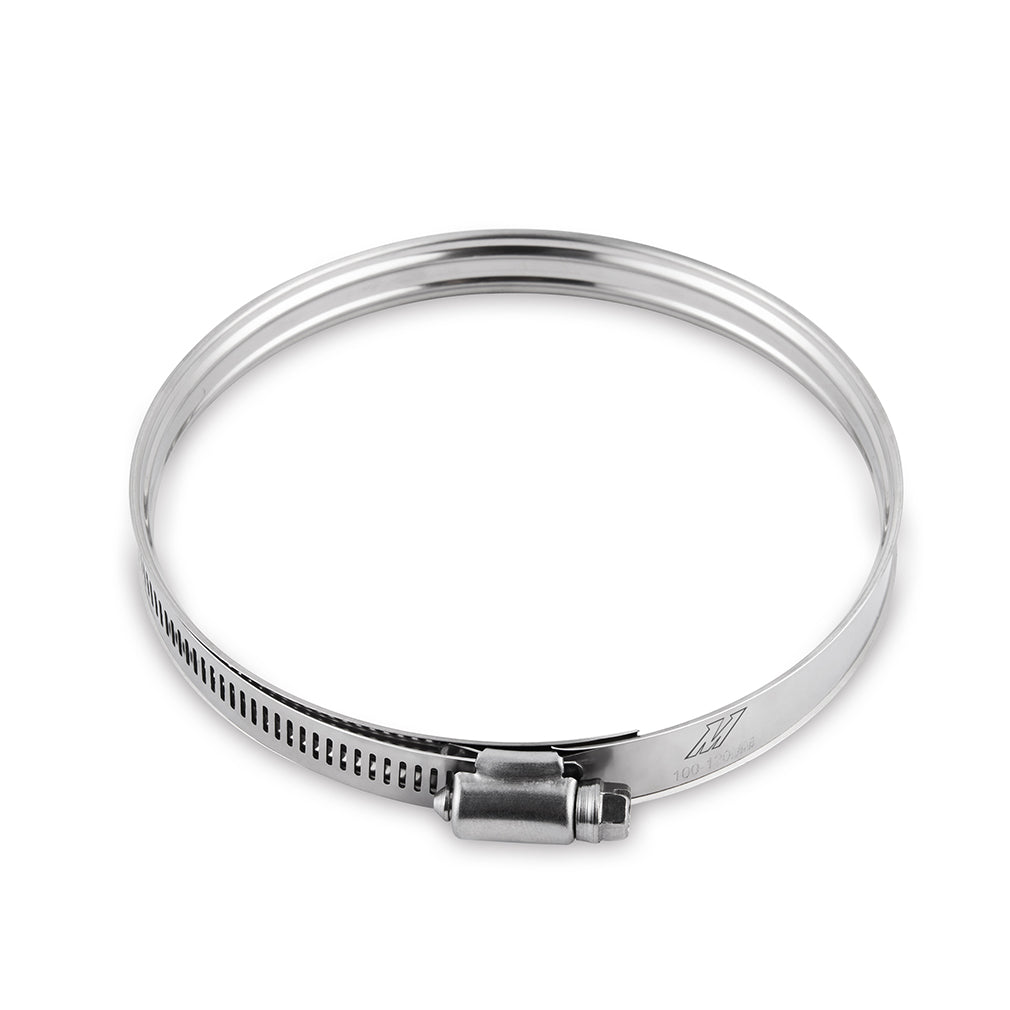

Mishimoto High Torque Protective Worm Gear Clamps are, simply put, the crme de la crme of hose clamps. Their innovative double-ridge inner shield design both protects the clamped material from cuts and abrasions while also providing superior clamping engagement. The double-ridge design provides concentrated compression force to provide equal 360 clamping pressure and leak free connections. To create a long-lasting, rust and corrosion resistant clamp, we utilized a 304 Stainless Steel construction. Available in a wide array of sizes ranging from 2.68" - 3.35" (68mm - 85mm) to fit everything from vacuum lines to intake tubes. Like all Mishimoto products, this High Torque Protective Worm Gear Clamp is backed by our Mishimoto Lifetime Warranty.
- Securely clamps hoses, couplers, and pipes with an outer diameter from 2.68-in-3.35-in (68mm-85mm)
- High torque worm gear design allows for quick and easy tightening
- Protective inner shield ensures safe, damage free clamping of soft materials
Attributes:
- Brand Name: Mishimoto
- GTIN: 00840197711583
- Band Width: 0.5
- Color: Silver
- Finish: Plain
- Grade Type: Premium
- Install Difficulty: 1
- Material: Stainless Steel
- Maximum Diameter: 3.35
- Minimum Diameter: 2.68
- Recommended Torque: 35
- Reusable: Yes
- SAE Size: 54
- SAE Type: F
- SellingPoint01: Securely clamps hoses, couplers, and pipes with an outer diameter from 2.68-in-3.35-in (68mm-85mm)
- SellingPoint02: High torque worm gear design allows for quick and easy tightening
- SellingPoint03: Protective inner shield ensures safe, damage free clamping of soft materials
- SellingPoint04: Innovative double-ridge design provides uniform 360 clamping force
- SellingPoint05: Double-ridge inner shield design provides concentrated compression force to ensure leak free connections
- SellingPoint06: 304 Stainless Steel construction resists corrosion
- SellingPoint07: Sold in packs of 2
- SellingPoint08: Includes Mishimoto Lifetime Warranty
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- Size: 3.35
- Spring Material: Steel
- TechSpec Band Width (in): 0.5
- TechSpec Clamp Style: Protective Worm Gear
- TechSpec Includes: (2) Mishimoto High Torque Protective Worm Gear Clamps, 2.68-in to3.35-in (68mm-85mm)--Mishimoto Lifetime Warranty
- TechSpec Material: Stainless Steel
- TechSpec Maximum Clamp Diameter (in): 3.35
- TechSpec Minimum Clamp Diameter (in): 2.68
- TechSpec Note: N/A
- TechSpec Recommended Tightening Torque: 35 in-lbs (4 NM)
- TechSpec SAE Number: N/A
- Type: Worm Gear
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5 x 3 x 1 inches
- Weight: 0.22 POUNDS
