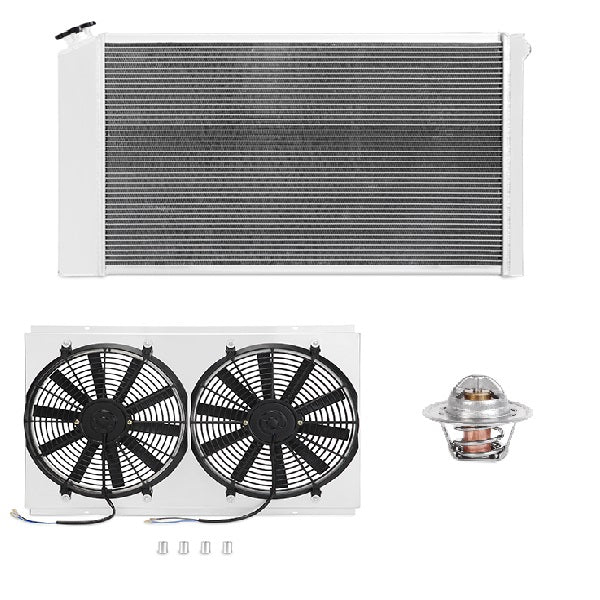

Mishimoto's 1973-1986 C/K Truck Cooling Package combines the best Mishimoto products into one, easy to order package. The combination of Mishimoto's radiator, fan shroud, and thermostat create a high performance cooling system for your classic vehicle that will never let you down. Whether your C/K Truck is used as a weekend cruiser or a drag strip monster, Mishimoto's classic cooling package will provide the ultimate coolant system upgrade. As with all our products, this C/K Truck cooling package includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
- All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
- 3-Row brazed aluminum radiator core
- Billet aluminum radiator fill neck
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354025620
- Core Construction: Tube-and-Fin
- Core Height: 16.9
- Core Length: 28.2
- Core Material: Aluminum
- Core Row Quantity: 3
- Core Thickness: 2.2
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Drain Plug Thread Type Standard: Metric
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Grade Type: Performance
- Inlet Diameter: 1.5
- Inlet Location: Top Left
- Install Difficulty: 4
- Internal Transmission Oil Cooler: Yes
- Mounting Hardware Included: Yes
- Outlet Diameter: 1.6
- Outlet Location: Bottom Right
- Overall Height: 18.9
- Overall Length: 33.7
- Overall Width: 4.6
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for 1973-1986 Chevy/GMC C/K Truck with a 250, 292, or 305
- SellingPoint02: All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
- SellingPoint03: 3-Row brazed aluminum radiator core
- SellingPoint04: Billet aluminum radiator fill neck
- SellingPoint05: Radiator includes internal transmission cooler to ensure optimal fluid temperatures
- SellingPoint06: Includes two high-flow 14-in electric fans, each providing over 1300 cfm of airflow
- SellingPoint07: Fan Shroud replaces failure-prone stock mechanical fan
- SellingPoint08: Mishimoto thermostat opens at lower temperature (180F) than standard thermostats, allowing coolant to flow through the engine sooner, reducing engine temperatures
- SellingPoint09: Thermostat is digitally calibrated for precise, consistent operation
- SellingPoint10: Mishimoto Lifetime Warranty
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- Tank Material: Aluminum
- TechSpec Applications: 1968-1977 Chevrolet El Camino (250ci 4.1L)----1973-1986 Chevrolet/GMC C/K (250ci 4.1L/292ci 4.8L/305ci 5.0L)
- TechSpec Chassis Codes: N/A
- TechSpec Core Height (in): 16.9
- TechSpec Core Length (in): 28.2
- TechSpec Core Thickness (in): 2.2
- TechSpec DPI: N/A
- TechSpec Drain Plug Thread Size: N/A
- TechSpec Engine Codes: N/A
- TechSpec Fluid Capacity (gal): N/A
- TechSpec Includes: Mishimoto Radiator-- Mishimoto Radiator Cap-- Magnetic Drain Plug-- Aluminum Fan Shroud--(2) 14-inch Mishimoto Slim Electric Fans--Mounting Hardware-- Mishimoto Thermsotat--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.5
- TechSpec Material: N/A
- TechSpec Note: MISHIMOTO ACTIVATION TEMPERATURE--180 F / 82 C----STOCK ACTIVATION TEMPERATURE--195 F / 90.5 C----FAN SPECIFICATIONS------MOUNTING HARDWARE--(4) Mounting Spacers--(4) 1-inch Self-tapping Screws----OVERALL SIZE--Length - 28.74-inch--Height - 19.7-inch--Width - .91-inch----CFM--Each fan puts out 1,300 CFM----NOTE--Radiator is designed for vehicles with or without air conditioning.--Electric fans already come attached to the shroud
- TechSpec Outlet (in): 1.6
- TechSpec Overall Height (in): 18.9
- TechSpec Overall Length (in): 33.7'
- TechSpec Overall Width (ins): 4.6
- TechSpec Rows: 3
- Thermostat Included: Yes
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 20.69 x 20.69 x 20.69 inches
- Weight: 27.1 POUNDS
PDF:
