Technology. Aside from being more durable than stock, the Mishimoto 6.7L Powerstroke intercooler also flows better. Flow bench testing showed that the Mishimoto intercooler flowed 22-percent better than the stock cooler. On the dyno, that extra flow provided our stock 6.7L with 40 lb. ft. more torque. This kit is available with a powder coated sleek silver, stealthy micro-wrinkle black, or micro-wrinkle blue cooler and polished pipes to match any style. Like all Mishimoto products, our 2011+ Ford 6.7L Powerstroke Air-to-Water intercooler is covered by our Mishimoto Lifetime Warranty.
- 22-percent Greater air flow than stock 6.7L Powerstroke intercooler
- Dyno-proven 40 lb-ft torque gains without other modifications
- Cast end tanks are more durable than brazed or welded end tanks, eliminating potential leak points
Attributes:
- Brand Name: Mishimoto
- GTIN: 00811580034817
- CARB EO Number: D-759-4
- Cold Side Pipe Inside Diameter: 0
- Core Color: Black
- Core Construction: Bar-and-Plate
- Core Height: 6.69
- Core Length: 10.59
- Core Material: Aluminum
- Core Thickness: 4.48
- Coupler Color: Black
- Coupler Material: Silicone
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Grade Type: Performance
- Hose Clamps Included: Yes
- Hot Side Pipe Inside Diameter: 0
- Inlet Diameter: 0
- Install Difficulty: 3
- Intercooler Type: Air-to-Air
- Maximum Boost Pressure: 0
- Maximum Horsepower: 0
- OptionLabel: Blue Cooler, Polished Pipes
- Outlet Diameter: 0
- Pipe Color: Polished
- Pipe Finish: Powder Coated
- Pipe Material: Aluminum
- SellingPoint01: Direct fit for all 2011+ Ford 6.7L Powerstroke
- SellingPoint02: 22-percent Greater air flow than stock 6.7L Powerstroke intercooler
- SellingPoint03: Dyno-proven 40 lb-ft torque gains without other modifications
- SellingPoint04: Cast end tanks are more durable than brazed or welded end tanks, eliminating potential leak points
- SellingPoint05: Bar-and-plate core for efficient cooling and unsurpassed strength
- SellingPoint06: No tune required-Intercooler can be installed on a completely stock or modified truck
- SellingPoint07: Includes Mishimoto mandrel-bent aluminum intercooler pipes for greater durability
- SellingPoint08: Includes Mishimoto Silicone Boots with DuraCore technology and Constant Tension Worm Gear Clamps
- SellingPoint09: Available in a Micro-Wrinkle Silver, Micro-Wrinkle Black, or Micro-Wrinkle Blue powder coated finish
- SellingPoint10: Patent No. US D907,063
- SellingPoint11: Mishimoto Lifetime Warranty
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 2011+ Ford Super Duty 6.7L Powerstroke
- TechSpec Centerline Radius: N/A
- TechSpec Chassis Codes: N/A
- TechSpec Core Height (in): 6.69
- TechSpec Core Length (in): 10.59
- TechSpec Core Thickness (in): 4.48
- TechSpec Core Type: Bar-and-Plate
- TechSpec Engine Codes: N/A

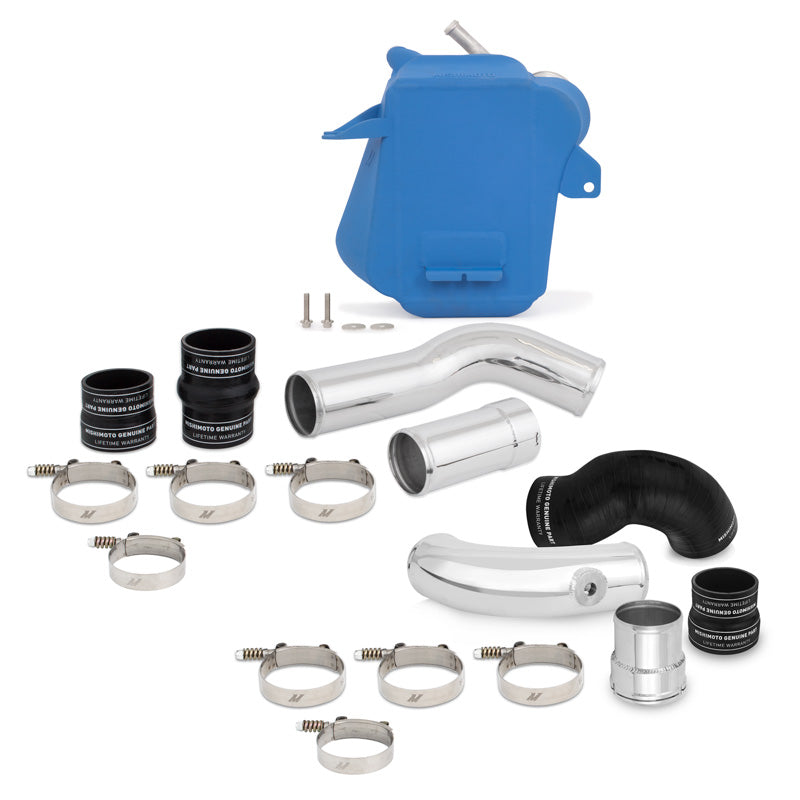

- TechSpec Includes: (1) Mishimoto Air-to-Water Intercooler--(1) Mandrel-Bent Cold-Side Pipe--(1) Mandrel-Bent Hot-Side Pipe--(2) CNC-Machined Aluminum Quick-Disconnect Couplers--(4) Silicone Boots w/ Duracore Technology--(8) Constant-Tension Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): N/A
- TechSpec Installation Notes: 11 lb-ft (15NM) recommended for all constant-tension worm gear clamps. These clamps have an operating range of 11-14 lb-ft (15-20NM). Do not exceed the maximum torque rating of 14 lb-ft (20NM)
- TechSpec Maximum Recommended Boost Pressure (PSI): N/A
- TechSpec Maximum Recommended Horsepower: N/A
- TechSpec Note: Executive Order D-759-4 currently covers model years 2011-2018
- TechSpec Outlet (in): N/A
- TechSpec Overall Height (in): N/A
- TechSpec Overall Length (in): N/A
- TechSpec Overall Width (in): N/A
- TechSpec Pipe Diameter: N/A
- TechSpec Pipe Length: N/A
- TechSpec Pipe Shape: N/A
- TechSpec Weight (lbs): N/A
- Universal Or Specific Fit: Specific
Extended Information:
- Country of Origin: China
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 15.49 x 15.49 x 15.49 inches
- Weight: 23.18 POUNDS
