Many prototypes entered, but only one came out on top. The engineers went through multiple different designs for this 2014-2017 Fiesta ST intercooler, weighing the benefits and downfalls of each. The final design consists of a tube-and-fin style intercooler in order to allow airflow to the radiator and reduce overall weight. The core size is 51-percent larger than stock, and also provides a 25-percent increase in internal core volume. During testing, this 2014-2017 Fiesta ST intercooler dropped intake temperatures by a huge 26 F! This kit is designed to be a direct fit, and fits with the stock or Mishimoto 2014-2017 Fiesta ST Intercooler Pipes. Combine the two, and you'll have a complete high-performance charged air system. This Fiesta ST intercooler kit includes air diversion plates to channel air through the cooler for maximum efficiency. The all-aluminum, TIG-welded construction is of the highest quality, and like all Mishimoto 2014-2017 Fiesta ST parts, it is backed by the Mishimoto Lifetime Warranty!
- Direct-fit for the 2014-2019 Ford Fiesta ST
- 26F (15C) reduction in AIT
- 51-percent increase in core size
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354027525
- CARB EO Number: D-759-6
- Core Color: Black
- Core Height: 6.35
- Core Length: 28.8
- Core Material: Aluminum
- Core Thickness: 2.59
- Grade Type: Performance
- Height: 6.36
- Inlet Fitting Gender: Male
- Inlet Outside Diameter: 2.55
- Inlet Tank Material: Aluminum
- Install Difficulty: 3
- Length: 40.1
- OptionLabel: Black
- Outlet Fitting Gender: Male
- Outlet Outside Diameter: 2.55
- SellingPoint01: Direct-fit for the 2014-2019 Ford Fiesta ST
- SellingPoint02: 26F (15C) reduction in AIT
- SellingPoint03: 51-percent increase in core size
- SellingPoint04: 25-percent increase in internal core volume and 226-percent increase in external fin surface area
- SellingPoint05: Includes air diversion plates to direct air through the intercooler core for maximum efficiency
- SellingPoint06: Stock location prevents airflow blockage to radiator and AC condenser
- SellingPoint07: Tube and fin construction for added weight reduction over bar and plate cores
- SellingPoint08: All-aluminum, TIG-welded
- SellingPoint09: Available in Sleek Silver or Stealth Black or Bold Gold
- SellingPoint10: Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
- SellingPoint11: Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
- SellingPoint12: Mishimoto Lifetime Warranty
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 2014-2019 Ford Fiesta ST
- TechSpec Centerline Radius: N/A
- TechSpec Chassis Codes: B3
- TechSpec Core Height (in): 6.35
- TechSpec Core Length (in): 28.8
- TechSpec Core Thickness (in): 2.59
- TechSpec Core Type: Tube-and-Fin
- TechSpec Engine Codes: 1.6L Ecoboost

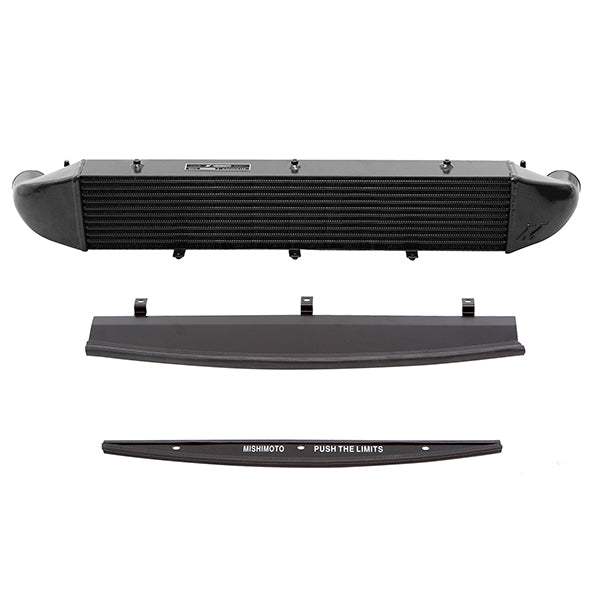

- TechSpec Includes: (1) Mishimoto Intercooler--(1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal--(1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 2.55
- TechSpec Installation Notes: N/A
- TechSpec Maximum Recommended Boost Pressure (PSI): 40
- TechSpec Maximum Recommended Horsepower: 325
- TechSpec Note: This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp.--Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal, please contact our customer experience team.
- TechSpec Outlet (in): 2.55
- TechSpec Overall Height (in): 6.36
- TechSpec Overall Length (in): 40.1
- TechSpec Overall Width (in): 6.15
- TechSpec Pipe Diameter: N/A
- TechSpec Pipe Length: N/A
- TechSpec Pipe Shape: N/A
- TechSpec Weight (lbs): 13.4
- Type: Tube-and-Fin
- Universal Or Specific Fit: Specific
- Width: 6.15
Extended Information:
- Country of Origin: China
- Emissions : CARB Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 44.55 x 10.3 x 11 inches
- Weight: 45.3 POUNDS
