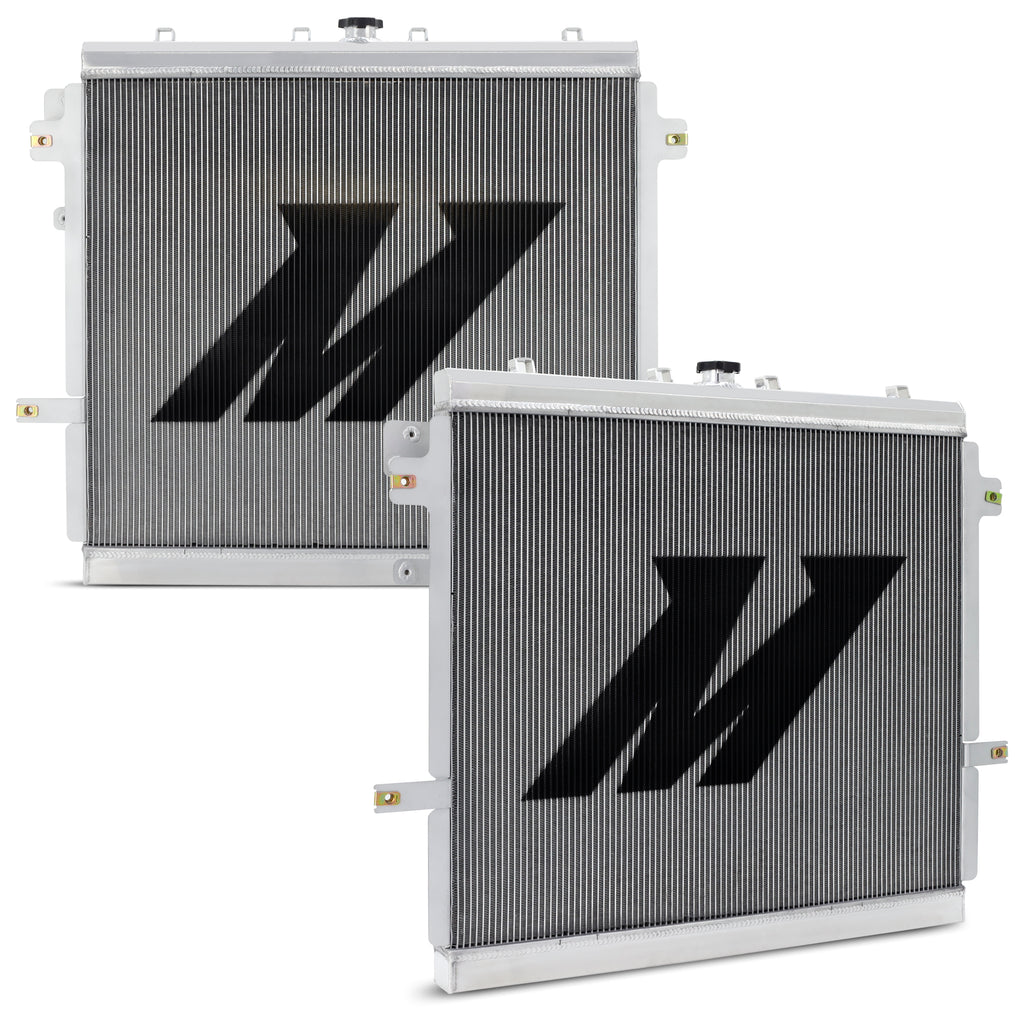

Upgrade your 2010-2024 Toyota 4Runner with a radiator built to match its legendary durability. Constructed from TIG-welded aluminum with robust aluminum side brackets, this radiator eliminates the brittle plastic components found in the stock unit, preventing cracks and leaks while ensuring a secure fit. A 60% increase in core volume and 120% increase in internal tube area paired with an oversized 7-row in-tank automatic transmission cooler provide superior cooling capacity, keeping temperatures under control whether you're towing heavy loads or tackling demanding trails. -- For added protection and efficiency, the radiator includes a magnetic drain plug to capture debris and a 1.3 bar high-pressure radiator cap that raises the coolant's boiling point for improved system performance. Backed by the Mishimoto Lifetime Warranty, this radiator is a true two-for-one upgrade that delivers unmatched reliability and cooling power for your 4Runner.
- TIG-welded aluminum construction for maximum durability and reliability
- Oversized 7-row in-tank transmission cooler for improved towing and off-roading capability
- 60% increased core volume over stock offers more efficient cooling in demanding conditions
Attributes:
- Brand Name: Mishimoto
- GTIN: 00840197725726
- Core Finish: Uncoated
- Core Height: 22.5
- Core Length: 22.5
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.7
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 1.42
- Inlet Diameter: 1.22
- Inlet Location: Top Right
- Install Difficulty: 3
- Outlet Diameter: 1.26
- Outlet Location: Bottom Left
- Overall Height: 27.4
- Overall Length: 4.8
- Overall Width: 32.1
- Radiator Cap Included: Yes
- SellingPoint01: TIG-welded aluminum construction for maximum durability and reliability
- SellingPoint02: Oversized 7-row in-tank transmission cooler for improved towing and off-roading capability
- SellingPoint03: 60% increased core volume over stock offers more efficient cooling in demanding conditions
- SellingPoint04: Durable aluminum side brackets offer secure and dependable mounting
- SellingPoint05: Replaces brittle plastic stock components with robust aluminum to prevent cracks and leaks
- SellingPoint06: Includes magnetic drain plug to capture debris and fragments in your cooling system
- SellingPoint07: Includes 1.3 bar high-pressure radiator cap to raise coolant boiling point and increase cooling system efficiency
- SellingPoint08: Mishimoto Lifetime Warranty
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 2010-2024 Toyota 4Runner
- TechSpec Chassis Codes: N280
- TechSpec Core Height (in): 22.5
- TechSpec Core Length (in): 22.5
- TechSpec Core Thickness (in): 1.7
- TechSpec DPI: N/A
- TechSpec Drain Plug Thread Size: M12X1.5
- TechSpec Engine Codes: 4.0L 1GR-FE V6
- TechSpec Fluid Capacity (gal): 1.42
- TechSpec Includes: (1) Mishimoto Performance Radiator--(1) Magnetic Drain Plug--(1) Mishimoto Performance Radiator Cap--(1) Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.22
- TechSpec Material: Aluminum
- TechSpec Note: N/A
- TechSpec Outlet (in): 1.26
- TechSpec Overall Height (in): 27.4
- TechSpec Overall Length (in): 4.8
- TechSpec Overall Width (in): 32.1
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: Yes
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 34.5 x 6.5 x 30 inches
- Weight: 26 POUNDS
