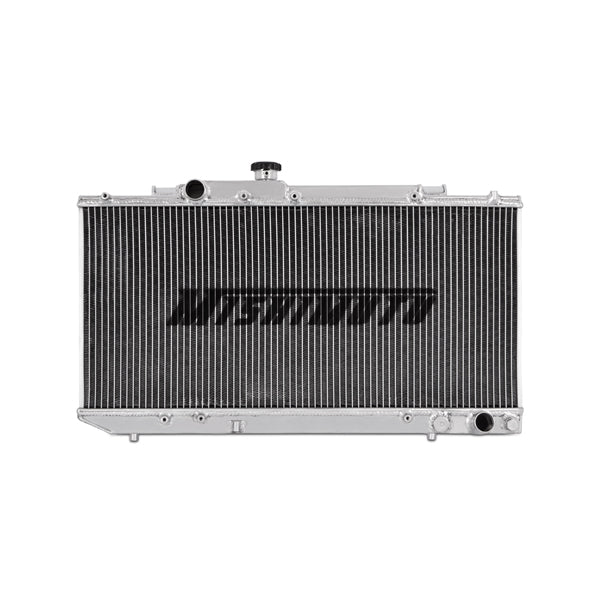

The Toyota Celica is ideal for engine upgrades and modifications that can provide substantial horsepower and torque increases.By replacing your current Celica radiator with a Mishimoto performance aluminum radiator, you will undoubtedly notice a cooler running engine.The Mishimoto Toyota Celica aluminum radiators are designed and engineered to maximize cooling efficiency and protect your car from the overheating.Installation is effortless with a direct OEM fit - no cutting or modification is required.
- Full aluminum design featuring robust TIG-welded construction
- Ideal replacement for the failure-prone stock plastic end tank radiator
- Features a two-row, 2.04-in thick brazed aluminum core which provides efficient fluid temperature reduction
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354807103
- Core Finish: Uncoated
- Core Height: 27.5
- Core Length: 12.52
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 2.04
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 1.94
- Inlet Diameter: 1.25
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 1.25
- Outlet Location: Bottom Right
- Overall Height: 28.1
- Overall Length: 17.3
- Overall Width: 2.54
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 1989-1994 Toyota Celica GT-Four/All-trac
- SellingPoint02: Full aluminum design featuring robust TIG-welded construction
- SellingPoint03: Ideal replacement for the failure-prone stock plastic end tank radiator
- SellingPoint04: Features a two-row, 2.04-in thick brazed aluminum core which provides efficient fluid temperature reduction
- SellingPoint05: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint06: Perfect for use under stressful driving conditions such as autocross, rallycross, or track events
- SellingPoint07: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
- SellingPoint08: Mishimoto Lifetime Warranty
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: N/A
- TechSpec Chassis Codes: ST185
- TechSpec Core Height (in): 27.5
- TechSpec Core Length (in): 12.52
- TechSpec Core Thickness (in): 2.04
- TechSpec DPI: 1174
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: 3S-GTE
- TechSpec Fluid Capacity (gal): 1.94
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.25
- TechSpec Material: Aluminum
- TechSpec Note: N/A
- TechSpec Outlet (in): 1.25
- TechSpec Overall Height (in): 28.1
- TechSpec Overall Length (in): 17.3
- TechSpec Overall Width (in): 2.54
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: China
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 30.9 x 21.4 x 6.4 inches
- Weight: 18.9 POUNDS
