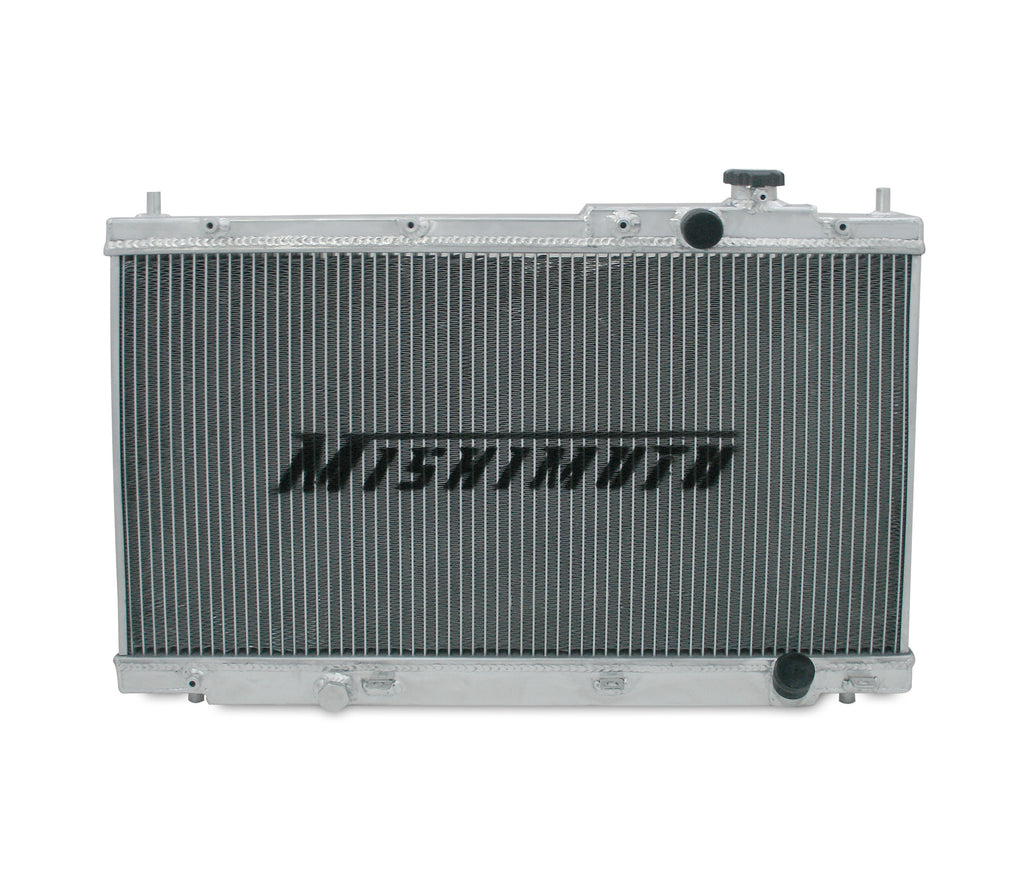

A Mishimoto performance aluminum radiator is the ideal upgrade to the stock Civic radiator.For a cooler more efficient running engine, all Mishimoto radiators are designed and engineered to maximize cooling, boost engine functions, and most importantly prevent your car from overheating.Made with 100-percent brazed aluminum and polished end tanks, this lightweight dual core radiator will enhance the overall performance and lifetime of your engine.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty.
- Constructed from durable, TIG-welded, aircraft quality aluminum
- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354799958
- Core Finish: Uncoated
- Core Height: 13.78
- Core Length: 26
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.57
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 1.52
- Inlet Diameter: 1.1
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 1.1
- Outlet Location: Bottom Right
- Overall Height: 26.9
- Overall Length: 17.9
- Overall Width: 2.07
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 2001-2005 Honda Civic w/ 1.7L engine
- SellingPoint02: Constructed from durable, TIG-welded, aircraft quality aluminum
- SellingPoint03: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint04: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint05: Mishimoto Lifetime Warranty
- SellingPoint06: N/A
- SellingPoint07: N/A
- SellingPoint08: N/A
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: N/A
- TechSpec Chassis Codes: EM2
- TechSpec Core Height (in): 13.78
- TechSpec Core Length (in): 26
- TechSpec Core Thickness (in): 1.57
- TechSpec DPI: 2354
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: D17a1D17a2
- TechSpec Fluid Capacity (gal): 1.52
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.1
- TechSpec Material: Aluminum
- TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
- TechSpec Outlet (in): 1.1
- TechSpec Overall Height (in): 26.9
- TechSpec Overall Length (in): 17.9
- TechSpec Overall Width (in): 2.07
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: China
- Emissions : 4
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 31 x 6.75 x 22.5 inches
- Weight: 18.21 POUNDS
