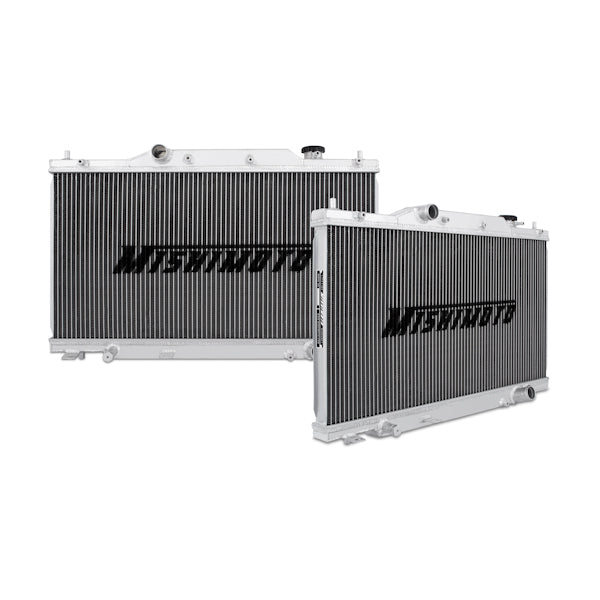

A Mishimoto performance aluminum radiator is the ideal upgrade to the stock Civic radiator. For a cooler more efficient running engine, all Mishimoto radiators are designed and engineered to maximize cooling, boost engine functions, and most importantly prevent your car from overheating. Made with 100-percent brazed aluminum and polished end tanks, this lightweight dual core radiator will enhance the overall performance and lifetime of your engine. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and are backed with limited lifetime warranty. Fits USDM EP3 Civic SI (2002-2005) Fits UKDM EP3 Civic Type R (2002-2005)
- Full aluminum construction with durable TIG-welded end tanks
- Features a two-row, 1.42-in thick brazed aluminum core which provides efficient fluid temperature regulation on the street and track
- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354803303
- Core Finish: Uncoated
- Core Height: 26.23
- Core Length: 13.78
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.42
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 1.58
- Inlet Diameter: 1.26
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 1.26
- Outlet Location: Bottom Right
- Overall Height: 17.95
- Overall Length: 26.93
- Overall Width: 1.92
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 2002-2005 Honda Civic Si w/ K20 engine
- SellingPoint02: Full aluminum construction with durable TIG-welded end tanks
- SellingPoint03: Features a two-row, 1.42-in thick brazed aluminum core which provides efficient fluid temperature regulation on the street and track
- SellingPoint04: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint05: Polished end tanks improve engine bay aesthetics
- SellingPoint06: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint07: Mishimoto Lifetime Warranty
- SellingPoint08: N/A
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 2002-2005 UKDM EP3 Civic Type R
- TechSpec Chassis Codes: EP3
- TechSpec Core Height (in): 26.23
- TechSpec Core Length (in): 13.78
- TechSpec Core Thickness (in): 1.42
- TechSpec DPI: 2574
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: K20a3
- TechSpec Fluid Capacity (gal): 1.58
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.26
- TechSpec Material: N/A
- TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
- TechSpec Outlet (in): 1.26
- TechSpec Overall Height (in): 17.95
- TechSpec Overall Length (in): 26.93
- TechSpec Overall Width (in): 1.92
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: China
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 22.5 x 7.5 x 30.7 inches
- Weight: 19.1 POUNDS
