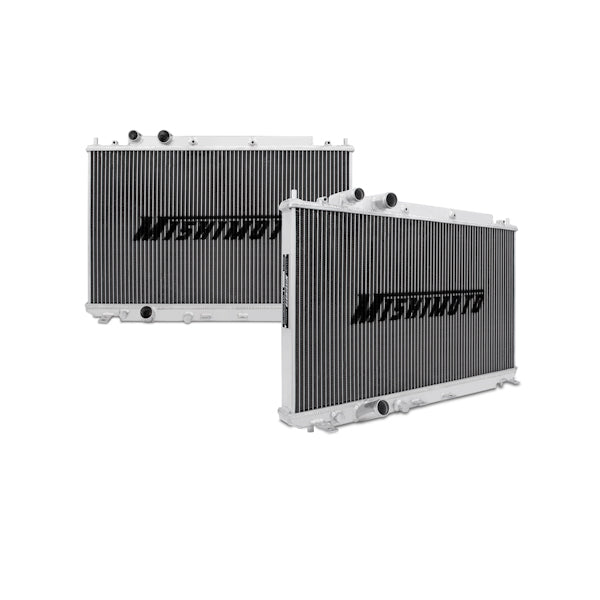

A Mishimoto performance aluminum radiator is the ideal upgrade to the stock 2006-2011 Honda Civic Si radiator.For a cooler more efficient running engine, all Mishimoto radiators are designed and engineered to maximize cooling, boost engine functions, and most importantly prevent your car from overheating.Made with 100-percent brazed aluminum and polished end tanks, this lightweight two row core radiator will enhance the overall performance and lifetime of your engine.All Mishimoto radiators are backed by a lifetime warranty.Check out the 2006-2011 Civic Si hose kit, for even greater cooling efficiency.
- Full aluminum construction with durable TIG-welded end tanks
- Features a two-row, 1.57-in thick brazed aluminum core which provides efficient fluid temperature regulation on the street and track
- Polished end tanks provide a stylish upgrade to your engine bay
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354798890
- Core Finish: Uncoated
- Core Height: 26.32
- Core Length: 14.72
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.57
- Down Flow Or Cross Flow Type: Cross Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 2.03
- Inlet Diameter: 1.25
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 1.25
- Outlet Location: Bottom Left
- Overall Height: 26.8
- Overall Length: 18.2
- Overall Width: 2.07
- Radiator Cap Included: No
- SellingPoint01: Direct fit for the 2006-2011 Honda Civic Si
- SellingPoint02: Full aluminum construction with durable TIG-welded end tanks
- SellingPoint03: Features a two-row, 1.57-in thick brazed aluminum core which provides efficient fluid temperature regulation on the street and track
- SellingPoint04: Polished end tanks provide a stylish upgrade to your engine bay
- SellingPoint05: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint06: Mishimoto Lifetime Warranty
- SellingPoint07: N/A
- SellingPoint08: N/A
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: Honda Civic 1.8L L4 2006-2011--Honda Civic 2.0L L4 2006-2011
- TechSpec Chassis Codes: FG1FG2FA1FA5
- TechSpec Core Height (in): 26.32
- TechSpec Core Length (in): 14.72
- TechSpec Core Thickness (in): 1.57
- TechSpec DPI: 2927
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: K20z3
- TechSpec Fluid Capacity (gal): 2.03
- TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.25
- TechSpec Material: Aluminum
- TechSpec Note: N/A
- TechSpec Outlet (in): 1.25
- TechSpec Overall Height (in): 26.8
- TechSpec Overall Length (in): 18.2
- TechSpec Overall Width (in): 2.07
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 30.8 x 22.3 x 6.7 inches
- Weight: 14.75 POUNDS
