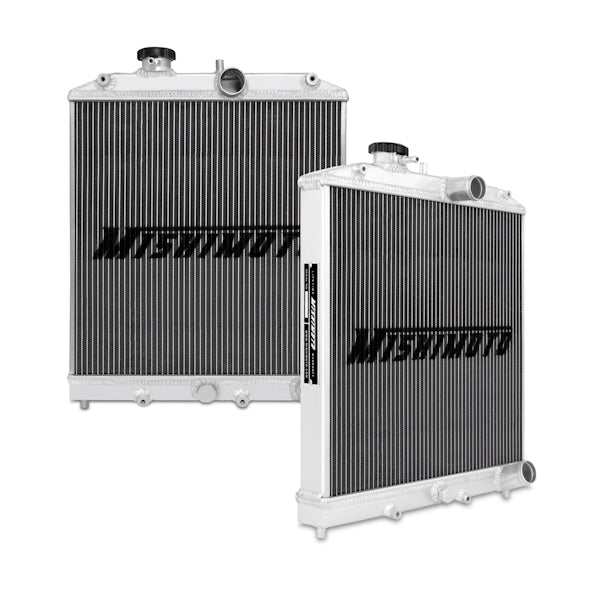

A high-performance Civic demands a cooling system that can keep up on the street and the track. For applications requiring the most efficient heat exchanger, the Mishimoto X-Line Honda Civic Performance Aluminum Radiator provides three cooling rows packaged in a massive 2-inch thick core. The three-row design provides additional surface contact points for higher efficiency and lower temperatures. To provide additional cooling performance this radiator is constructed using a 100-percent brazed aluminum core with TIG-welded aluminum end tanks for superior heat dissipation, reliability, and strength. This performance radiator includes a high-pressure 1.3 bar radiator cap that effectively raises the boiling point of coolant to create a safer and more efficient system, perfect for your time attack EG or all-motor EK. The Mishimoto Honda Civic X-line radiator features a compact yet highly efficient design, making it perfect for custom applications where space constraints limit the use of traditionally sized radiators. Despite featuring a drastic increase in core size compared to stock, this radiator is a direct fit for the 1992-2000 Honda Civic and requires no modification for installation. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
- Premium radiator has 3-row core for improved strength and reliability
- 16-percent thinner-than-stock tubes allow for more surface contact, increasing cooling efficiency
- Greater density of rows for higher cooling capacity.
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354803266
- Core Finish: Uncoated
- Core Height: 14.09
- Core Length: 13.78
- Core Material: Aluminum
- Core Row Quantity: 3
- Core Thickness: 2
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 0
- Inlet Diameter: 1.26
- Inlet Location: Top Right
- Install Difficulty: 3
- Outlet Diameter: 1.26
- Outlet Location: Bottom Right
- Overall Height: 18.5
- Overall Length: 14.6
- Overall Width: 2.5
- Radiator Cap Included: Yes
- SellingPoint01: Premium radiator has 3-row core for improved strength and reliability
- SellingPoint02: 16-percent thinner-than-stock tubes allow for more surface contact, increasing cooling efficiency
- SellingPoint03: Greater density of rows for higher cooling capacity.
- SellingPoint04: More contact points for additional heat transfer
- SellingPoint05: 3-row design creates more air turbulence, maximizing cooling efficiency
- SellingPoint06: Includes magnetic drain plug
- SellingPoint07: Includes a 1.3 Bar High-Pressure Radiator Cap
- SellingPoint08: Mishimoto Lifetime Warranty
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 1992-2000 Honda Civic (All)--1993-1997 Honda Civic Del Sol
- TechSpec Chassis Codes: EG1EH6EG2EH2EH3EH9EJ1EJ2EJ6EJ7EJ8EM1
- TechSpec Core Height (in): 14.09
- TechSpec Core Length (in): 13.78
- TechSpec Core Thickness (in): 2
- TechSpec DPI: 1290
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: D15b1D15b7D15b8D15z1D16z6D16y5D16y7D16y8B16a2B16a3
- TechSpec Fluid Capacity (gal): N/A
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.26
- TechSpec Material: N/A
- TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
- TechSpec Outlet (in): 1.26
- TechSpec Overall Height (in): 18.5
- TechSpec Overall Length (in): 14.6
- TechSpec Overall Width (in): 2.5
- TechSpec Rows: 3
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: China
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 21.8 x 17.3 x 7.2 inches
- Weight: 10.02 POUNDS
