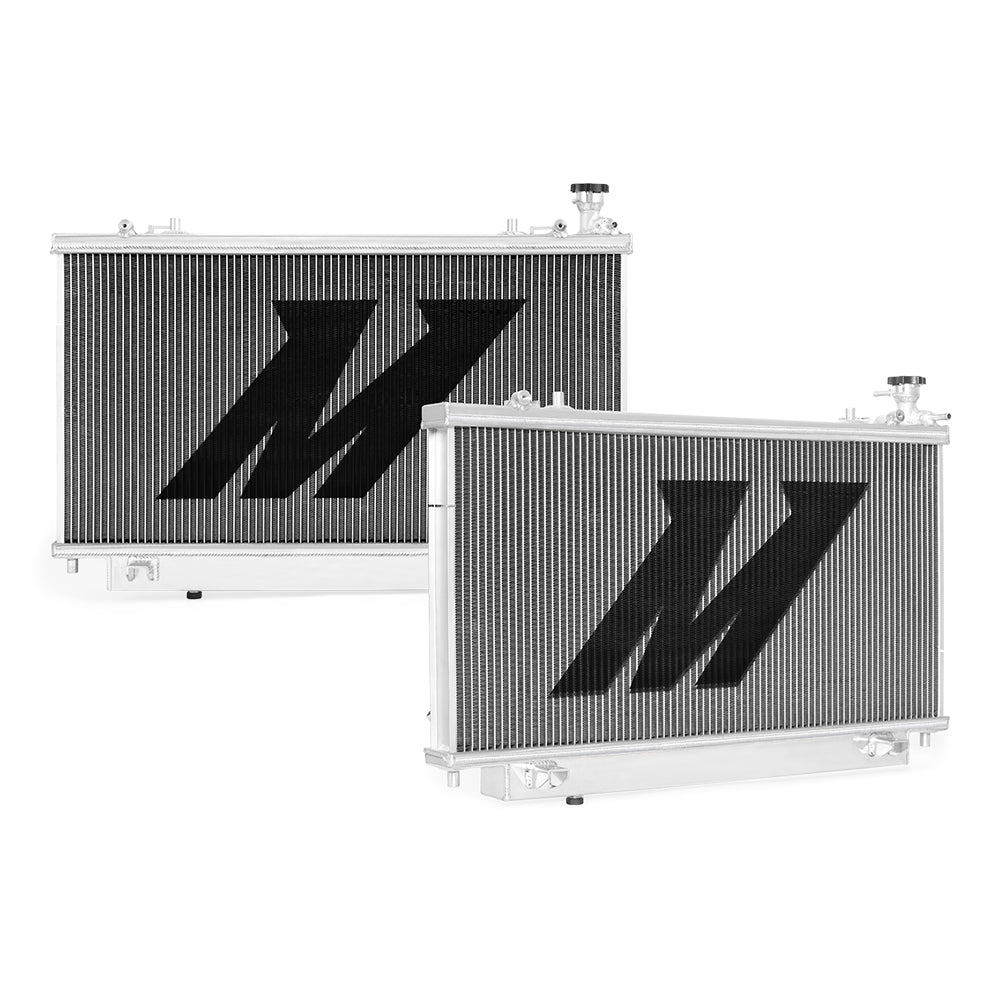

Give some extra cooling power to the V8 under the hood of your 2006-2012 Holden VE Commodore with the Mishimoto Performance Aluminum Radiator. Our radiator design swaps out the thin core and plastic end tanks for full aluminum construction, TIG-welded for maximum durability. The Mishimoto design also features a 2.2" thick, 2-row core for maximum cooling, no matter wherever you drive your Commodore. The Mishimoto 2006-20012 Holden VE Commodore V8 Performance Aluminum Radiator is available in a polished finish and provides optimal cooling for both manual and automatic vehicles. This radiator also includes the Mishimoto Lifetime Warranty for a worry-free installation.
- 39-percent increase in core volume
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 2.2-in thick, efficiently brazed aluminum core
Attributes:
- Brand Name: Mishimoto
- GTIN: 00811580037436
- Core Finish: Uncoated
- Core Height: 15.1
- Core Length: 29.4
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 2.2
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 0
- Inlet Diameter: 0
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 0
- Outlet Location: Bottom Right
- Overall Height: 32.4
- Overall Length: 15.1
- Overall Width: 5.9
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the Holden VE Commodore V8 Auto/Manual, 2006-2012
- SellingPoint02: 39-percent increase in core volume
- SellingPoint03: Full aluminum construction including durable, TIG-welded end tanks
- SellingPoint04: Features a two-row, 2.2-in thick, efficiently brazed aluminum core
- SellingPoint05: Provides efficient temperature reduction on the street, track, and drag strip
- SellingPoint06: Increased fluid capacity for optimal heat dissipation
- SellingPoint07: Efficient temperature regulation for both stock and modified vehicles
- SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint09: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint10: Mishimoto Lifetime Warranty
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 2006-2012 Holden VE Commodore
- TechSpec Chassis Codes: VE
- TechSpec Core Height (in): 15.1
- TechSpec Core Length (in): 29.4
- TechSpec Core Thickness (in): 2.2
- TechSpec DPI: N/A
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: L98--L76--L77
- TechSpec Fluid Capacity (gal): N/A
- TechSpec Includes: Aluminum Radiator-- Radiator Cap-- Magnetic Drain Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): N/A
- TechSpec Material: Aluminum
- TechSpec Note: N/A
- TechSpec Outlet (in): N/A
- TechSpec Overall Height (in): 32.4
- TechSpec Overall Length (in): 15.1
- TechSpec Overall Width (in): 5.9
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: China
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 36.9 x 9 x 24.9 inches
- Weight: 46.84 POUNDS
