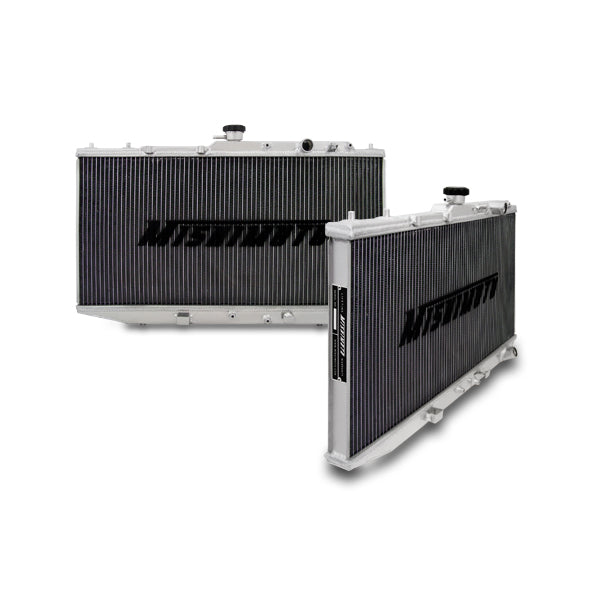

A Mishimoto performance aluminum radiator is the ideal upgrade to the stock CRX radiator.For a cooler more efficient running engine, all Mishimoto radiators are designed and engineered to maximize cooling, boost engine functions, and most importantly prevent your car from overheating.Made with 100-percent brazed aluminum and polished end tanks, this lightweight dual core radiator will enhance the overall performance and lifetime of your engine.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty.A perfect match to the Mishimoto CRX Fan Shroud kit.
- Functions perfectly with DX, HF and Si models
- Full aluminum construction with durable, TIG-welded end tanks
- Features a two-row, 1.34-in thick brazed aluminum core, providing ideal fluid temperatures during any driving condition
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354797404
- Core Finish: Uncoated
- Core Height: 26.5
- Core Length: 12.89
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.34
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 1.64
- Inlet Diameter: 1.1
- Inlet Location: Top Right
- Install Difficulty: 3
- Outlet Diameter: 1.1
- Outlet Location: Bottom Right
- Overall Height: 27.2
- Overall Length: 16
- Overall Width: 1.61
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 1988-1991 Honda CRX
- SellingPoint02: Functions perfectly with DX, HF and Si models
- SellingPoint03: Full aluminum construction with durable, TIG-welded end tanks
- SellingPoint04: Features a two-row, 1.34-in thick brazed aluminum core, providing ideal fluid temperatures during any driving condition
- SellingPoint05: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint06: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
- SellingPoint07: Mishimoto Lifetime Warranty
- SellingPoint08: N/A
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 1988-1991 Honda CRX (All)--1988-1991 Honda Civic (All)
- TechSpec Chassis Codes: ED3ED4ED6ED7ED8ED9EE2EE4
- TechSpec Core Height (in): 26.5
- TechSpec Core Length (in): 12.89
- TechSpec Core Thickness (in): 1.34
- TechSpec DPI: 886
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: D15b2D15b7D16a6
- TechSpec Fluid Capacity (gal): 1.64
- TechSpec Includes: Mishimoto Radiator--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.1
- TechSpec Material: N/A
- TechSpec Note: N/A
- TechSpec Outlet (in): 1.1
- TechSpec Overall Height (in): 27.2
- TechSpec Overall Length (in): 16
- TechSpec Overall Width (in): 1.61
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 31 x 21.7 x 6.7 inches
- Weight: 15.4 POUNDS
