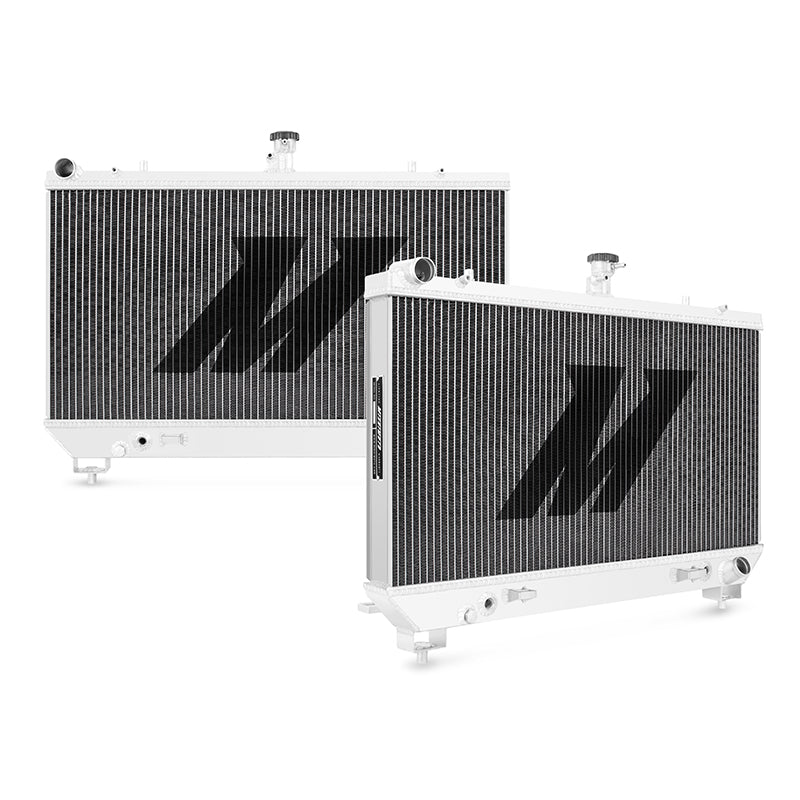

The Mishimoto performance aluminum radiator for the 2010-2011 Chevrolet Camaro SS is the ideal upgrade to the stock Camaro radiator.The last thing you want is to be limited by the factory unit during a hot day at the strip or when you're stuck in traffic.Our engineers know that, and our design reflects this by increasing cooling efficiency by 30-percent.Curious how much 30-percent really is? Well considering our radiator lets your cooling system gain gallon of extra capacity and lowers coolant temps by 20F, that 30-percent is pretty impressive.With polished end tanks and all aluminum construction, the Mishimoto Camaro SS radiator looks as good as it performs!
- Full aluminum construction with durable, TIG-welded end tanks
- Features a two-row, 2.20-in thick brazed aluminum core, providing ideal fluid temperatures on the street and strip
- .5 gal of additional fluid capacity
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748666000186
- Core Finish: Uncoated
- Core Height: 15.1
- Core Length: 29.8
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 2.2
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 3.34
- Inlet Diameter: 1.38
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 1.38
- Outlet Location: Bottom Right
- Overall Height: 30.6
- Overall Length: 23.3
- Overall Width: 5.6
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 2010-2011 Chevrolet Camaro SS
- SellingPoint02: Full aluminum construction with durable, TIG-welded end tanks
- SellingPoint03: Features a two-row, 2.20-in thick brazed aluminum core, providing ideal fluid temperatures on the street and strip
- SellingPoint04: .5 gal of additional fluid capacity
- SellingPoint05: Lowers radiator outlet temperatures by 20 F
- SellingPoint06: 20-percent greater cooling efficiency
- SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint09: Mishimoto Lifetime Warranty
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 2010-2011 Chevy Camaro SS (AT & MT)
- TechSpec Chassis Codes: Zeta
- TechSpec Core Height (in): 15.1
- TechSpec Core Length (in): 29.8
- TechSpec Core Thickness (in): 2.2
- TechSpec DPI: 13142
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: L99--LS3
- TechSpec Fluid Capacity (gal): 3.34
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.38
- TechSpec Material: Aluminum
- TechSpec Note: N/A
- TechSpec Outlet (in): 1.38
- TechSpec Overall Height (in): 30.6
- TechSpec Overall Length (in): 23.3
- TechSpec Overall Width (in): 5.6
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: China
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 28.5 x 23.5 x 6.75 inches
- Weight: 20.1 POUNDS
