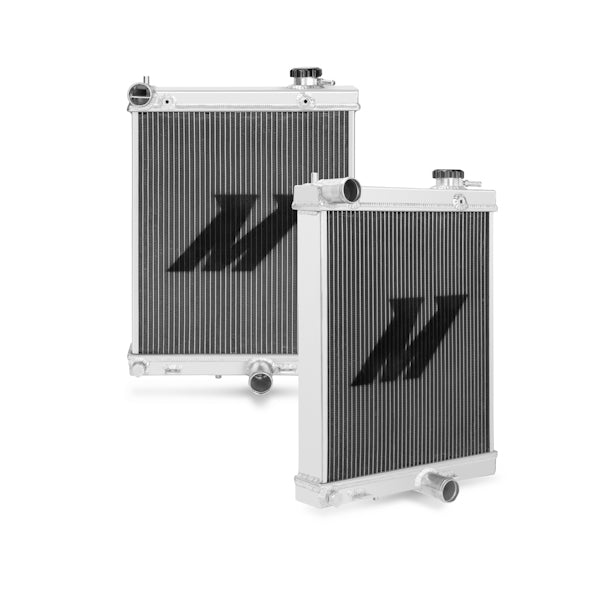

Freeing up engine bay space for a front-facing or large turbocharger can be a challenge in the Mitsubishi Lancer Evolution. Keep your high-horsepower Evo cool with the Mishimoto Lancer Evolution 7/8/9 Half-Size Performance Aluminum Radiator. This radiator features full-aluminum construction with precision TIG-welded end tanks for superior heat dissipation and durability. The large 2.05-inch thick brazed aluminum core provides clearance for upgraded turbocharger setups while maintaining optimal coolant temperatures for runs at the drag strip or through the autocross course. This radiator features a unique internal baffle that provides superior fluid dispersion resulting in lower coolant temperatures. Included with this radiator is a Mishimoto Magnetic Oil Drain Plug, M12 x 1.5 with high-quality dowty seal for removal of any metal fragments in your cooling system. The radiator also includes a Mishimoto 1.3 Bar High-Pressure Radiator Cap that effectively raises the boiling point of coolant to create a safer and more efficient system. The Mishimoto Lancer Evolution Half-Size Performance Aluminum Radiator works perfectly with factory coolant hoses or a Mishimoto silicone Radiator Hose Kit and includes an upper radiator stay, making this a hassle-free, bolt-on installation. Installing a capable fan solution is easy with the Mishimoto radiator thanks to the incorporated stock shroud-mounting points. Optionally a slim fan can be installed for improved clearance. This radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
- Half-size design provides clearance for large twin-scroll and forward-facing turbocharger setups
- All-aluminum construction with TIG-welded end tanks
- 2.05-in thick brazed aluminum core provides optimal cooling and superior durability
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354011128
- Core Finish: Uncoated
- Core Height: 15
- Core Length: 13.38
- Core Material: Aluminum
- Core Row Quantity: 3
- Core Thickness: 2.05
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 1.79
- Inlet Diameter: 1.38
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 1.38
- Outlet Location: Bottom Center
- Overall Height: 19.4
- Overall Length: 14
- Overall Width: 4.4
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 2001-2007 Mitsubishi Lancer Evolution
- SellingPoint02: Half-size design provides clearance for large twin-scroll and forward-facing turbocharger setups
- SellingPoint03: All-aluminum construction with TIG-welded end tanks
- SellingPoint04: 2.05-in thick brazed aluminum core provides optimal cooling and superior durability
- SellingPoint05: Internal baffle provides exceptional fluid dispersion throughout the core and optimal cooling efficiency
- SellingPoint06: Applicable for use with stock or Mishimoto silicone radiator hoses
- SellingPoint07: Includes mounting points for stock fan shroud
- SellingPoint08: Includes magnetic drain plug with dowty seal, 1.3 bar high-pressure radiator cap, and upper radiator aluminum stay
- SellingPoint09: Mishimoto Lifetime Warranty
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: N/A
- TechSpec Chassis Codes: CT9-A
- TechSpec Core Height (in): 15
- TechSpec Core Length (in): 13.38
- TechSpec Core Thickness (in): 2.05
- TechSpec DPI: N/A
- TechSpec Drain Plug Thread Size: M12
- TechSpec Engine Codes: 4G63
- TechSpec Fluid Capacity (gal): 1.79
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Upper Radiator Aluminum Stay--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.38
- TechSpec Material: N/A
- TechSpec Note: N/A
- TechSpec Outlet (in): 1.38
- TechSpec Overall Height (in): 19.4
- TechSpec Overall Length (in): 14
- TechSpec Overall Width (in): 4.4
- TechSpec Rows: 3
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 21 x 6.75 x 17 inches
- Weight: 5.45 POUNDS
