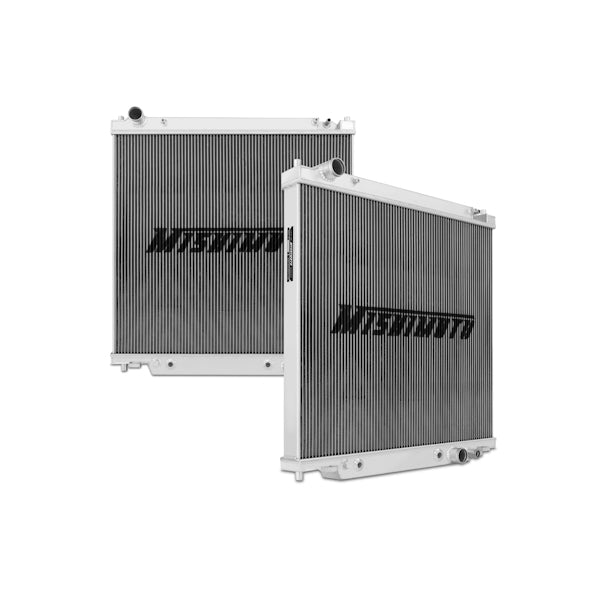

it bolts right up to the stock fan shroud, allowing for easy installation. Have a gas-powered Super Duty or Excursion in your fleet? We've got you covered, too, as this radiator is a direct replacement for the 5.4L and 6.8L Triton models as well! Included with the Mishimoto Powerstroke aluminum radiator is our magnetic drain plug and signature Lifetime Warranty.
- Full aluminum construction with durable, TIG-welded end tanks
- Features a two-row, 2.2-in thick brazed aluminum core, providing ideal fluid temperature regulation
- Increased fluid capacity and superior heat dissipation
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354810363
- Core Finish: Uncoated
- Core Height: 26.5
- Core Length: 29.4
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 2.2
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 9.25
- Inlet Diameter: 1.77
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 1.77
- Outlet Location: Bottom Right
- Overall Height: 30
- Overall Length: 31.7
- Overall Width: 4.7
- Radiator Cap Included: No
- SellingPoint01: Direct fit for 1999-2005 F-250, 350, 450, 550 and Excursion with the 5.4L, 6.8L, and 7.3L
- SellingPoint02: Full aluminum construction with durable, TIG-welded end tanks
- SellingPoint03: Features a two-row, 2.2-in thick brazed aluminum core, providing ideal fluid temperature regulation
- SellingPoint04: Increased fluid capacity and superior heat dissipation
- SellingPoint05: Perfect upgrade to the stock plastic end tank radiator
- SellingPoint06: Ideal for trucks transporting heavy loads, towing, and/or driving in extreme environments
- SellingPoint07: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
- SellingPoint08: Mishimoto Lifetime Warranty
- SellingPoint09: N/A
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 1999-2004 Ford F-250 w/ 5.4L/6.8L/7.3L--1999-2004 Ford F-350 w/ 5.4L/6.8L/7.3L--1999-2004 Ford F-450 w/ 6.8L/7.3L--1999-2003 Ford F-550 w/ 6.8L/7.3L--2000-2005 Ford Excursion w/ 5.4L/6.8L/7.3
- TechSpec Chassis Codes: N/A
- TechSpec Core Height (in): 29.84
- TechSpec Core Length (in): 26.46
- TechSpec Core Thickness (in): 2.2
- TechSpec DPI: 2171
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: N/A
- TechSpec Fluid Capacity (gal): 9.25
- TechSpec Includes: Mishimoto Radiator-- Magnetic Drain Plug--(4) Transmission Adapters--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.77
- TechSpec Material: Aluminum
- TechSpec Note: The transmission cooler fittings are: 1/2”-20 SAE and 5/8”-18 SAE female flare fittings. This product comes with two adapters of each size to ensure fitment with your vehicle
- TechSpec Outlet (in): 1.77
- TechSpec Overall Height (in): 31.73
- TechSpec Overall Length (in): 30.21
- TechSpec Overall Width (in): 4.69
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 33.4 x 37.8 x 6.8 inches
- Weight: 34 POUNDS
