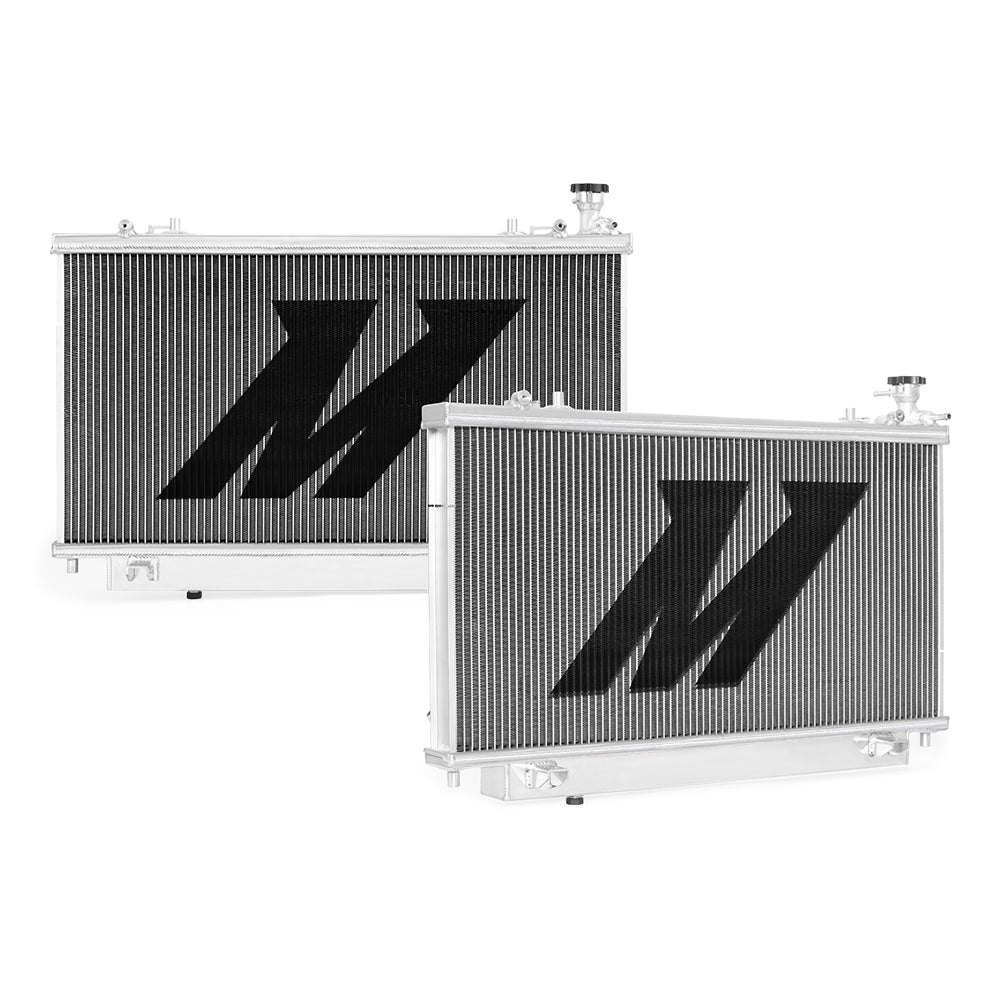

Give some extra cooling power to the V8 under the hood of your 2008-2009 Pontiac G8 with this Mishimoto Performance Aluminum Radiator. Our radiator replaces the stock thin core and plastic end tanks with a 2.2 inch-thick core and fully TIG-welded aluminum construction for maximum durability. Our custom-engineered, two-row core provides all the cooling your 6.0L V8 needs for everyday commuting, thrashing some back roads, or a day at the track. The Mishimoto 2008-2009 Pontiac GTO Performance Aluminum Radiator is available in a polished finish and provides optimal cooling for both manual and automatic vehicles. This radiator also includes the Mishimoto Lifetime Warranty for a lifetime of worry-free cooling.
- 39-percent increase in core volume
- All-aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 56mm-thick core for maximum cooling
Attributes:
- Brand Name: Mishimoto
- GTIN: 00840197719770
- Core Finish: Uncoated
- Core Height: 15.1
- Core Length: 29.4
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 2.2
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 0
- Inlet Diameter: 0
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 0
- Outlet Location: Bottom Right
- Overall Height: 32.4
- Overall Length: 15.1
- Overall Width: 5.9
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 2008-2009 Pontiac G8
- SellingPoint02: 39-percent increase in core volume
- SellingPoint03: All-aluminum construction including durable, TIG-welded end tanks
- SellingPoint04: Features a two-row, 56mm-thick core for maximum cooling
- SellingPoint05: Provides effective temperature reduction on the street, track, or drag strip
- SellingPoint06: Increased fluid capacity for improved heat dissipation
- SellingPoint07: Efficient temperature regulation for both stock and modified vehicles
- SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint09: Includes 19 PSI High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint10: Mishimoto Lifetime Warranty
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 2008-2009 Pontiac G8 V8
- TechSpec Chassis Codes: Zeta
- TechSpec Core Height (in): 15.1
- TechSpec Core Length (in): 29.4
- TechSpec Core Thickness (in): 2.2
- TechSpec DPI: N/A
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: L98--L76--L77
- TechSpec Fluid Capacity (gal): N/A
- TechSpec Includes: Aluminum Radiator-- Radiator Cap-- Magnetic Drain Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): N/A
- TechSpec Material: Aluminum
- TechSpec Note: This radiator has not been tested on 2009.5 or GXP models.
- TechSpec Outlet (in): N/A
- TechSpec Overall Height (in): 32.4
- TechSpec Overall Length (in): 15.1
- TechSpec Overall Width (in): 5.9
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: China
- Emissions : 4
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26.4 x 9 x 25 inches
- Weight: 24 POUNDS
