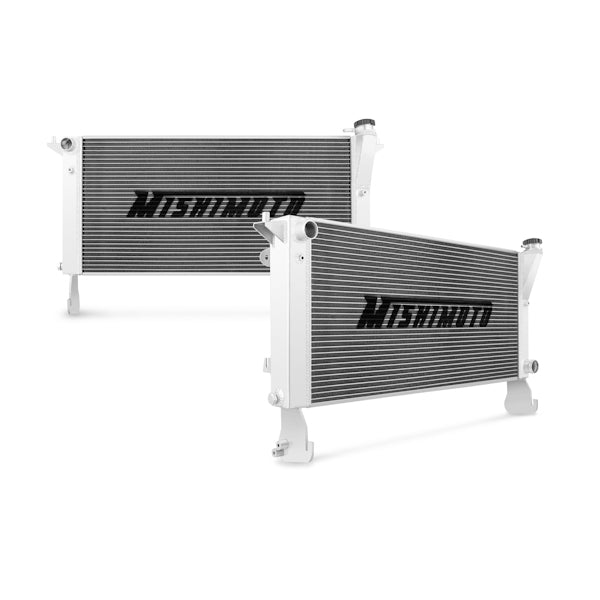

by replacing your current 2010-2012 Hyundai Genesis Coupe 2.0T radiator with a top of the line Mishimoto performance aluminum radiator you will undoubtedly notice a cooler, more efficient running engine.The new application is specifically designed and engineered as a direct OEM fit with no modification required for easy installation.
- Full aluminum construction with durable, TIG-welded end tanks
- Functions with both stock and aftermarket front-mount intercoolers
- Features a two-row, 1.97-in thick, efficient brazed aluminum core
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748354803495
- Core Finish: Uncoated
- Core Height: 12.5
- Core Length: 25.5
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.97
- Down Flow Or Cross Flow Type: Cross Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 1.64
- Inlet Diameter: 1.4
- Inlet Location: Top Left
- Install Difficulty: 4
- Outlet Diameter: 1.4
- Outlet Location: Bottom Right
- Overall Height: 32.48
- Overall Length: 17.8
- Overall Width: 2.47
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 2010-2012 Hyundai Genesis Coupe 2.0T
- SellingPoint02: Full aluminum construction with durable, TIG-welded end tanks
- SellingPoint03: Functions with both stock and aftermarket front-mount intercoolers
- SellingPoint04: Features a two-row, 1.97-in thick, efficient brazed aluminum core
- SellingPoint05: Increased fluid capacity and superior heat dissipation
- SellingPoint06: Provides optimal heat exchange for both stock and highly modified vehicles
- SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint09: Mishimoto Lifetime Warranty
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 2010-2012 Hyundai Genesis Coupe 2.0T
- TechSpec Chassis Codes: BK
- TechSpec Core Height (in): 12.5
- TechSpec Core Length (in): 25.5
- TechSpec Core Thickness (in): 1.97
- TechSpec DPI: 13120
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: N/A
- TechSpec Fluid Capacity (gal): 1.64
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.4
- TechSpec Material: Aluminum
- TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto transmission cooler (P/N: MMTC-U)
- TechSpec Outlet (in): 1.4
- TechSpec Overall Height (in): 32.48
- TechSpec Overall Length (in): 17.8
- TechSpec Overall Width (in): 2.47
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: China
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 33.6 x 7.6 x 24 inches
- Weight: 30.1 POUNDS
