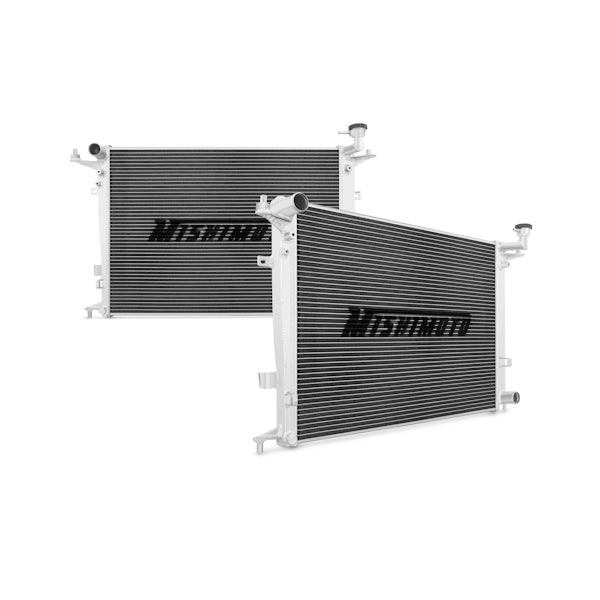

by replacing your current 2010-2012 Hyundai Genesis Coupe 3.8 radiator with a top of the line Mishimoto performance aluminum radiator you will undoubtedly notice a cooler, more efficient running engine.Our testing showed a 30 degree decrease in temperatures over stock.The new application is specifically designed and engineered as a direct OEM fit with no modification required for easy installation.
- Full aluminum construction with durable, TIG-welded end tanks
- Features a two-row, 1.34-in thick, efficient brazed aluminum core
- Increased fluid capacity and superior heat dissipation
Attributes:
- Brand Name: Mishimoto
- GTIN: 00748666002258
- Core Finish: Uncoated
- Core Height: 19.21
- Core Length: 25.12
- Core Material: Aluminum
- Core Row Quantity: 2
- Core Thickness: 1.34
- Down Flow Or Cross Flow Type: Cross Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 2.87
- Inlet Diameter: 1.46
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 1.46
- Outlet Location: Bottom Right
- Overall Height: 33.1
- Overall Length: 20.9
- Overall Width: 5.4
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 2010-2012 Hyundai Genesis Coupe 3.8
- SellingPoint02: Full aluminum construction with durable, TIG-welded end tanks
- SellingPoint03: Features a two-row, 1.34-in thick, efficient brazed aluminum core
- SellingPoint04: Increased fluid capacity and superior heat dissipation
- SellingPoint05: Proven 50-percent increase in radiator efficiency compared to the stock unit
- SellingPoint06: Provides optimal heat exchange for both stock and forced induction vehicles
- SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint09: Mishimoto Lifetime Warranty
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 2010-2012 Hyundai Genesis 3.8L V6
- TechSpec Chassis Codes: BK
- TechSpec Core Height (in): 19.21
- TechSpec Core Length (in): 25.12
- TechSpec Core Thickness (in): 1.34
- TechSpec DPI: 13059
- TechSpec Drain Plug Thread Size: M12 x 1.5
- TechSpec Engine Codes: 3.8L Lambda V6
- TechSpec Fluid Capacity (gal): 2.87
- TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Bleeder Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): 1.46
- TechSpec Material: Aluminum
- TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
- TechSpec Outlet (in): 1.46
- TechSpec Overall Height (in): 33.1
- TechSpec Overall Length (in): 20.9
- TechSpec Overall Width (in): 5.4
- TechSpec Rows: 2
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: No
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 36.3 x 8 x 24.6 inches
- Weight: 45.5 POUNDS
