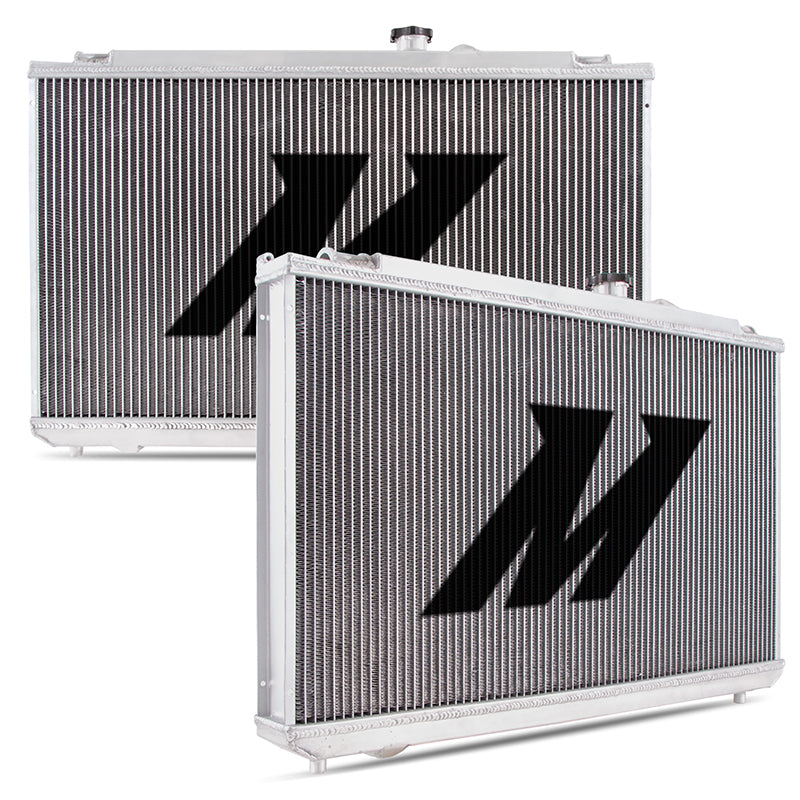

Give some extra cooling power to the JZ under the hood of your 1996-2001 Toyota Chaser with the Mishimoto JZX100 Performance aluminum Radiator. Our radiator design swaps out the thin core and plastic end tanks for full aluminum construction, TIG-welded for maximum durability. The Mishimoto design also features a 2.2in thick, 3-row core for maximum cooling, no matter where ever you drive your Chaser. The Mishimoto 1996-2001 Toyota Chaser Performance Aluminum Radiator is available in a polished finish and includes the Mishimoto Lifetime Warranty for a worry-free installation.
- Full aluminum construction including durable, TIG-welded end tanks
- 107-percent increase in core volume over stock
- Features a three-row, 2.2-in thick, efficiently brazed aluminum core
Attributes:
- Brand Name: Mishimoto
- GTIN: 00811580036286
- Core Finish: Uncoated
- Core Height: 0
- Core Length: 0
- Core Material: Aluminum
- Core Row Quantity: 3
- Core Thickness: 2.2
- Down Flow Or Cross Flow Type: Down Flow
- Drain Plug Included: Yes
- Drain Plug Thread Size: M12 - 1.5
- Fluid Capacity: 2.3
- Inlet Diameter: 0
- Inlet Location: Top Left
- Install Difficulty: 3
- Outlet Diameter: 0
- Outlet Location: Bottom Right
- Overall Height: 17.7
- Overall Length: 28
- Overall Width: 4.3
- Radiator Cap Included: Yes
- SellingPoint01: Direct fit for the 1996-2001 Toyota Chaser JZX100
- SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
- SellingPoint03: 107-percent increase in core volume over stock
- SellingPoint04: Features a three-row, 2.2-in thick, efficiently brazed aluminum core
- SellingPoint05: Provides efficient temperature reduction on the street, track, and drag strip
- SellingPoint06: Increased fluid capacity and optimal heat dissipation
- SellingPoint07: Efficient temperature regulation for both stock and modified vehicles
- SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- SellingPoint09: Mishimoto Lifetime Warranty
- SellingPoint10: N/A
- SellingPoint11: N/A
- SellingPoint12: N/A
- SellingPoint13: N/A
- SellingPoint14: N/A
- SellingPoint15: N/A
- TechSpec Applications: 1996-2001 Toyota Chaser--2000-2007 Toyota Mk.II
- TechSpec Chassis Codes: JZX100--JZX110
- TechSpec Core Height (in): N/A
- TechSpec Core Length (in): N/A
- TechSpec Core Thickness (in): 2.2
- TechSpec DPI: N/A
- TechSpec Drain Plug Thread Size: N/A
- TechSpec Engine Codes: 1G-FE--1JZ-GTE--2JZ-GE
- TechSpec Fluid Capacity (gal): 2.3
- TechSpec Includes: Aluminum Radiator-- Mishimoto Radiator Cap-- Magnetic Drain Plug--Mishimoto Lifetime Warranty
- TechSpec Inlet (in): N/A
- TechSpec Material: Aluminum
- TechSpec Note: This item is for Manual Transmission vehicles. Vehicles equipped with an automatic transmission will require the installation of a Mishimoto Universal Transmission Cooler Kit.
- TechSpec Outlet (in): N/A
- TechSpec Overall Height (in): 17.7
- TechSpec Overall Length (in): 28
- TechSpec Overall Width (in): 4.3
- TechSpec Rows: 3
- Transmission Oil Cooler Fitting Type: N/A
- Transmission Oil Cooler Included: Yes
Extended Information:
- Country of Origin: CN
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 31.7 x 23.3 x 7.8 inches
- Weight: 20.7 POUNDS
